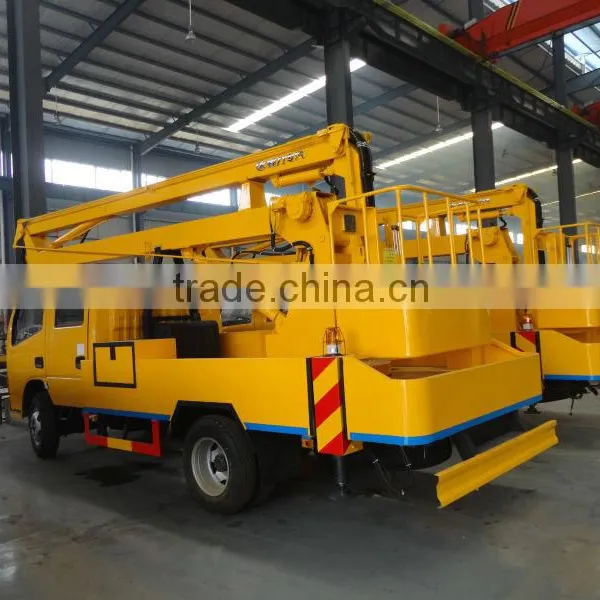

dongfeng 4x2 12-18m hydraulic beam lifter truck sale

AERIAL PLATFORM TRUCK

#

Descriptions

Specifications and types

General

Truck Brand

Chengliwei (our brand)

Chassis Brand

Dongfeng

Approx. Dimension

8250*2320*3500 mm

GVW./Kerb Wt.

7490/7295 kg

Cab

Cab Capacity

3 persons' seat

Air Conditioner

Air Conditioner is optional

Chassis

Drive Type

4X2,LHD or RHD

Fuel Type

Diesel

Engine Make & Model

dongfeng  engine

Power

140 Ps / 103 KW

Displacement

4500 ml

Emission Standard

Euro II or EURO III or Euro IV

Wheelbase/No.of axle

3800 mm / 2

Tyre Specfication

8.25-16,7.50-16,8.25R16,7.50R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

80 km/h

Paint

Automative metallic paint

Superstructure

Max working height

16-18M

Working cage

200kg capacity

Beam

Hydraulic control

Slewing

360 continuous rotation

Equipments

Four hydraulic outriggers are equipped, stable and reliable

Dual control system both in the working cage and on the deck.

Safety device: relief valve, balance valve, double way hydraulic lock ,motor emergency system

Insulated aerial platform ,hoist hook with cables optional
