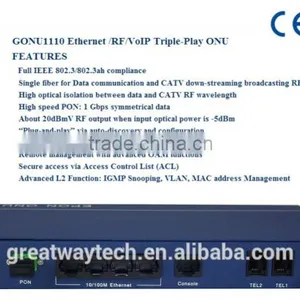

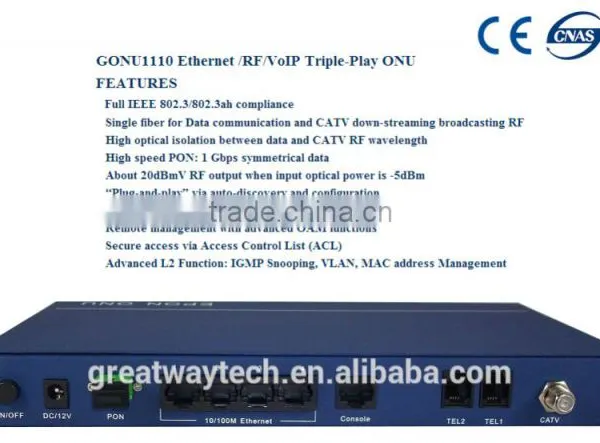

GONU1110 Ethernet /RF/VoIP Triple-Play ONU
GONU1110 is designed to offer one CATV residential RF at 1550nm input optical wavelength along with the high speed GEPON interactive data and VoIP services at 1310nm/1490nm over one single mode fiber. It supplies Gigabit broadband service to a connected subscriber’s gateway or computers. GONU1110 provides one 1000MHz CATV broadcasting analog or digital TV RF, two VoIP phone ports and four 10/100M Base-T Ethernet ports with advanced L2 functionality for Data and IPTV video services.
FEATURES
l Full IEEE 802.3/802.3ah compliance
l Single fiber for Data communication and CATV down-streaming broadcasting RF
l High optical isolation between data and CATV RF wavelength
l High speed PON: 1 Gbps symmetrical data
l About 20dBmV RF output when input optical power is -5dBm
l “Plug-and-play” via auto-discovery and configuration
l Advanced QoS functions
l Remote management with advanced OAM functions
l Secure access via Access Control List (ACL)
l Advanced L2 Function: IGMP Snooping, VLAN, MAC address Management
VoIP POTS
l VoIP module by Infineon solo chip with high density SOC
l Support three kinds of VoIP protocol: H248/MGCP/SIP
l Support three types of compression calculation method ITU-T G711(64Kbps), G723.1 (5.3Kbps/6.3Kbps), G729(8Kbps); A/u configuration available
l Support echo cancellation ITU-T G168-2002 with the longest echo cancellation 64ms.
l Support three types of fax, such as transparent transmission under high/low speed mode T30/T38
l Support Modem (56Kbps) dialing access
l Support DTMF detection and generation
l Produce various signal tone, including dialing tone, busy tone, call back tone and bee tone etc.
l Support twice-dialing and colour ring service
l Support RFC2833, redundant RFC2833, shake bell recognition, MD5 encryption authorization.
l Support 2 POTS ports dial the third party at the same time and talking among three parties.
l Support POTS external line 112 test function (test power voltage and power resistance)
l Support IEEE802.1Q, QinQ function
l Support IEEE802.1p quadruple QoS priority function
l Comply with ITU-T K20 requirement
l 7*24hour calling loss ≤ 0.01%
l 220VAC power cable contact automatic protection function
Ethernet and CATV
Optical Link Performance | |
Optical Fiber |
Single Mode |
Fiber Connector |
SC/APC |
Optical Return Loss |
<55dB |
Output Power at 1310nm |
-1~ +3 dBm |
Receiving Sensitivity at 1490nm |
-24 dBm |
Receiving Sensitivity at 1550nm |
-3~-8dBm |
Wavelength for data |
TX: 1310 nm RX: 1490 nm |
Wavelength for CATV RF |
RX: 1550nm |
Optical Isolation (1310nm/1490nm to 1550nm) |
34dB |
Optical Isolation (1550nm to 1490nm) |
15dB |
Optical Insertion Loss |
<1dB (1310nm/1490nm/1550nm) |
Ethernet | |
Data Rate |
1Gbps uplink and downlink |
Maximum Splitting |
1:32 (20Km fiber reach) 1:64 (10Km fiber reach) |
Ethernet Port |
Four 10/100Mb/s RJ-45 Ports |
Ethernet Cable |
CAT-5 or CAT-6 (100 m) |
Standards |
IEEE 802.3ah IEEE 802.1p 802.1Q 802.1d 802.1w IEEE 802.3ad |
Management |
Embedded OAM Protocol, SNMP, Remote software upgrading |
CATV RF Output | |
RF Bandwidth |
5~1000MHz (2150MHz on request) |
Bandwidth Flatness |
1.5dB |
RF Output Levle |
20dBmV@-5dBm |
RF Return Loss |
16dB |
CNR |
47dB (-5dBm optical input) |
CSO |
65dB (77 NTSC Channels) |
CTB |
65dB (77 NTSC Channels) |
RF Connector |
American Female |
Environment | |
Working Temperature |
- 5 ºC ~ 55 ºC |
Storage Temperature |
-40 ºC ~ 80 ºC |
Humidity |
5% ~ 95% Non-condensing |
RoHS |
Compatible |
Physical | |
Dimension |
260mm(L) × 160mm(W) × 40mm (H) |
Weight |
1.2Kg |
Power Supply | |
Power |
12V 1.5A DC Adaptor, UL or CE certified |
Power Consumption |
<15 W |
Ordering Information:
GONU1110 Four Ethernet Port + CATV RF + 2 VoIP Triple-Play GEPON ONU
