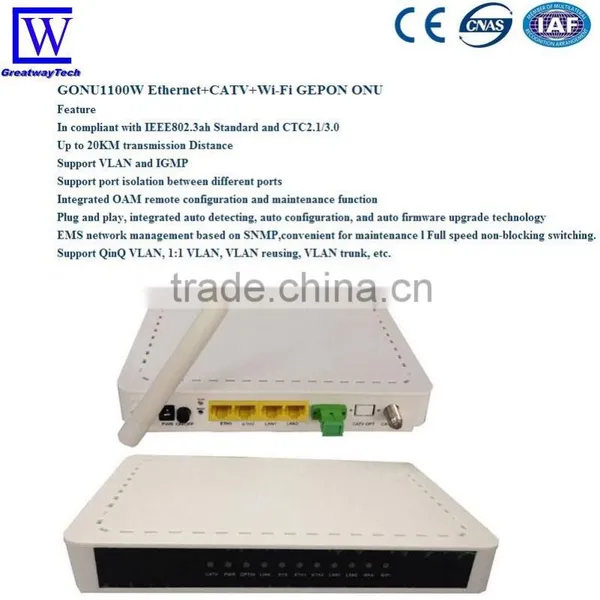

GONU1100W Ethernet+CATV+Wi-Fi GEPON ONU
GONU1100W is designed to offer one CATV residential RF at 1550nm input optical wavelength along with the high speed GEPON interactive data at 1310nm/1490nm over one single mode fiber. It supplies Gigabit broadband service to a connected subscriber’s gateway or computers. GONU1100 provides one 1000MHz CATV broadcasting analog or digital TV RF, four 10/100M Base-T Ethernet ports with Wi-Fi for Data and IPTV video services.
Feature
l In compliant with IEEE802.3ah Standard and CTC2.1/3.0
l Up to 20KM transmission Distance
l Support VLAN and IGMP
l Support port isolation between different ports
l Integrated OAM remote configuration and maintenance function
l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
l EMS network management based on SNMP ,convenient for maintenance
l Full speed non-blocking switching.
l Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
l Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
l Support auto polarity detection of Ethernet ports (AUTO MDIX).
l Integrated IEEE802.1p QoS with four level priority queues.
l Support IPv4 IGMP snooping and IPv6 MLD snooping.
CATV Functions
l Wavelength: 1550 +/- 10nm
l Optical return loss: >45dB
l Input optical power: -8dBm~+2dBm
l RF frequency: 47MHz~1000MHz
l RF output level: 75~80dBuV
l CNR: >46dB, CSO: >58dBc, CTB: >58dBc
l RF output return loss: >14dB
l RF impedance: 75Ohm
l AGC function optional
Specification
Interface |
PON Interface |
1 GEPON optical interface |
User Interface |
4*10/100Mauto-negotiation |
|
|
1 RF output Female F-Type Connector | ||
Power Interface |

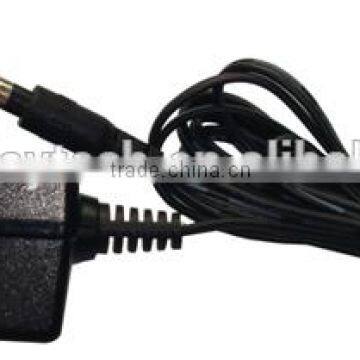

12V DC Power supply An external 12V 1A AC/DC power supply adapter |
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
|
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG, VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support RSTP |
|
Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management |
Status monitor, Configuration management, Alarm management, |
|

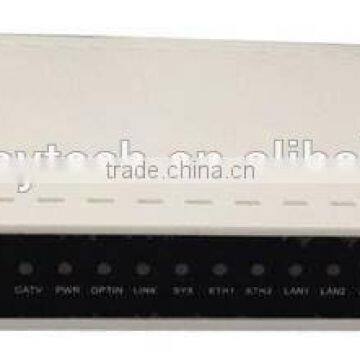

Indicator |
LED Indicator |
PWR, SYS,PON, LAN1~LAN4, CATV,WIFI |
Physical |
Shell |
Plastic casing |
Power |
External 12V 1A AC/DC power supply adapter Power consumption: <6W |
|
|
Dimension Weight |
Dimension: 200mm(L) x 140mm(W) x 28mm (H) Weight: 0.4kg |
|
Environmental |
Operating temperature: 0 to 50 ºC |
WIFI Specification
Performance parameters |
Operating Mode |
Router or bridge |
Throughput |
IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps |
|
Frequency |
2.412 ~ 2.472 GHz |
|
Channel |
13*Channel, configurable to meet the standard of USA, Canada,Japan and China |
|
Modulation |
DSSS , CCK and OFDM |
|
Coding |
BPSK, QPSK, 16QAM and 64QAM |
|
RF receive sensitivity |
802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps |
|
RF output lever |
802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps |
|
Encryption Mode |
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
