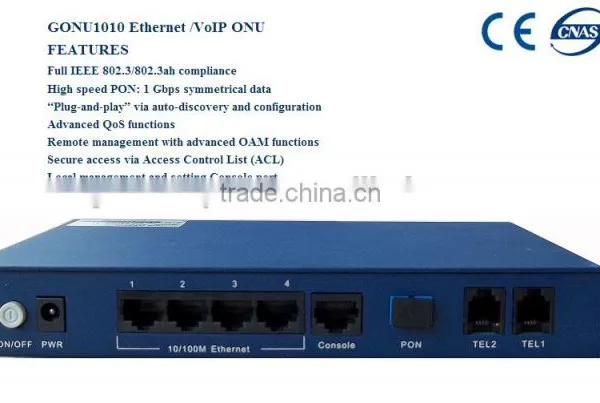

GONU1010 Ethernet /VoIP ONU
GONU1010 is designed to offer the high speed GEPON interactive data and VoIP services at 1310nm/1490nm over one single mode fiber. It supplies Gigabit broadband service to a connected subscriber’s gateway or computers. GONU1010 provides two VoIP phone ports and four 10/100M Base-T Ethernet ports with advanced L2 functionality for Data and IPTV video services.
FEATURES
l Full IEEE 802.3/802.3ah compliance
l High speed PON: 1 Gbps symmetrical data
l “Plug-and-play” via auto-discovery and configuration
l Advanced QoS functions
l Remote management with advanced OAM functions
l Secure access via Access Control List (ACL)
l Local management and setting Console port
l Advanced L2 Function: IGMP Snooping, VLAN, MAC address Management
VoIP POTS
l VoIP module by Infineon solo chip with high density SOC
l Support three kinds of VoIP protocol: H248/MGCP/SIP
l Support three types of compression calculation method ITU-T G711(64Kbps), G723.1 (5.3Kbps/6.3Kbps), G729(8Kbps); A/u configuration available
l Support echo cancellation ITU-T G168-2002 with the longest echo cancellation 64ms.
l Support three types of fax, such as transparent transmission under high/low speed mode T30/T38
l Support Modem (56Kbps) dialing access
l Support DTMF detection and generation
l Produce various signal tone, including dialing tone, busy tone, call back tone and bee tone etc.
l Support twice-dialing and colour ring service
l Support RFC2833, redundant RFC2833, shake bell recognition, MD5 encryption authorization.
l Support 2 POTS ports dial the third party at the same time and talking among three parties.
l Support POTS external line 112 test function (test power voltage and power resistance)
l Support IEEE802.1Q, QinQ function
l Support IEEE802.1p quadruple QoS priority function
l Comply with ITU-T K20 requirement
l 7*24hour calling loss ≤ 0.01%
l 220VAC power cable contact automatic protection function
Ethernet
Optical Link Performance | |
Optical Fiber |
Single Mode |
Fiber Connector |
SC/UPC |
Optical Return Loss |
<45dB |
Output Power at 1310nm |
-1~ +3 dBm |
Receiving Sensitivity at 1490nm |
-24 dBm |
Wavelength for data |
TX: 1310 nm RX: 1490 nm |
Ethernet | |
Data Rate |
1Gbps uplink and downlink |
Maximum Splitting |
1:32 (20Km fiber reach) 1:64 (10Km fiber reach) |
Ethernet Port |
Four 10/100Mb/s RJ-45 Ports |
Ethernet Cable |
CAT-5 or CAT-6 (100 m) |
Standards |
IEEE 802.3ah IEEE 802.1p 802.1Q 802.1d 802.1w IEEE 802.3ad |
Management |
Embedded OAM Protocol, SNMP, Remote software upgrading |
Environment | |
Working Temperature |
- 5 ºC ~ 55 ºC |
Storage Temperature |
-40 ºC ~ 80 ºC |
Humidity |
5% ~ 95% Non-condensing |
RoHS |
Compatible |
Physical | |
Dimension |
202mm(L) × 142mm(W) × 30mm (H) |
Weight |
450g |
Power Supply | |
Power |
12V 1.5A DC Adaptor, UL or CE certified |
Power Consumption |
<10 W |
Ordering Information:
GONU1010 Four Ethernet Port + 2 VoIP GEPON ONU
