GAES series Multi Digital Audios Optical Equipment/digital audio fiber optic transmission
- 10000 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Greatwaytech | Model Number: | GAES digital audio fiber optic transmission |
Product Description

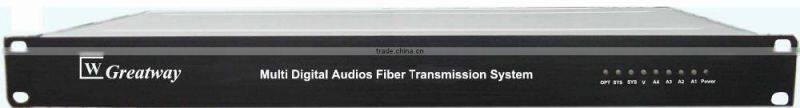

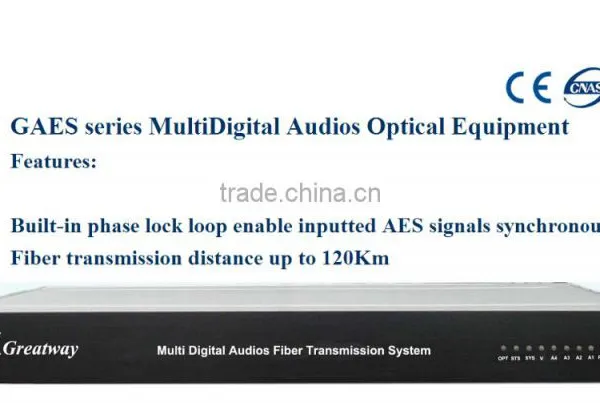

GAES series MultiDigital Audios Optical Equipment
The GAES series digital audio fiber optic transmission product is made up of Greatway GAEST fiber optic transmitter and GAESR optical receiver, transmitting 1 channel, 2 channel, 4 channel, 6 channel or 8 channel AES/EBU digital audio signals over one fiber for distance up to 120Km.
Features:
l Audio input and output are AES/EBU, compatible with AES3, S/PDIF
l Audio input compatible with AES with multi frequencies
l Built-in phase lock loop enable inputted AES signals synchronous
l Fiber transmission distance up to 120Km

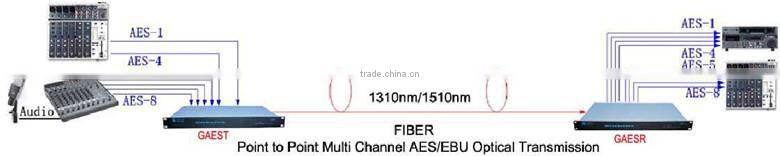

l System topology supports point to point and point to multi-point
Specifications
Audio Input | |||
Audio Channel | 1/2/4/6/8 | ||
Audio Level | 0.2~7.0 Vp-p | ||
AES Frequency | 32KHz~108KHz | ||
Input Impedance | 110Ω (Balanced) | 75Ω (Unbalanced) | |
Connector | XLR | BNC | |
Audio Output | |||
AES Output Channel | 1/2/4/6/8 | ||
Output Level | 5 Vp-p | ||
AES Frequency | 48 KHz (or requested) | ||
Jitter | <0.005UIP-P | ||
Rise/Down Time | <25ns | ||
Output Impedance | 110Ω (Balanced) | 75Ω (Unbalanced) | |
Connector | XLR | BNC | |
Optical Parameter | |||
Wavelength | 1310 nm/1550 nm or CWDM wavelength | ||
TX Output Power | -12dBm~3 dBm | ||
RX Sensitivity | -32dBm~-3 dBm | ||
Fiber Distance | 20Km, 40Km, 60Km, 80Km or 100Km+ | ||
Connector | SC/PC | ||
Operation Temperature | 0~45ºC | ||
Power Supply | AC 95~265V, 50/60Hz | ||
Power Consumption | <20W | ||
Dimension | 430×230×43 (mm) | ||
Ordering Information:
GAES-A-BC-D-E
A: AES audio channel number 1 or 2 or 4 or 6 or 8
BC: Fiber distance 20-20Km, 40-40Km, 60-60Km, 80-80Km, 100-100Km+
D: Optional CWDM wavelengths
E: Specified output AES frequency other than 48KHz
Which transportation method could I select?
Usually the buyer appoints a forwarder and we follow the shipping instructions.
We recommend the freight company such as FedEx, UPS, DHL, TNT etc
Our Services
OEM Manufacturing in China
We can transfer customer products to our cost-effective manufacturing in China. Our R&D team can modify existing products or develop new products based on the requested specifications and designs.
R&D Engineering Capability
Our experienced engineers and technicians work closely together to provide you with optimal production solutions.
Quality Control
We provide excellent QA and QC services to guarantee product performance and consistency.
According to client's order quantity Our service:
1.Good Reply :Your inquiry related to our products or price will be replied within 24 hours.
2.OEM & ODM:Your any idea on telecom we can help you to design and put it into products.
3.Warranty: 1-years warranty
4.Transportation : FedEx, UPS, DHL, TNT etc
Greatway Technology Co., Ltd. is a leading fiber optic transmission equipment manufacturer in China for HD Video, High Speed Internet and Broadband RF. As a "design house and factory", Greatway offers Broadcasting Class Audio/Video Fiber Link, 1200MHz Broadcast and Narrowcast CATV RF Fiber Link, Docsis over PON (D-PON), Satellite L-Band RF fiber to the home (LBAND-PON), GPON/GEPON/WDM-PON, EoC (Ethernet over Coax), 1080P 60P HD-SDI Fiber Link, fiber optic active and passive components.
With experience providing high quality products in Telecom and CATV industries since 1993, Greatway’s expertise lies in the development, design, production, engineering and prototyping customer design products, OEM and ODM. We provide effective Outsourcing Solutions for the customized needs. Teams up with highly qualified partners, Greatway is able to deliver leading edge cost effective solutions to serve customers successfully.
What is Greatway?
Greatway Technologies Co., Ltd. is a leading HD Video, High Speed Internet and Broadband RF over fiber products provider in China.
We are engaged in TV, Ethernet and VoIP triple-play products based on CATV and GEPON network.
What does Greatway offer?
We offer the whole range of cost-effective CATV, Ethernet over fiber products with excellent quality.
You can find them just clicking the or http://greatwaytech.en.china.cn
What are your working hours?
Monday-Friday, 8:30-17:45 (Beijing time, GMT+08:00).
How do I send an inquiry?
The most efficient way is to forward your inquiry to our e-mail address in "contact us" page, or contact us on TradeManager,Skype
Please, input your name, country, e-mail, phone, product specifications and desired quantity. A designated manager will get back to you within 24 hours.
Can I get a lower price?
OK, that's no porblem. I know the price is the most important part to the customer.
We could discuss it based on the order quantity. As the manufacturer, we also have the absolute confidence to offer the best price to you.
What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole CATV FTTH network solution and all equipments needed in this solution.
Could you give us help on the EOC/CATV solution?
OK, it is our pleasure to help you. We not only provide equipments needed in CATV FTTH solution,
But also offer the technical support about it if the customer need it. And you only need tell us the details of your network application.
For Trade Terms,such as payment and leadtime.
Payment Terms:T/T 100% in advance,Paypal and Western Union for the sample order
Price Terms:EXW Shenzhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,3-5work days; Bulk order 15-20work days(after your payment )
What is your product warranty policy?
All Greatway products carry a 12-month warranty.
What shall I do if I encounter a problem with products bought from you?
Please, don’t open or try to fix the problem yourself.
Contact Greatway immediately and submit inspection report or problem description. We will do our best to help you solve the problem.
Can I become an exclusive distributor of Greatway products in my area?
Yes, it is possible if we don’t already have a representative in your country (region).
The best start is to prove your good intentions with several regular orders over a period of time.
The beneficiary will always be “Greatway Technology Co., Ltd.”.
