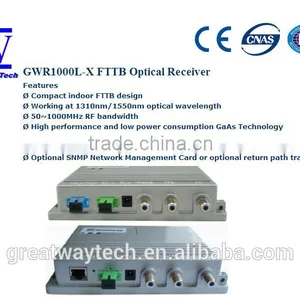

GWR1000L-X FTTB Optical Receiver
GWR1000L-X optical receiver converts the optical signal from the headend into CATV RF.
GWR1000L-X is designed for indoor Fiber to the Building (FTTB) application. The compact housing
includes optical receiving unit with microprocessor controlled RF AGC, RF amplifier, optional
network management card or optional return path transmitter.
Features
Ø Compact indoor FTTB design
Ø Working at 1310nm/1550nm optical wavelength
Ø 50~1000MHz RF bandwidth
Ø High performance and low power consumption GaAs Technology
Ø RF AGC maintaining a stable RF output
Ø Dual RF outputs and one -20dB test port
Ø Optional SNMP Network Management Card or optional return path transmitter
Specifications
|
Item |
Parameter |
Notes |
Fiber Optics | |||
1 |
Receiving Power |
-8 ~ +2 dBm |
|
2 |
Recommended Power |
-6 ~ -+1 dBm |
AGC Effective Range |
3 |
Optical Return Loss |
>50 dB |
|
4 |
Optical Wavelength |
1100 ~ 1600 nm |
|
5 |
Optical Connector |
FC/APC or SC/APC |
|
RF | |||
6 |
Frequency Range |
45~862 MHz |
|
7 |
Flatness |
±1.0 dB |
|
8 |
Return Loss |
³16 dB |
|
9 |
Output Level |
Dual RF ports, Each ³40dBmV |
6dB Attenuation Pad Optional |
10 |
Equalization |
0dB |
6dB Equalization Pad Optional |
11 |
C/N(dB) |
³46 |
See test conditions next. |
12 |
C/CSO(dB) |
³60 |
|
13 |
C/CTB(dB) |
³60 |
|
14 |
Connector |
American F |
|
15 |
Resistance |
75W |
|
Environment | |||
16 |
Power Consumption |
£10W |
|
17 |
Power Supply |
100~240V AC, 50/60Hz |
|
18 |
Humidity |
Maximum 95%, non-condensing |
|
19 |
Working Temperature |
0~+50°C |
|
20 |
Dimension |
190×108×75 (mm) |
|
21 |
Weight |
2Kg |
|
GWR1000L-2 FTTB Optical Receiver Tested Performance (0dB attenuation and 0dB slop)
Input Optical Power |
-1dBm |
-2dBm |
-3dBm |
-4dBm |
-5dBm |
-6dBm |
CNR(dB) |
50.9 |
49.5 |
48.9 |
48.3 |
46.8 |
45.7 |
CSO(dBc) |
68.7 |
63.6 |
65.8 |
64.7 |
61.3 |
65.7 |
CTB(dBc) |
65.1 |
65.2 |
65.2 |
65.9 |
64.4 |
63.6 |
RF Output 1 (dBmV) |
42.1 |
42. 0 |
42.6 |
42.8 |
42.6 |
42.1 |
RF Output 2 (dBmV) |
42.3 |
42.3 |
42.9 |
42.2 |
42.9 |
42.4 |
Test condition: Input 59 PAL-D channels or 77 NTSC channels at the bandwidth of 550MJHz to a standard transmitter, where the standard transmitter is followed by 10Km fiber, an adjustable attenuator and GWR1000L optical receiver. Measure the CNR, CTB, CSO and each port RF level when the optical input power is -1dBm/-2dBm/-3dBm/-4dBm/-5dBm/-6dB.
Ordering Information
GWR1000L-X FTTB CATV Optical Receiver
X(Option): 2_Indoor optical receiver without return path transmitter and management card
N_Indoor Optical receiver without return path transmitter and with management card
R_Indoor Optical receiver with return path transmitter and without management card
According to client's order quantity Our service:
1.Good Reply :Your inquiry related to our products or price will be replied within 24 hours.
2.OEM & ODM:Your any idea on telecom we can help you to design and put it into products.
3.Warranty: 1-years warranty
4.Transportation : FedEx, UPS, DHL, TNT etc
What is Greatway?
Greatway Technologies Co., Ltd. is a leading HD Video, High Speed Internet and Broadband RF over fiber products provider in China.
We are engaged in TV, Ethernet and VoIP triple-play products based on CATV and GEPON network.
What does Greatway offer?
We offer the whole range of cost-effective CATV, Ethernet over fiber products with excellent quality.
You can find them just clicking the or https://img13.fr-trading.com
What are your working hours?
Monday-Friday, 8:30-17:45 (Beijing time, GMT+08:00).
How do I send an inquiry?
The most efficient way is to forward your inquiry to our e-mail address in "contact us" page, or contact us on TradeManager,Skype
Please, input your name, country, e-mail, phone, product specifications and desired quantity. A designated manager will get back to you within 24 hours.
Can I get a lower price?
OK, that's no porblem. I know the price is the most important part to the customer.
We could discuss it based on the order quantity. As the manufacturer, we also have the absolute confidence to offer the best price to you.
What's your company advantage?

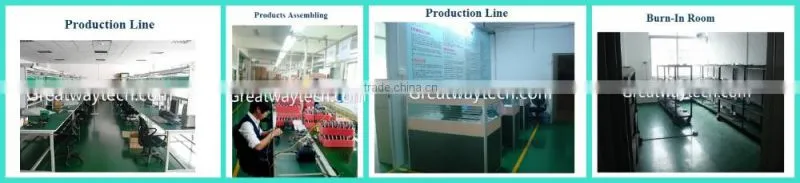

We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole CATV FTTH network solution and all equipments needed in this solution.
Could you give us help on the EOC/CATV solution?
OK, it is our pleasure to help you. We not only provide equipments needed in CATV FTTH solution,
But also offer the technical support about it if the customer need it. And you only need tell us the details of your network application.
For Trade Terms,such as payment and leadtime.
Payment Terms:T/T 100% in advance,Paypal and Western Union for the sample order
Price Terms:EXW Shenzhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,3-5work days; Bulk order 15-20work days(after your payment )
What is your product warranty policy?
All Greatway products carry a 12-month warranty.
What shall I do if I encounter a problem with products bought from you?
Please, don’t open or try to fix the problem yourself.
Contact Greatway immediately and submit inspection report or problem description. We will do our best to help you solve the problem.
Can I become an exclusive distributor of Greatway products in my area?
Yes, it is possible if we don’t already have a representative in your country (region).
The best start is to prove your good intentions with several regular orders over a period of time.
The beneficiary will always be “Greatway Technology Co., Ltd.”.
