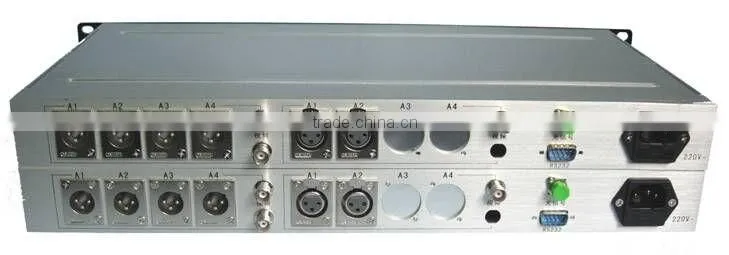

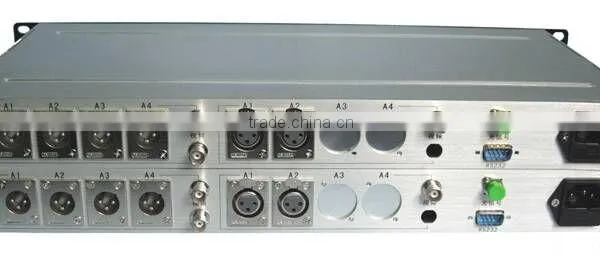

Single Fiber Bi-Direction Analog Video System
By means of single fiber bi-direction technology, GAV-B video system can exchange 1 video, 2 audios or 2 videos, 4 audios or 4 videos, 8 audios over one single mode fiber. The analog A/V conversion is 10bit for video and 20bit for Audio. GAV-B offers a fiber saving solution for broadcasting quality A/V exchange and video conference.
Features:
l Single Fiber Bi-Direction Technology
l 10bit video conversion and 20bit audio conversion
l Wide dynamic video AGC supports 0.6V~1.6V video input level
l Audio output can be balanced/unbalanced auto switching with ESD protection
l RS232 for PTZ control optional
l 10/100M Ethernet Optional
Applications:
Specifications
Video Input |
Audio Input |
||
Video Channel |
1 or 2 or 4 |
Audio Channel |
2 (Standard), 4 or 8 |
Video Level |
0.6~1.6 VP-P |
Max. Audio Level |
17.4 VP-P (+18dBm) |
Video Impedance |
75Ω |
Audio Bandwidth |
20Hz~20 KHz |
Connector |
BNC |
Audio Impedance |
600Ω |
|
|
Connector |
XLR |
Optical Parameter | |||
Wavelength |
1310 nm/1550 nm or CWDM wavelength |
||
TX power |
-12dBm~3 dBm |
||
RX sensitivity |
-29dBm~-3 dBm |
||
Transmission Distance |
20Km, 40Km, 60Km, 80Km |
||
Connector |
SC/PC |
||
Video Output |
Audio Output |
||
Video Channel |
1 or 2 or 4 |
Audio Channel |
2 (Standard), 4 or 8 |
Output Level |
1 VP-P |
Maximum Level |
17.4 VP-P (+18dBm) |
SNR |
>71dB |
SNR |
>86 dB (unweighted) |
Differential Gain |
<1% |
Harmonic Distortion |
<0.2 % |
Differential Phase |
<1º |
Bandwidth |
20Hz~20 KHz @-0.5 dB |
Flatness |
±0.2dB to 5.75MHz |
Audio Channel Isolation |
>90 dB @ 1KHz >90 dB @20KHz |
Lum/Chr Delay |
<10ns |
||
Impedance |
75Ω |
Impedance |
40Ω |
Connector |
BNC |
Connector |
XLR |
RS232 (Optional) |
< 1M bit/s |
||
Ethernet (Optional) |
10/100M Auto Negotiation |
||
Operation Temperature |
0~45ºC |
||
Power Supply |
AC 95~265V, 50/60Hz |
||
Power Consumption |
<30W |
||
Dimension |
430×230×43 (mm) or 430×230×86 (mm) |
||
Ordering Information:
GAVW-B-XY (e.g. GAV48-B-60) Single Fiber Bi-direction Video System
W (AV number): None-1V2A, 24-2V4A, 48-4V8A
X (Fiber distance): 20-20Km, 40-40Km, 60-60Km, 80-80Km
Y (Data Option): None_No Data, D_RS232 Data, E_10/100M Ethernet
