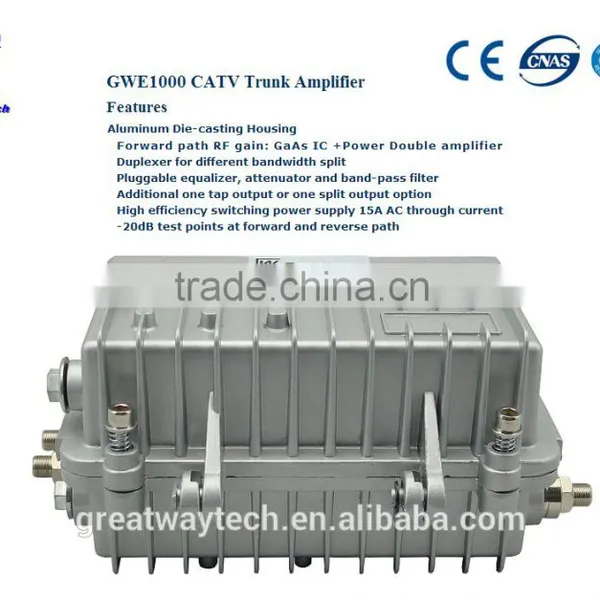

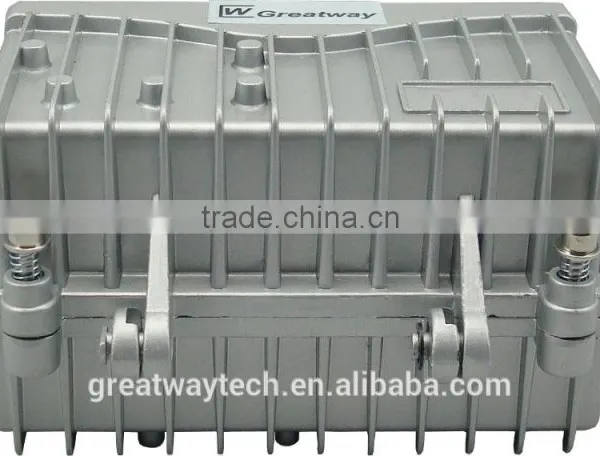

GWE1000 trunk amplifier is a cost-effective amplifier designed for two-day CATV trunk applications. Equipped with reliable switching power supply and surge protection, GWE1000 applies preamplifier and power amplifier, achieving the excellent distortion performance. The amplifier can be empowered by either 60V AC or 220V AC. Besides the main RF output, one additional tap or split RF output is also available.
Features
l Aluminum Die-casting Housing
l Forward path RF gain: GaAs IC +Power Double amplifier
l Duplexer for different bandwidth split
l Pluggable equalizer, attenuator and band-pass filter
l Additional one tap output or one split output option
l High efficiency switching power supply 15A AC through current
l -20dB test points at forward and reverse path
Function Diagram
Specifications
Item |
Parameter |
Forward |
Reverse |
Notes |
1 |
Frequency (MHz) |
**-862 |
5-** |
Bandwidth Split optional |
2 |
Flatness (dB) |
±0.75 |
±0.75 |
|
3 |
Reflection Loss (dB) |
³16 |
³16 |
|
4 |
Gain (dB) |
34 |
0/20 |
One RF Output |
5 |
Full Gain (dB) |
³38 |
³0/20 |
|
6 |
Equalizer (dB) |
0~20 |
0 |
|
7 |
Gain Adjustment (dB) |
0~20 |
|
|
8 |
Noise (dB) |
<9 |
|
|
9 |
Test Point (dB) |
-20 |
|
|
10 |
Test Point Flatness (dB) |
±1 |
|
|
11 |
AC Current (A/AC) |
15 |
|
Max. through current |
12 |
Impedance (W) |
75 |
|
All ports |
13 |
Hum Modulation (dB) |
<-66 |
|
60 V AC |
14 |
C/CSO (dB) |
72 |
|
One output 42dBmV |
15 |
C/CTB (dB) |
76 |
N/A |
|
Power Supply
Power input: AC 90V~265V (220V version) or 35V~95V (60V version)
Power Consumption: £10W
Environment
Working Temperature: -20°C~+60°C
Storage Temperature: -40°C~+85°C
Humidity: Maximum 95% non-condensing
Physical Parameters
Dimensions: 200×110×110 (mm)
Weight: <3 kg
Customer Interface
RF connection: Metric F or American F
RF Monitoring: Metric F or American F
Ordering Information:
GWE1000-P-S Two-way Trunk Amplifier
P (Power Supply): 60_60V AC; 220_220V AC
S (Duplexer): None_one way amplifier;
42/54_5~42/54~862MHz Duplexer; 65/87_5~65/87~862MHz Duplexer
