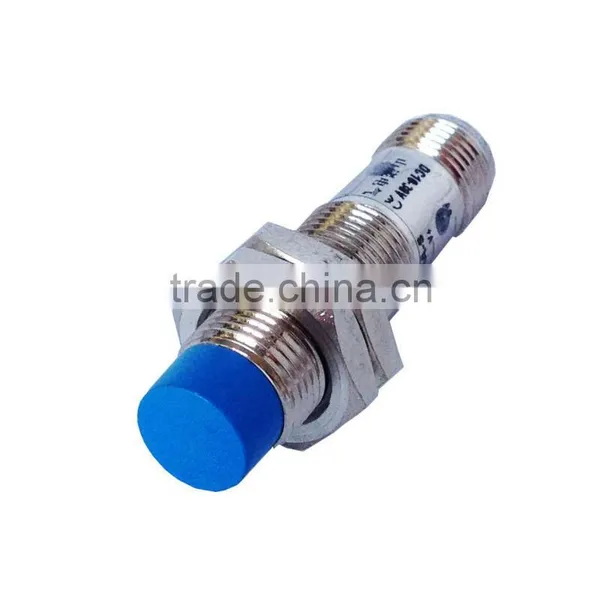

M12 Short Unshielded Non Flush Inductive FProximity Sensor Switch With M12 Connector, M12 Connector AC Proximity Sensor Switch

Zhongshan IBEST Electrical Co., Ltd.
M12 Short Unshielded Non Flush Inductive FProximity Sensor Switch With M12 Connector, M12 Connector AC Proximity Sensor Switch thumbnail-1
M12 Short Unshielded Non Flush Inductive FProximity Sensor Switch With M12 Connector, M12 Connector AC Proximity Sensor Switch photo-1
US$ 4 - 6 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
IPSI-12PO4A-S; IPSI-12POC4A-S;IPS-12NO4A-S; IPS-12NOC4A-S;
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number IPSI-12PO4A-S; IPSI-12POC4A-S;IPS-12NO4A-S; IPS-12NOC4A-S;
Max. Current 100mA
Max. Voltage DC 10-30V

Specifications

*Diameter: 12mm; short body 40mm.
*DC 3-wire(10-30V DC)
*Connection mode: 3 pins or 4 pins.

Code: M12 Short Housing Inductive Sensor
Features:
*Diameter: 12mm; short body.
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 3 pin connector ;  4 wire or 4 pin connector
*Mounting distance: shielded (2mm), unshielded(4mm)
*With LED operation indicate lamp, easily identifiable
*Brass chrome plated, proof of oil, water acid, alkaline
*Standard sensing object: iferrous metals;
*Protection rate: IP67, water resistant
*Over-current protection
*Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc
1. Product model is named:

2. Ordering Code:
Model and TypeOutput typeMounting distanceCureent outputPower supplyConnector modelBuy
IPS-12PO4A-S PNP NO 4mm,unshielded ≤100mA DC 10~30V DC 3 Wire
IPS-12PC4A-S PNP NC 4mm,unshielded ≤100mA DC 10~30V DC 3 Wire
IPS-12POC4A-S PNP NO+NC 4mm,unshielded ≤100mA DC 10~30V DC 4 Wire
IPS-12NO4A-S NPN NO 4mm,unshielded ≤100mA DC 10~30V DC 3 Wire
IPS-12NC4A-S NPN NC 4mm,unshielded ≤100mA DC 10~30V DC 3 Wire
IPS-12NOC4A-S NPN NO+NC 4mm,unshielded ≤100mA DC 10~30V DC 4 Wire
IPS-12PO2A-S PNP NO 2mm,shielded ≤100mA DC 10~30V DC 3 Wire
IPS-12PC2A-S PNP NC 2mm,shielded ≤100mA DC 10~30V DC 3 Wire
IPS-12POC2A-S PNP NO+NC 2mm,shielded ≤100mA DC 10~30V DC 4 Wire
IPS-12NO2A-S NPN NO 2mm,shielded ≤100mA DC 10~30V DC 3 Wire
IPS-12NC2A-S NPN NC 2mm,shielded ≤100mA DC 10~30V DC 3 Wire
IPS-12NOC2A-S NPN NO+NC 2mm,shielded ≤100mA DC 10~30V DC 4 Wire
IPSI/L-12PO2A-S PNP NO 2mm,shielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC2A-S PNP NC 2mm,shielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC2A-S PNP NO+NC 2mm,shielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO2A-S NPN NO 2mm,shielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC2A-S NPN NC 2mm,shielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC2A-S NPN NO+NC 2mm,shielded ≤100mA AC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12PO4A-S PNP NO 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC4A-S PNP NC 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC4A-S PNP NO+NC 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO4A-S NPN NO 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC4A-S NPN NC 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC4A-S NPN NO+NC 4mm,unshielded ≤100mA DC 10~30V M12 Connector (I:straight/L:90 degree)
