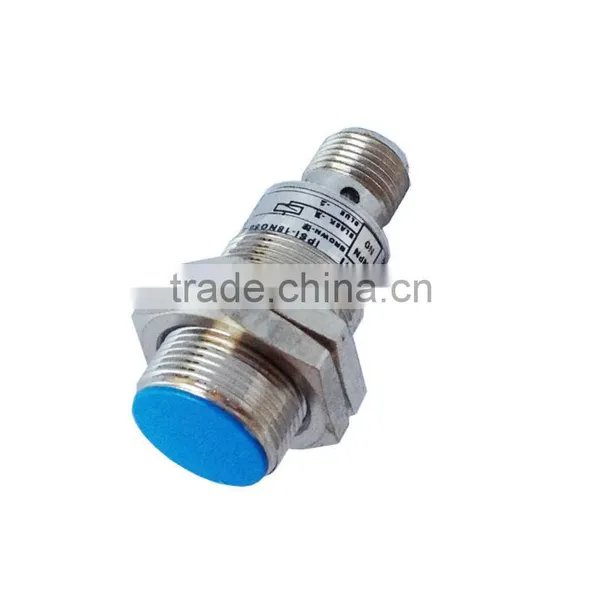

M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body)

M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body) thumbnail-1
M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body) thumbnail-2
M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body) photo-1
M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body) photo-2
US$ 5 - 8 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
IPSI-18PO5B-S; IPSI-18POC5B-S; IPSI-18NO5B-S; IPSI-18NOC5B-S
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZhongShan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number IPSI-18PO5B-S; IPSI-18POC5B-S; IPSI-18NO5B-S; IPSI-18NOC5B-S
Usage Position Sensor
Theory Inductance Sensor
Output Other, NPN, PNP

Specifications

Features:
*Diameter: 18mm; short body 40mm.
*3 pins connector (10-30V DC); 4 pins connector (10-30V DC)
*PNP or NPN.

Code:  M18 Short Housing Inductive Sensor
Features:
*Diameter: 18mm; short body.
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 3 pin connector ;  4 wire or 4 pin connector
*Mounting distance: shielded (5mm), unshielded(8mm)
*With LED operation indicate lamp, easily identifiable
*Brass chrome plated, proof of oil, water acid, alkaline
*Standard sensing object: iferrous metals;
*Protection rate: IP67, water resistant
*Over-current protection
*Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc
1. Product model is named:

2. Ordering Code:
Model and Type Output type Mounting distance Cureent output Power supply Connector model Buy
IPS-18PO5B-S  PNP NO  5mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18PC5B-S  PNP NC  5mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18POC5B-S  PNP NO+NC  5mm,shielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-18NO5B-S  NPN NO  5mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18NC5B-S  NPN NC  5mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18NOC5B-S  NPN NO+NC  5mm,shielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-18PO8B-S  PNP NO  8mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18PC8B-S  PNP NC  8mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18POC8B-S  PNP NO+NC  8mm,unshielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-18NO8B-S  NPN NO  8mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18NC8B-S  NPN NC  8mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-18NOC8B-S  NPN NO+NC  8mm,unshielded  ≤200mA  DC 10~30V  DC 4 Wire
IPSI/L-18PO5B-S  PNP NO  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18PC5B-S  PNP NC  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18POC5B-S  PNP NO+NC  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NO5B-S  NPN NO  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NC5B-S  NPN NC  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NOC5B-S  NPN NO+NC  5mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18PO8B-S  PNP NO  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18PC8B-S  PNP NC  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18POC8B-S  PNP NO+NC  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NO8B-S  NPN NO  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NC8B-S  NPN NC  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-18NOC8B-S  NPN NO+NC  8mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
M18 Flush Shielded Proximity Switch Sensor With M12 Connector, M18 Connector Type NPN PNP AC Proximity Switch Sensor(Short Body)
