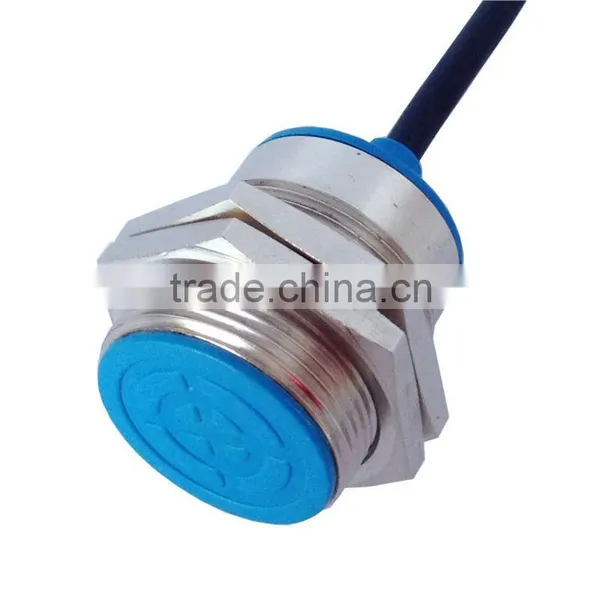

M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body)

M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) thumbnail-1
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) thumbnail-2
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) thumbnail-3
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) photo-1
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) photo-2
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch With M12 Connector (Short Body) photo-3
US$ 7 - 10 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
IPSI-30PO15B-S, IPSI-30POC15B-S; IPSI-30NO15B-S, IPSI-30NOC15B-S
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number IPSI-30PO15B-S, IPSI-30POC15B-S; IPSI-30NO15B-S, IPSI-30NOC15B-S
Usage Position Sensor
Theory Inductance Sensor
Output Other, NPN, PNP

Specifications

*Diameter: 30mm; short body 43mm
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 4 wire


Click to enlarge
Code:  M30 Short Housing Inductive Sensor
Features:
*Diameter: 30mm; short body.
*DC 3-wire(10-30V DC); DC 4-wire(10-30V DC)
*Connection mode: 3 wire or 3 pin connector ;  4 wire or 4 pin connector
*Mounting distance: shielded (10mm), unshielded(15mm)
*With LED operation indicate lamp, easily identifiable
*Brass chrome plated, proof of oil, water acid, alkaline
*Standard sensing object: iferrous metals;
*Protection rate: IP67, water resistant
*Over-current protection
*Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

1. Product model is named:

2. Ordering Code:
Model and Type Output type Mounting distance Cureent output Power supply Connector model Buy
IPS-30PO10B-S  PNP NO  10mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30PC10B-S  PNP NC  10mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30POC10B-S  PNP NO+NC  10mm,shielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-30NO10B-S  NPN NO  10mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30NC10B-S  NPN NC  10mm,shielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30NOC10B-S  NPN NO+NC  10mm,shielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-30PO15B-S  PNP NO  15mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30PC15B-S  PNP NC  15mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30POC15B-S  PNP NO+NC  15mm,unshielded  ≤200mA  DC 10~30V  DC 4 Wire
IPS-30NO15B-S  NPN NO  15mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30NC15B-S  NPN NC  15mm,unshielded  ≤200mA  DC 10~30V  DC 3 Wire
IPS-30NOC15B-S  NPN NO+NC  15mm,unshielded  ≤200mA  DC 10~30V  DC 4 Wire
IPSI/L-30PO10B-S  PNP NO  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30PC10BS  PNP NC  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30POC10B-S  PNP NO+NC  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NO10B-S  NPN NO  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NC10B-S  NPN NC  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NOC10B-S  NPN NO+NC  10mm,shielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30PO15B-S  PNP NO  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30PC15B-S  PNP NC  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30POC15B-S  PNP NO+NC  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NO15B-S  NPN NO  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NC15B-S  NPN NC  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
IPSI/L-30NOC15B-S  NPN NO+NC  15mm,unshielded  ≤200mA  DC 10~30V  M12 Connector (I:straight/L:90 degree)
M30 Connector Type Inductive Proximity Sensor Switch, Non Flush PNP NPN Inductive Sensor Switch with M12 Connector (Short Body)
