Home > Electrical & Electronics > Switch > Other Switches > M12 Connector Short Inductive Proximity Sensor Switch, M12 Proximity Sensor Switch With M12 Connector, M12 AC Proximity Sensor

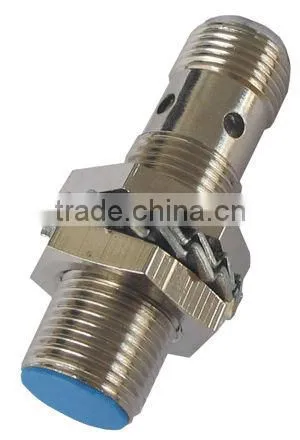

M12 Connector Short Inductive Proximity Sensor Switch, M12 Proximity Sensor Switch With M12 Connector, M12 AC Proximity Sensor

Name: M12 Connector Short Inductive Proximity Sensor Switch, M12 Proximity Sensor Switch With M12 Connector, M12 AC Proximity Sensor
Brand: IBEST
SKU: 109096731
Availability: InStock

M12 Connector Short Inductive Proximity Sensor Switch, M12 Proximity Sensor Switch With M12 Connector, M12 AC Proximity Sensor thumbnail-1

M12 Connector Short Inductive Proximity Sensor Switch, M12 Proximity Sensor Switch With M12 Connector, M12 AC Proximity Sensor photo-1

US$ 4 - 6 MOQ: 5 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IBEST

Model Number:

IPSI-12PO2A-S; IPSI-12POC4A-S;IPS-12PO4A-S; IPS-12POC2A-S;

Contact Supplier Request Quote Chat Now

Zhongshan IBEST Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IBEST

Model Number IPSI-12PO2A-S; IPSI-12POC4A-S;IPS-12PO4A-S; IPS-12POC2A-S;

Max. Current 100mA

Max. Voltage DC 10-30V

Specifications

*Diameter: 12mm; short body 40mm.
*DC 3-wire(10-30V DC)
*Connection mode: 3 pins or 4 pins.

Code:	M12 Short Housing Inductive Sensor
Features:
Diameter: 12mm; short body. DC 3-wire(10-30V DC); DC 4-wire(10-30V DC) Connection mode: 3 wire or 3 pin connector ; 4 wire or 4 pin connector Mounting distance: shielded (2mm), unshielded(4mm) With LED operation indicate lamp, easily identifiable Brass chrome plated, proof of oil, water acid, alkaline Standard sensing object: iferrous metals; Protection rate: IP67, water resistant Over-current protection Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

1. Product model is named:

2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-12PO4A-S	PNP NO	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12PC4A-S	PNP NC	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO4A-S	NPN NO	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NC4A-S	NPN NC	4mm,unshielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12PO2A-S	PNP NO	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12PC2A-S	PNP NC	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO2A-S	NPN NO	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NC2A-S	NPN NC	2mm,shielded	≤100mA	DC 10~30V	DC 3 Wire
IPS-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPSI/L-12PO2A-S	PNP NO	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC2A-S	PNP NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO2A-S	NPN NO	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC2A-S	NPN NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	AC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PO4A-S	PNP NO	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12PC4A-S	PNP NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NO4A-S	NPN NO	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NC4A-S	NPN NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
IPSI/L-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector (I:straight/L:90 degree)
Welcome to contact us! IBEST ELECTRICAL CO.LTD wwwibestchinacom
