Home > Electrical & Electronics > Sensor > Pressure Sensor > M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST)

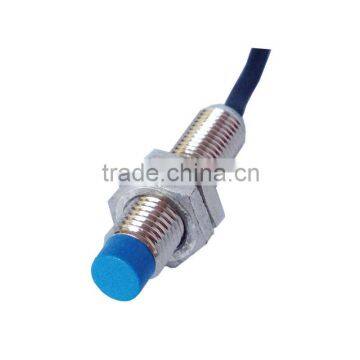

M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST)

Name: M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST)
Brand: IBEST
SKU: 109096767
Availability: InStock

M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST) thumbnail-1

M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST) thumbnail-2

M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST) photo-1

M8 Proximity Switch Sensor, Flush Shielded Proximity Sensor Switch, M8 Short Housing PNP Proximity Switch Sensor (IBEST) photo-2

US$ 6 - 10 MOQ: 5 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IBEST

Model Number:

IPS-8PO1A-S; IPS-8PO2A-S;IPS-8NO1A-S; IPS-8NO2A-S

Contact Supplier Request Quote Chat Now

Zhongshan IBEST Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IBEST

Model Number IPS-8PO1A-S; IPS-8PO2A-S;IPS-8NO1A-S; IPS-8NO2A-S

Usage Position Sensor

Theory Inductance Sensor

Output Other, NPN, PNP

Specifications

*Diameter: 8mm; short body 30mm
*DC 3-wire(10-30V DC)
*Connection mode: 3 wire or 3 pin connector
*Flush 1mm or non flush.

Click to enlarge

Code:	M8 Short Housing Inductive Sensor
Features:
Diameter: 8mm; short body. DC 3-wire(10-30V DC) Connection mode: 3 wire or 3 pin connector Mounting distance: shielded (1mm), unshielded(2mm) With LED operation indicate lamp, easily identifiable Brass chrome plated, proof of oil, water acid, alkaline Standard sensing object: iferrous metals; Protection rate: IP67, water resistant Over-current protection Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc

1. Product model is named:

2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-8NO1A-S	NPN NO	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8NC1A-S	NPN NC	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8NO2A-S	NPN NO	2mm,unsheilded	≤100mA	DC 10-30V	3 Wire
IPS-8NC2A-S	NPN NC	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPSI(L)-8NO1A-S	NPN NO	1mm,shielded	≤100mA	DC 10-30V	M18 Plug-in connector
IPSI(L)-8NC1A-S	NPN NC	1mm,shielded	≤100mA	DC 10-30V	M8 Plug-in conne
IPSI(L)-8NO2A-S	NPN NO	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI(L)-8NC2A-S	NPN NC	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPS-8PO1A-S	PNP NO	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8PC1A-S	PNP NC	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8PO2A-S	PNP NO	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPS-8PC2A-S	PNP NC	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPSI(L)-8PO1A-S	PNP NO	1mm,shielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI(L)-8PC1A-S	PNP NC	1mm,shield	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI(L)-8PO2A-S	PNP NO	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI(L)-8PC2A-S	PNP NC	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
Welcome to contact us! IBEST ELECTRICAL CO.LTD wwwibestchinacom
