Specifications

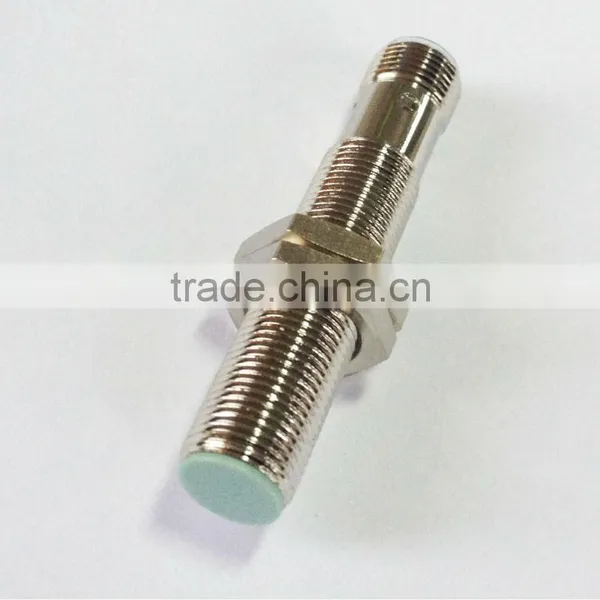

M12 Extended Double Distance Inductive Proximity Sensor Switch, Sn=4mm Flush Mount, NPN or PNP, NO or NC or NO+NC...etc.1. Features of M12 Flush Mount Extended Double Distance Inductive Proximity Sensor Switch :
-- Inductive proximity sensor, style: cylinder, diameter: 12mm
-- Shielded flush mount, 4mm.
-- DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type
-- Connection mode: with M12 cable connector, 3 pins or 4 pins.
-- Mounting distance: shielded / flush 4mm.
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals;
-- Over load, short circuit protection , against polarity reversal
-- IP ratings: IP67
-- Inductive proximity sensor with various other shapes: M5/M8/M18/M30, square types and pancake types.
-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .
-- Reliable quality to replace famous brands .
2.Ordering code
| IPSI/L-12PO4B-D | PNP NO | 4 mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12PC4B-D | PNP NC | 4mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NO4B-D | NPN NO | 4mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NC4B-D | NPN NC | 4mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12POC4B-D | PNP NO+NC | 4mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-12NOC4B-D | NPN NO+NC | 4mm,shielded | ≤200mA | DC 10-30V | Straight connector |
| 3. Technical Specifications: | ||||||||||||||||||
|
