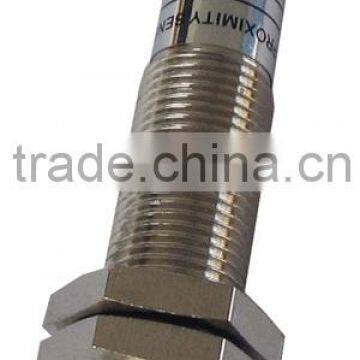

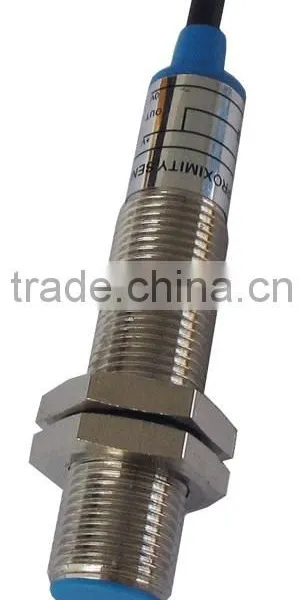

M12 Analog Proximity Sensor Switch 4~20mA/0~10V Output, Linear Position Sensor Switch Non-Flush 4mm(IBEST)

 IBEST Analog Output Proximity Sensor/Switch

1.Features of IBEST Cylinder  M12 Analog Sensor :
-       M12 cylinder, nickled plated brass housing.

-       Detect distance: Flush/shielded 2mm or Non-flush/unshielded 4mm.
-       Standard sensing object: metal objects. Non- contact, absolute operating principle.
-       Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output. (or 4-20mA+0-10V 4 wires output)
-       High repeat accuracy, compact ,  sealed , rugged and reliable.
-       Power: DC (10~30V) supply.
-       IP ratings: IP67, water and oil resistant.

-       Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
-       Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc

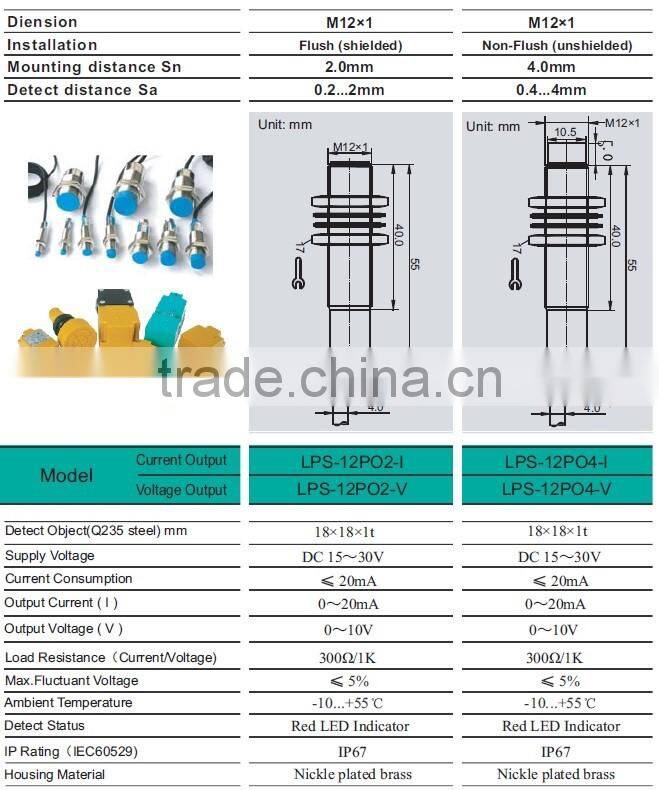

 2.Ordering Code

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.
