S40 Square 4~20mA Linear Output Position Proximity Sensor Switch, Analog Sensor Switch (IBEST)

 IBEST Analog Output Proximity Sensor/Switch

1.Features of IBEST Cylinder  S40 square Analog Sensor :
-       S30 square type, size 40*40*118mm, ABS housing.

-       Connection: with screw terminal connection boxes, without cable.

-       Detect distance: Non-flush/unshielded 20/25mm.
-       Standard sensing object: metal objects. Non- contact, absolute operating principle.

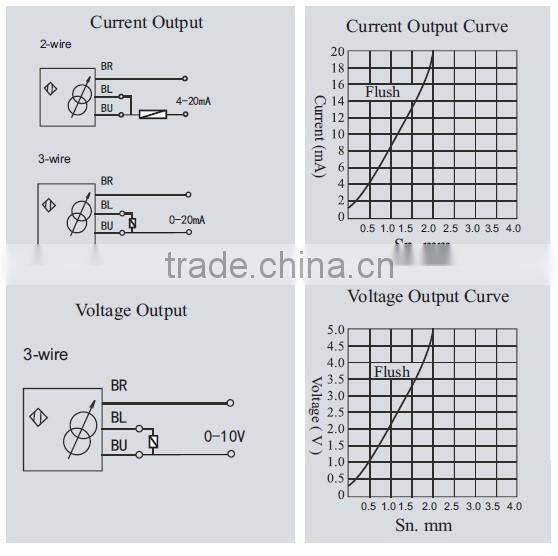

-       Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output.
-       High repeat accuracy, compact ,  sealed , rugged and reliable.
-       Power: DC (10~30V) supply.
-       IP ratings: IP67, water and oil resistant.

-       Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
-       Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc.

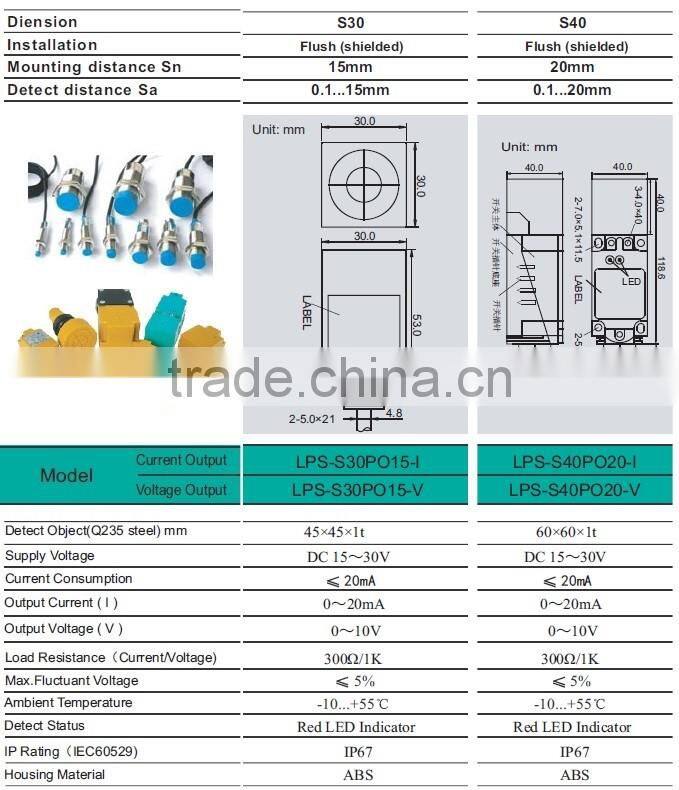

2.Ordering Code

Our company is a professiona manufacutures of:

 1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

Welcome to contact us!

IBEST ELECTRICAL CO.LTD

wwwibestchinacom
