IBEST Analog Output Proximity Sensor/Switch
1.Features of IBEST Cylinder S30 square Analog Sensor :
- S30 square type, size 30*30*53mm, ABS housing.
- Detect distance: Non-flush/unshielded 15mm.
- Standard sensing object: metal objects. Non- contact, absolute operating principle.
- Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output. (or 4-20mA+0-10V 4 wires output)
- High repeat accuracy, compact , sealed , rugged and reliable.
- Power: DC (10~30V) supply.
- IP ratings: IP67, water and oil resistant.
- Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
- Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc.
2.Ordering Code
| Model and Type | Output Mode | Detect Distance | Shape | Power Supply | Detect Object | Buy |
| LPS-S30PO15B-I | 4~20mA | 15mm | S30 square type | 10-30V | Metal Objects | |
| LPS-S30PO15B -V | 0-10V | 15MM | S30 square type | 10-30V | Metal Objects |

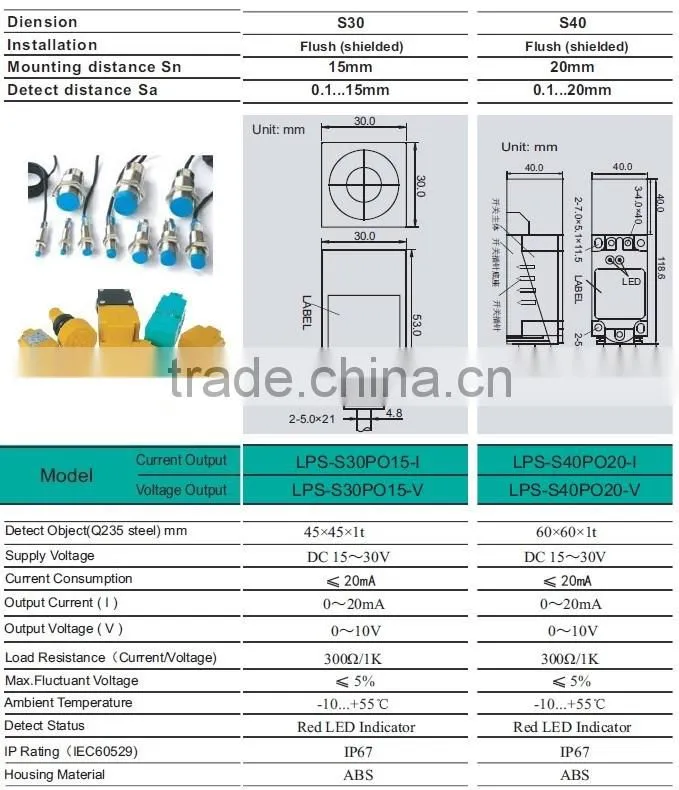

3.Technical Specification
| Property project | Specific parameter |
| Detect Object | 45*45*1t |
| Supply Voltage | DC 10-30V |
| Current Consumption | ≤20mA |
| Output Current(I) | 4-20mA |
| Output Current(V) | 0-5V/0-10V |
| Load Resistance | 300Ω/1K |
| Max.Fluctuant Voltage | ≤5% |
| Ambient Temperature | -15...+65C |
| Detect Status | Red LED Indicator |
| IP Rating(IEC60529) | IP67 |
| Housing Material | ABS |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
wwwibestchinacom
