Help CenterM12 Analog Proximity Sensor Switch 4~20mA/0~10V Output, Linear Position Sensor Switch Flush 2mm (IBEST)
Related Products
-
M12 4~20mA/0~10V Analog Output Proximity Sensor Switch, Linear Position Sensor Switch (IBEST)US$ 7 - 10MOQ: 5 Units -
S40 Square 4~20mA Linear Output Position Proximity Sensor Switch, Analog Sensor Switch (IBEST)US$ 12 - 15MOQ: 5 Units
-
DC 0-10V Output Analog Sensor Switch,S30 Square Linear Position Proximity Sensor Switch (IBEST)US$ 8 - 10MOQ: 5 Units
-
4~20mA Output Analog Sensor Switch,S30 Square Linear Output Proximity Sensor Switch (IBEST)US$ 8 - 10MOQ: 5 Units
-
M30 DC 4-20mA+ 0-10V Analog Output Proximity Sensor Switch, Linear Position Sensor Switch (IBEST)US$ 8 - 12MOQ: 5 Units
IBEST Analog Output Proximity Sensor/Switch

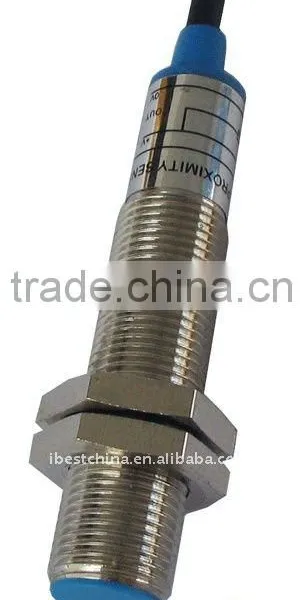

1.Features of IBEST Cylinder M12 Analog Sensor :
- M12 cylinder, nickled plated brass housing.
- Detect distance: Flush/shielded 2mm or Non-flush/unshielded 4mm.
- Standard sensing object: metal objects. Non- contact, absolute operating principle.
- Output: current (0~20mA or 4 -20mA output), voltage (0~10V) output. (or 4-20mA+0-10V 4 wires output)
- High repeat accuracy, compact , sealed , rugged and reliable.
- Power: DC (10~30V) supply.
- IP ratings: IP67, water and oil resistant.
- Analog Sensor Switch have a linear voltage or current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range.
- Widely used for controlling position; measuring deviation of control position, curve and excursion; measuring height of swing and the stability of dimension control...etc
2.Ordering Code
| Model and Type | Output Mode | Detect Distance | Shape | Power Supply | Detect Object | Buy |
| LPS-12PO2B-I | 4~20mA | 2mm | M12 Cylinder | 10-30V | Metal Objects | |
| LPS-12PO4B-I | 4~20mA | 4mm | M12 Cylinder | 10-30V | Metal Objects | |
| LPS-12PO2B-V | 0-10V | 2mm | M12 Cylinder | 10-30V | Metal Objects | |
| LPS-12PO4B-V | 0-10V | 4mm | M12 Cylinder | 10-30V | Metal Objects |
| LPS-12PO2B-IV | 4~20mA+0-10V output | 2mm | M12 Cylinder | 10-30V | Metal Objects | |
| LPS-12PO4B-IV | 4~20mA +0-10V output | 4mm | M12 Cylinder | 10-30V | Metal Objects |
3.Technical Specification
| Property project | Specific parameter |
| Detect Object | 18*18*1t |
| Supply Voltage | DC 10-30V |
| Current Consumption | ≤20mA |
| Output Current(I) | 4-20mA |
| Output Current(V) | 0-10V or 0-5V |
| Load Resistance | 300Ω/1K |
| Max.Fluctuant Voltage | ≤5% |
| Ambient Temperature | -15...+65C |
| Detect Status | Red LED Indicator |
| IP Rating(IEC60529) | IP67 |
| Housing Material | Nickle plated brass |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
wwwibestchinacom
