Help CenterSMD2835 LED Tube
Related Products
Features
Standard color :
Warm White : 2900-3300K
Commerial White(Daylight white ): 4000-4500K
Cold White :5700-6500K
Standard Length :
60cm ,120cm
Technical Specifications:
1. LED type : 2835 SMD LED
2. Wide voltage Input :AC 100-240 V
3. Frequency : 50-60 Hz
4. PF (power factor )>0.9
5. Power Efficiency: >87%
6. CRI>80
7. Use or storage temperature: -20℃---40℃
8.Life time:50000hrs
9.With 5 years warranty.
T8-V series has two types of shell,frosted and transparent shell.
DIMENSIONAL DRAWING
EXTERNAL STRUCTURE
A. PC cover
B. PCB
C. Silicone thermal pad
D. D shaped Aluminous housing
E. PC cover of power supply
F. Built-in driver
BASIC PARAMETER
| Part No. | Length | Input voltage(V/HZ) | Driver | Pins | Beam angle | Working |
Life span(H) | IP rate |
| GLT-AA06-3 | 60cm | AC100 - 240/ 50 - 60 | Bulit-in,Isolate | G13 | 120° | -20 - 40 | 30,000 | IP40 |
| GLT-AA12-3 | 90cm | AC100 - 240/ 50 - 60 | Bulit-in,Isolate | G13 | 120° | -20 - 40 | 30,000 | IP40 |
PHOTOELECTRICITY PARAMETER
| Part No. | LED type/Qty | Power | CCT | CRI | Light efficiency(lM/W) | PF( 100% ) | ||||
| 100% | 40% | 10% | 100% | 40% | 10% | |||||
| GLT-AA06-3 | SMD2835/55pcs | 11.0W | 4.0W | 1.0W | 2900-6500K | Ra>80 | 90 | 100 | 90 | >0.90 |
| GLT-AA12-3 | SMD2835/120pcs | 21.0W | 8.0W | 2.0W | 2900-6500K | Ra>80 | 95 | 105 | 100 | >0.90 |

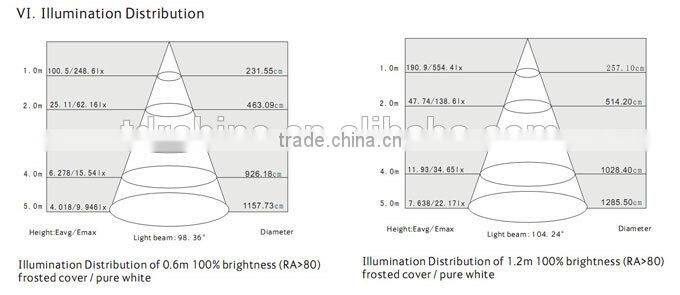

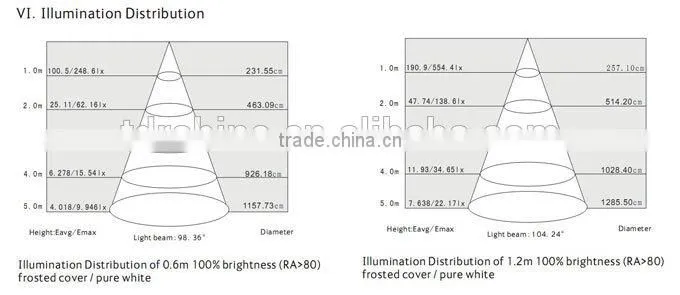

ILLUMINATION DISTRIBUTION

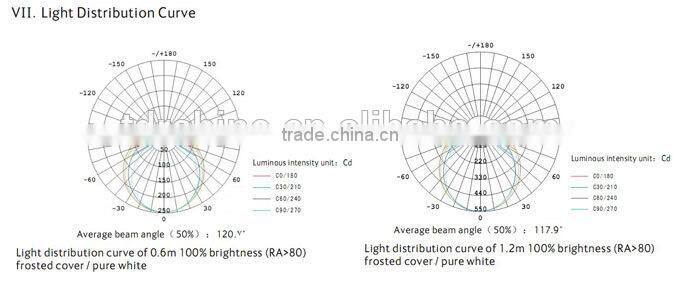

LIGHT DISTRIBUTION CURVE
OPERATION STANDARDS
Operation standards of Dimmable T8 tube light :
Dimmable LED T8 tube keep same appearance as common LED tube and the same installation method.
Steps as below, (please refer to Tube Replacement Instruction for detailed operation procedures )

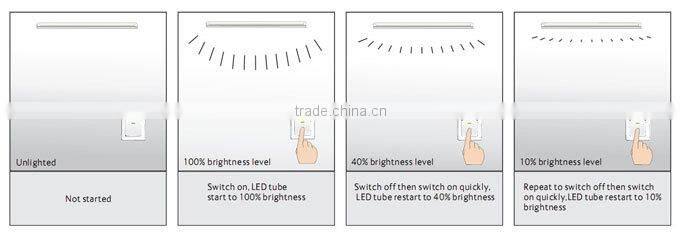

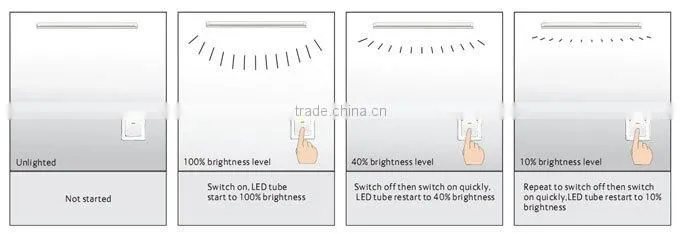

The main feature of dimmableT8 tube is with dimmable functions in different brightness level.
It can realize 100% , 40% and 10% brightness level . Operation as shown below:

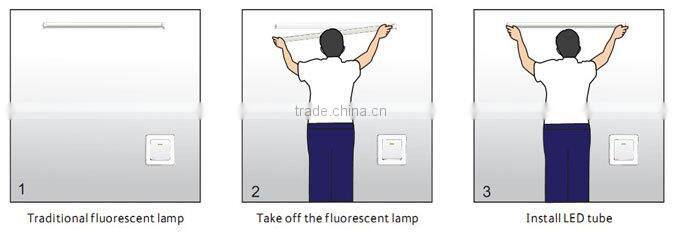

INSTALLATION DIAGRAM
1)T8 LED tube light installation for replacing traditional fluorescent lamp
2)The T8 LED tube work under the right voltage according to the specification
APPLICATION
Widely used in supermarkets, hotels, advanced clubs, Residential lighting, underground car parks, business offices, schools, factories, lighting boxes, building decorative lighting projects and so on.
PACKAGE
1. Adopt imported high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the T8 LED tubes are well protected in transit
3. Neutral Screen
NOTE
1,When install LED T8 tube, try to avoid the minefields, strong magnetic field and high-pressure region.
2,Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3,Install LED tubes in a well-ventilated place to ensure appropriate environmental temperature.
4,Using T8 led tube, please check the local voltage compliance with product requirements.
5,To prohibit the live wiring, do check and confirm wiring is correct and no short-circuit then power on.
6,In case of failures, do not maintain in private.
