T10 Emergency Light
1.High brightness SMD3014 LED, high efficiency and eco-friendly.
2.Anti-corrosion aluminium housing. Highlight PC cover.
3.With normal utility power supply, be used as normal tube and can be switched on and off;
When there is a power failure, the emergency function began to work and the tube maintains 30% lumen.
4.The lasting emergency time is around 180min±20min.
5.Built-in lithium battery, the battery will still remain 80% original capacitance after 500 times,
charging and discharging. Safe and long lifespan.
Application
1. Stairwells, fire escapes, studios;
2. Car park, basements, semi-basements;
3. Audience halls, showrooms, multi-functional hall, canteens;
4. Passageways, supermarkets, factories, hospitals, schools

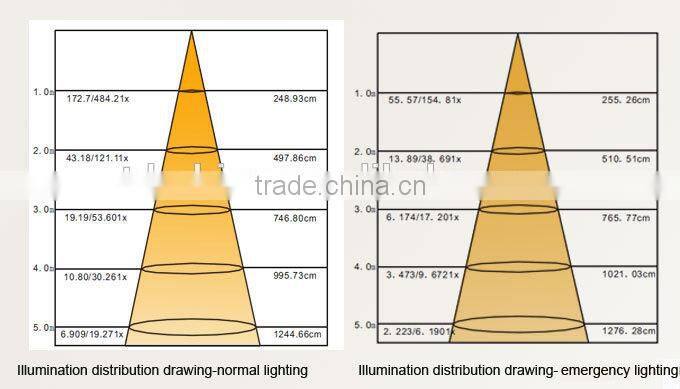

PHOTOMETRIC TEST REPORT
PARAMETER :
| Part No | LED | LED Q'ty | Input Voltage | Normal lighting power |
Battery charging power |
Power Factor | Lumen | emergency lighting |
| GLT-AB12-1 | SMD3014 | 192pcs | 100-240VAC | 18W±1W | 4.2W±1W | >0.9 | 1600LM±100LM | 500LM±50LM |
| Part No | Charging Time |
Back-up time | CRI | Lighting Angle | Size | N.W. | Working Temperature |
Average Lifespan | Material |
| GLT-AB12-1 | 8H | 180M±20M | Ra>80 | 120℃ | 1198*30 | 478G | -20℃-40℃ | 30000H |
Anti-corrosion aluminium |

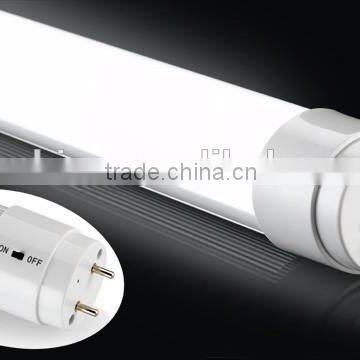

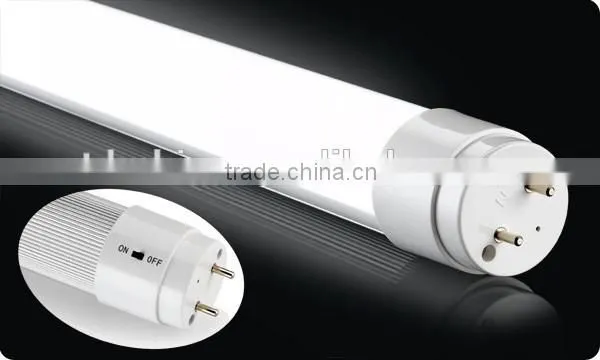

PRODUCT STRUCTURE

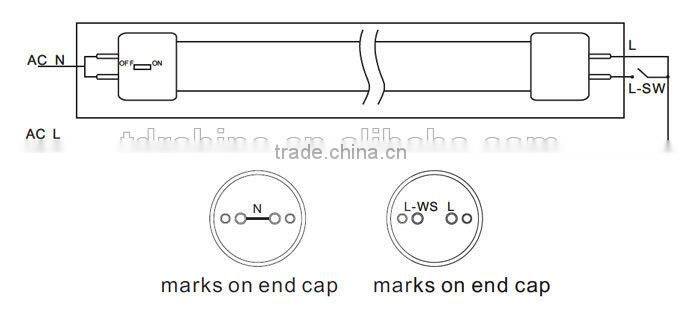

CONNECTION WIRE DRAWING:

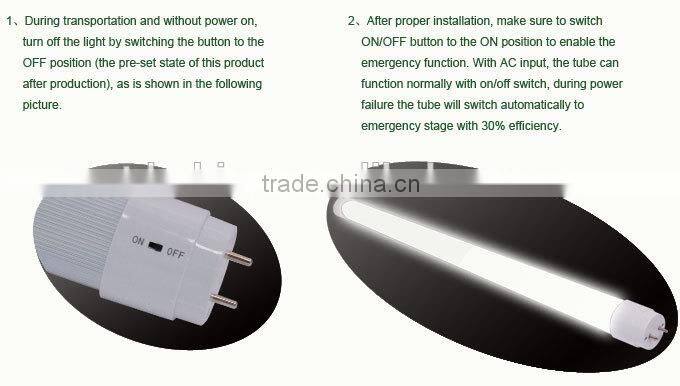

THE USAGE INSTRUCTION FOR EMERGENCY ON/OFF SWITCH :
NOTE :
1.Connect L to the AC L power line. The L line will power the battery, detect power disruption. When there is a power failure, the emergency lighting module will begin to work.
2.L-SW connects to AC L power line by on/off switch and it controls on/off switch of normal lighting.AC N is connected to the null line.Please make sure to connect the emergency tube according to the above diagram, otherwise failure in emergency function may be incurred or light may stay on at 100%.
3.With normal utility power supply, the tube works in the same way as other standard tubes and goes on/off. When utility power fails, the tube will bypass on/off wall switch and turn on automatically at 30% brightness. Light output in emergency mode reaches 30% of its original lumen, lasting for over 180 minutes.
