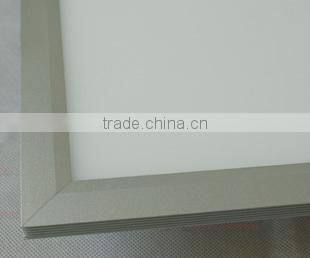

Help Center300x1200 60W Led Panel Light
Related Products
1. Thickness:12mm
2. luminous efficacy : 88lm/W; (The actual test data )
3. Lifetime: ≥100,000h
4. Certificate: TUV,CE, FCC, RoHS approved,
5. Warranty : with 3 years
DIMENSIONAL DRAWING
PARAMETER
- Item NO.: GLM-AAAM-X
- Dimension: 300mm x 1200mm x 12mm
- LED type: SMD 5630
- LED Q'ty: 220pcs
- Material: Aluminium + PMMA
- Beam Way: Beam at two sides
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP40
- N.W.(±0.1Kg) 4.25Kg
PHOTOELECTRICITY PARAMETER
- CCT .: 2900-6500K
- Flux.(±10%): 6000lm
- Light Efficiency(±10%): 80lm / Watt
- Input voltage: AC 110-240V
- Input Power: 62W
- CRI: Ra>80
- Lux.at 2Meters(±10%): 420lx
- Dimmable: Dimmable or Non Dimmable are available
- Lighting Angle: 120°
- PF: >9.0

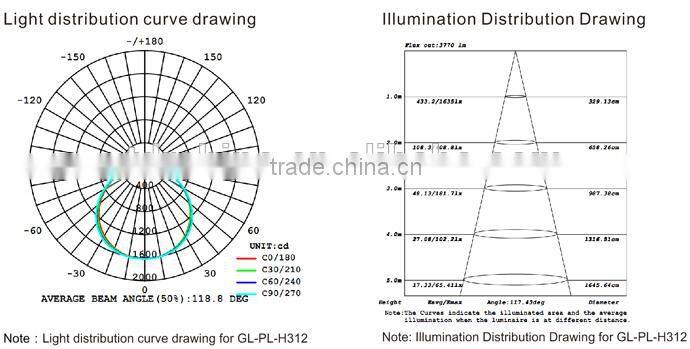

TESTING REPORT FOR 60W LED LIGHT PANEL

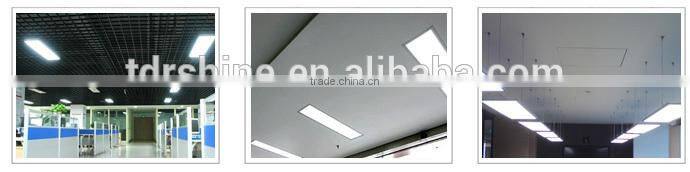

APPLICATION
The LED panel light ideal for illuminating a wall or display slides, signs. they offer many opportunities in innovative decorating stores and the exhibition of products on shelves or front lighting. Its standard dimensions allow very effectively replace neon frames and other types of lighting in the ceiling tiles.
PRODUCT DETAILS FOR 300X300X12MM LED PANEL LIGHTS
HOW TO CHOOSE LUMINOUS EFFICACY OF LED PANEL LIGHT?
The LED light panels provide a steady from one end panel extra constant light, the LED light panels consume less than two-thirds of electricity than conventional lighting and contain no harmful or dangerous that could be associated with other lighting products for low chemical consumption.
