Help Center600x1200 70W Led Panel Light
Related Products
PARAMETER
- Item NO.: GLM-AAAN-X
- Dimension: 600mm x 1200mm x 12mm
- LED type: SMD 5630
- LED Q'ty: 220pcs
- Material: Aluminium + PMMA
- Beam Way: Beam at two sides
- Working temperature: -10.C~40.C
- Installation method: Embedded.Hanging
- IP rate IP40
- N.W.(±0.1Kg) 8.7Kg
PHOTOELECTRICITY PARAMETER
- CCT .: 2900-6500K
- Flux.(±10%): 6500lm
- Light Efficiency(±10%): 80lm / Watt
- Input voltage: AC 110-240V
- Input Power: 71W
- CRI: Ra>80
- Lux.at 2Meters(±10%): 430lx
- Dimmable: Dimmable or Non Dimmable are available
- Lighting Angle: 120°
- PF: >9.0

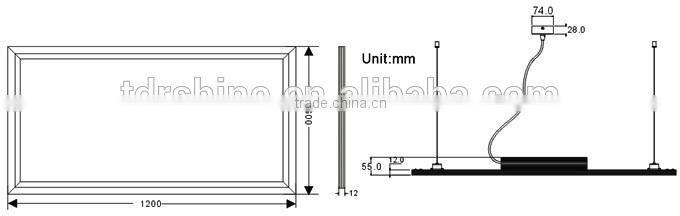

DIMENSIONAL DRAWING

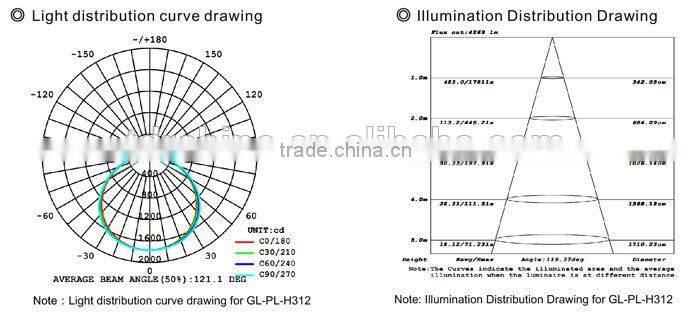

TESTING REPORT FOR 70W LED PANEL LIGHT
APPLICATION
The LED panel light ideal for illuminating a wall or display slides, signs. they offer many opportunities in innovative decorating stores and the exhibition of products on shelves or front lighting. Its standard dimensions allow very effectively replace neon frames and other types of lighting in the ceiling tiles.
LED PANEL LIGHT PACKAGING SECURITY
GL's LED panel light series, due to the LED light panel itself is fragile products, so we must have all-sided consideration in the packaging safety aspects and withstand natural drop test. Specially 600x1200mm LED panel light has larger product area, we use safe material inner box wrapped,and put it into thick paper outer cartons. To make led panel light's transit safer, we adopt add fixed plank in the box.
