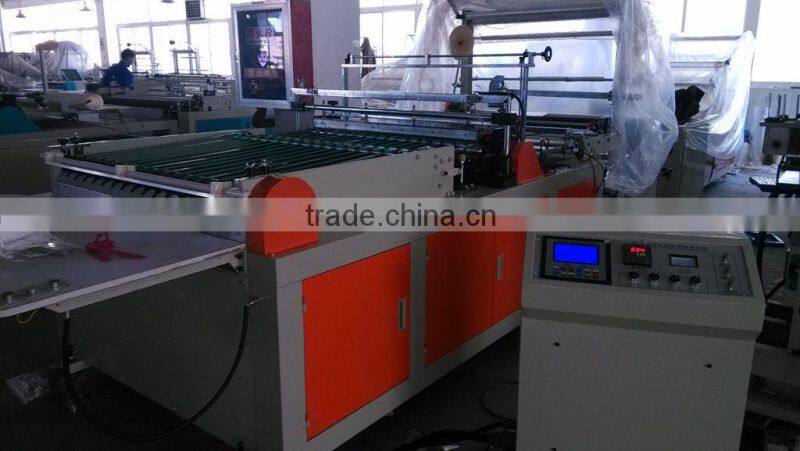

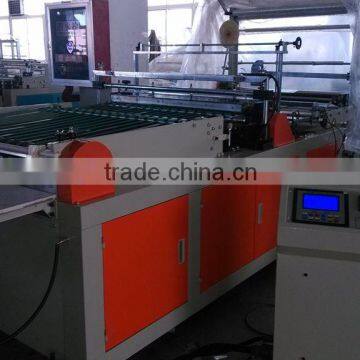

Help CenterSide Sealing Hot Cutting Bag Making Machine
Related Products
-
Cambered / ARC Bag Making MachineUS$ 8,800 - 12,500MOQ: 1 Set -
Central Sealing Bottom Cutting Plastic/Paper Bag Making Machine Quality ChoiceUS$ 4,500 - 5,500MOQ: 1 Set
-
Middle Sealing Bottom Cutting Bag Making MachineUS$ 4,500 - 5,500MOQ: 1 Set
-
Back Sealing and Cutting Bag MachineUS$ 4,500 - 5,500MOQ: 1 Set
-
Automatic Cloth Bag Making MachineUS$ 7,500 - 9,200MOQ: 1 Set
Machine Description

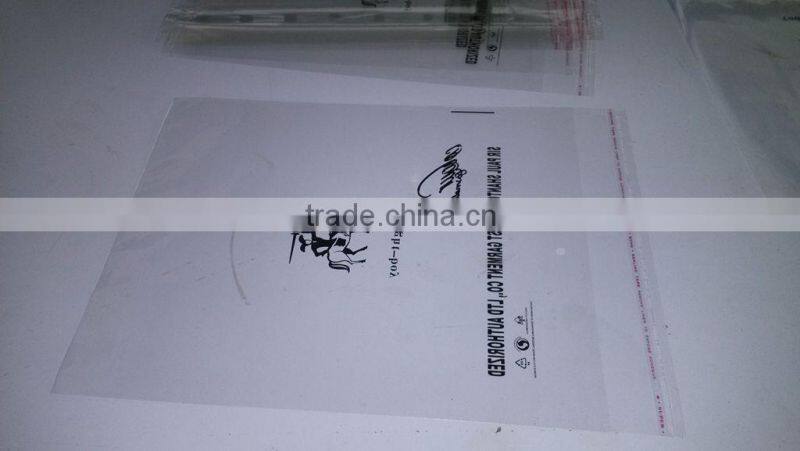

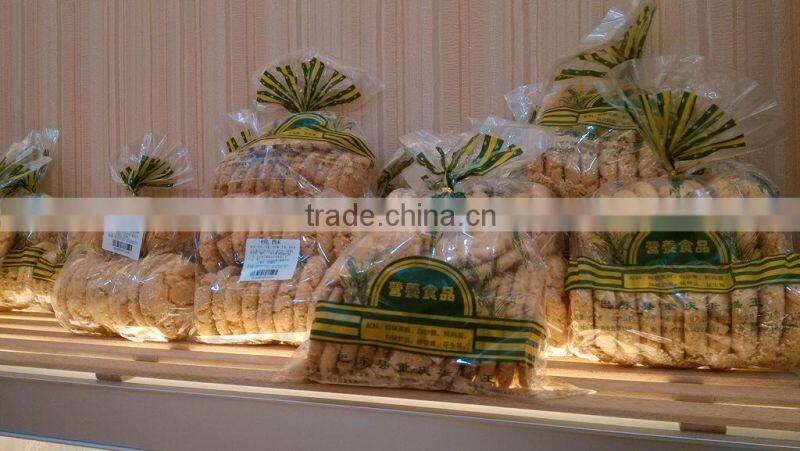

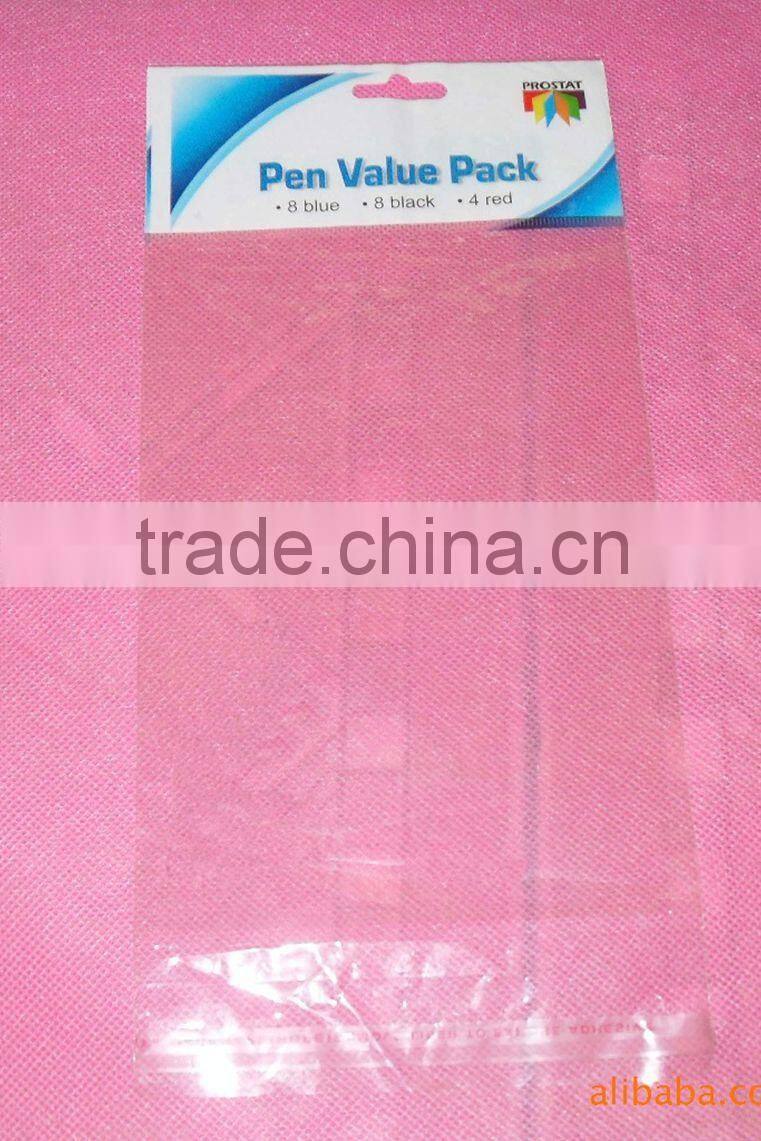

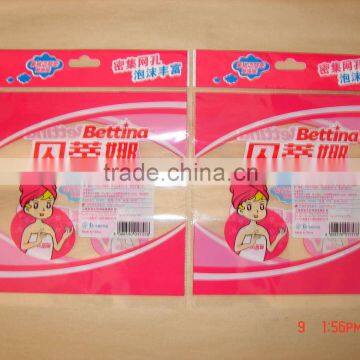

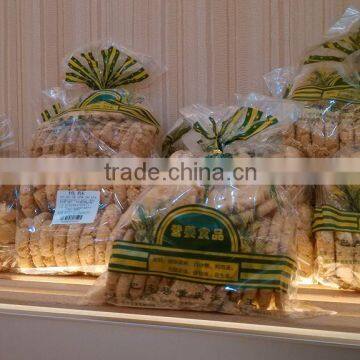

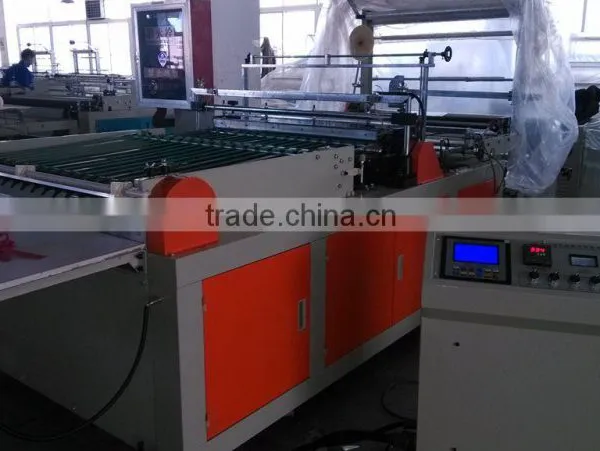

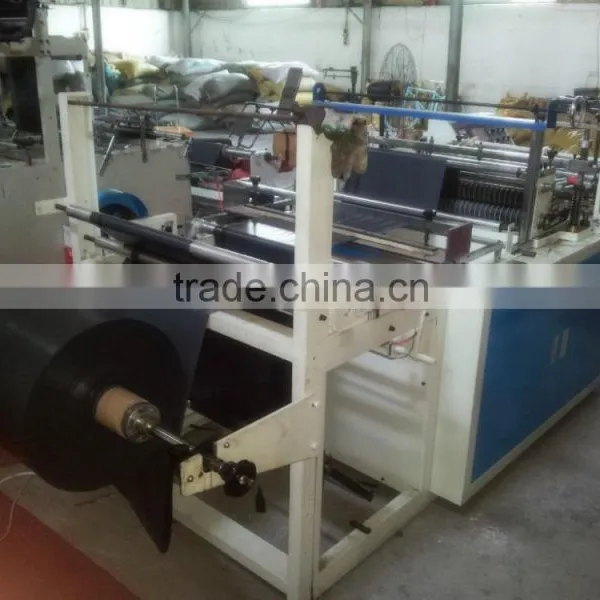

This machine is suitable for heat-sealing and heat-cutting such materials as BOPP ,OPP thermal contracting films,etc.and it is a king of ideal equipment for making socks bag, towellag, bread bag and ornament bag,etc.The machine has such characteristics as length fixing by computer ,photoelectric tracking stable per-formance(cast-iron structure)and highspedd,etc.And has such functions as automatic gluing,automatic pnching and lace heat-sealing ,etc.
Feature:
1. The machine is suitable for side hot sealing and hot cutting such material as PE, BOPP, OPP, PP thermal contracting films etc.

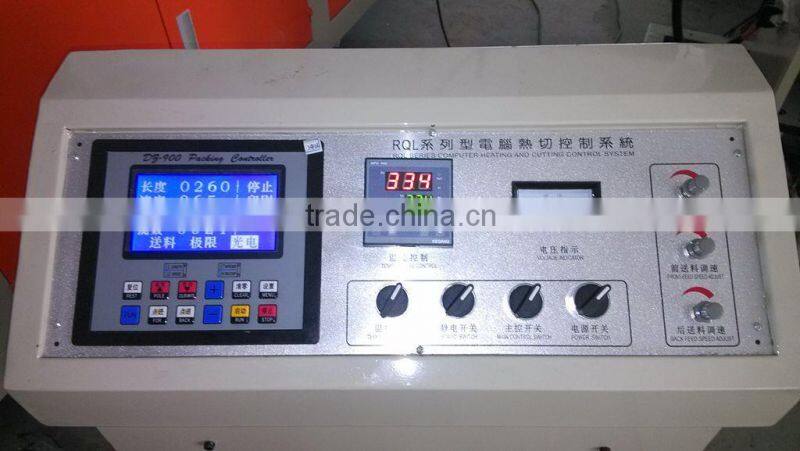

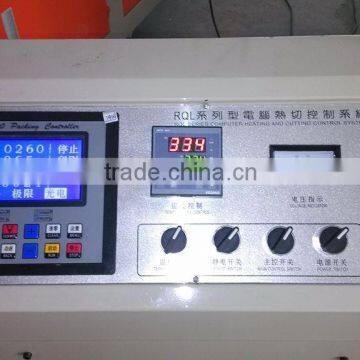

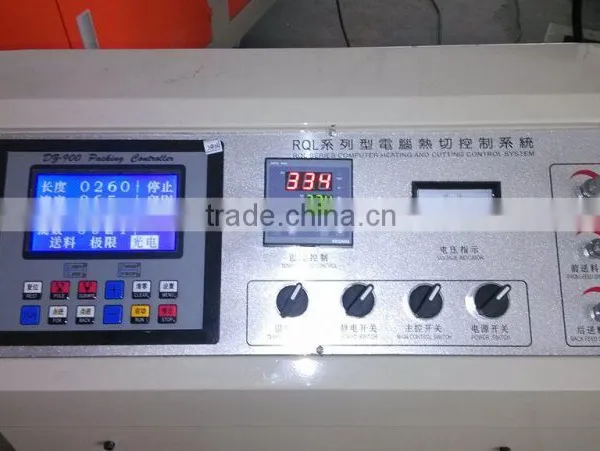

2. The whole machine adopts microcomputer control and material pulling by stepping motor.
3. Arbitrary fixed length, accurate and stable step photoelectric tracking, stopping automatically when the lable is lost
4. Automatic and synchronous two side tape gluing, automatic punching on the bag.
5. Equipped with inline gusset on the bag.
6. Automatic counting and set table counting alarm.
7. Heating sealing decorative border, automatic constant temperature, firm and smooth sealing.
8. Machine comes with two types of sealing knife. One is straight knife, another is slotted knife.
9. Equipped with Anti-static bar to make stacked bag smoothly
Machine Parameter
Model | RQL-600 | RQL -700 | RQL -800 | RQL -900 | RQL -1000 |
width of sealing &cutting(mm) | 500 | 600 | 700 | 800 | 900 |
length of sealing & cutting(mm) | 1200 | 1200 | 1200 | 1500 | 1600 |
speed of bag-making (pc/min) | 80-180 |
80-180
|
80-180
| 60-160 | 60-160 |
Power of motor(kw) | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Weight(kg) | 700 | 850 | 850 | 1000 | 1000 |
Outline dimension | 3.2×1.2×1.7 | 3.5 x 1.3 x 1.7 | 3.5 x 1.3 x 1.8 | 3.7 x 1.6 x 2 | 3.8 x 1.8 x 2. |
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Skype: ruianplastic
Mobile/Whatsapp: +86-13396972488
Wechat/QQ: 65295224
