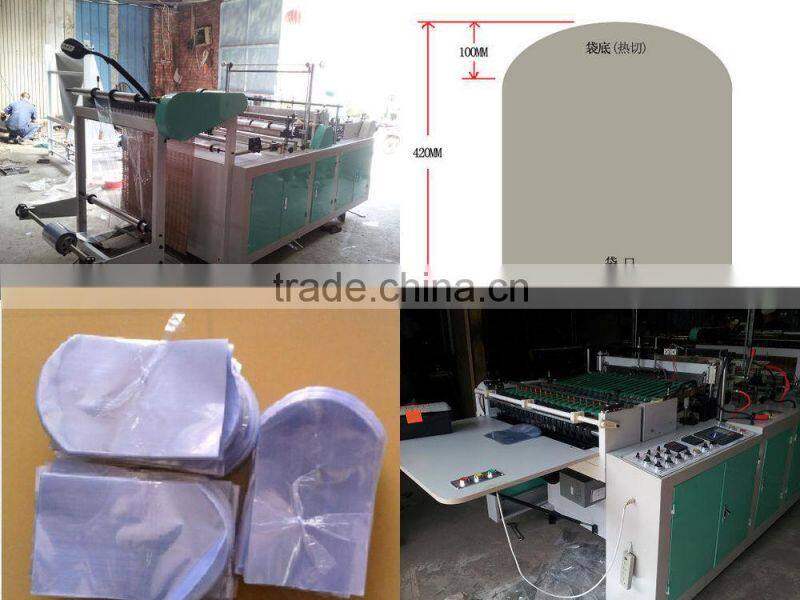

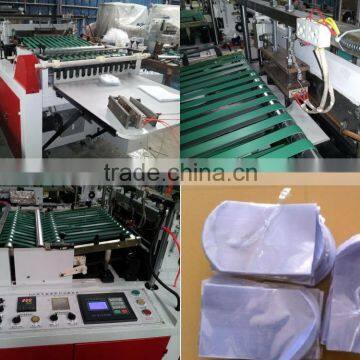

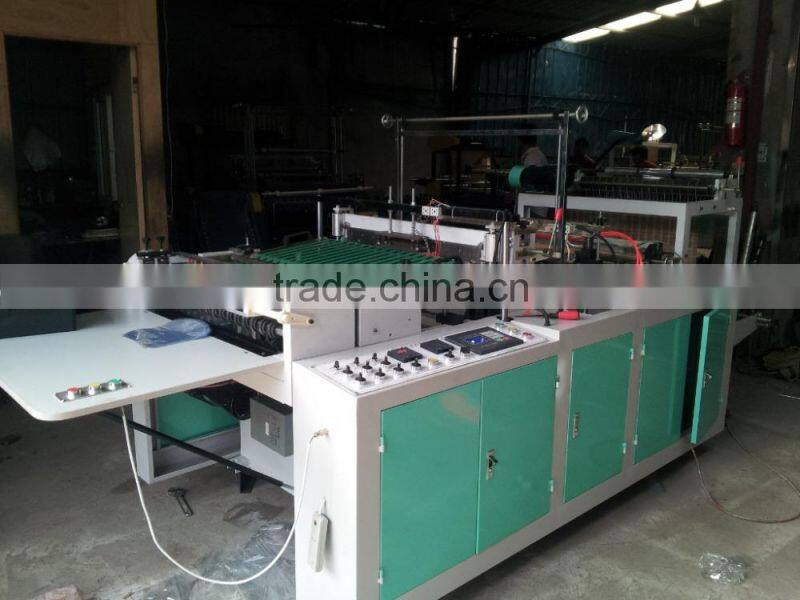

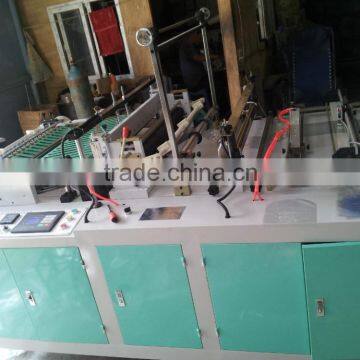

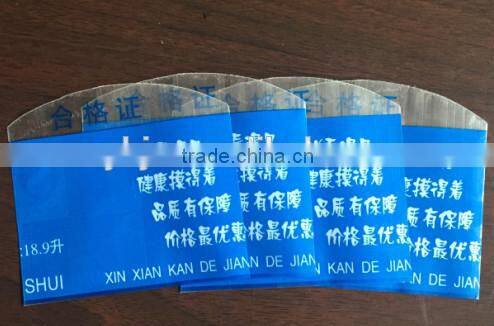

Help CenterCambered / ARC Bag Making Machine
Related Products
-
Central Sealing Bottom Cutting Plastic/Paper Bag Making Machine Quality ChoiceUS$ 4,500 - 5,500MOQ: 1 Set -
Middle Sealing Bottom Cutting Bag Making MachineUS$ 4,500 - 5,500MOQ: 1 Set
-
Back Sealing and Cutting Bag MachineUS$ 4,500 - 5,500MOQ: 1 Set
-
Automatic Cloth Bag Making MachineUS$ 7,500 - 9,200MOQ: 1 Set
-
Plastic Shopping Bag Making Production Machine Quality ChoiceUS$ 8,800 - 12,500MOQ: 1 Set
Features

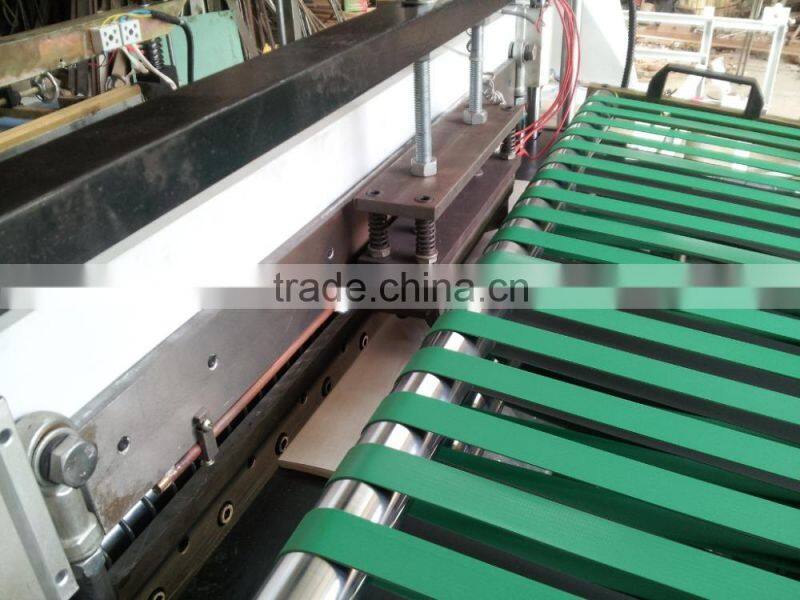

The whole machine adopts microcomputer control and material pulling by stepping motor(servo motor control system can be selected and equipped); Arbitrary fixed-length ,photoelectric tracking, automatic stop when the sign is lost; Automatic and synchronous two side tape gluing, automatic punching; Automatic counting and alarm; Heat sealing decorative border, automatic constant temperature, film and smooth sealing.
Main technical
Material: |
BOPP,POF,HDPE,LDPE,etc |
Film roller: |
Max width 550mm |
|
Max diameter 600mm |
Speed: |
≤200pcs/min |
Bag length: |
<750mm |
Bag width: |
55-550mm |
Power supply: |
220V/380V |
Total power: |
4KW |
Dimension: |
3800×1350×1950mm |
Gross weight |
800kg |
Drive mode: |
Servo motor |
Controller: |
Computer |
Frequency inverter: |
1.5KW×1=1.5KW |
Main motor: |
1.5KW×1=1.5KW |
Unwind motor: |
0.3KW×1=0.3KW |
Sever motor&driver: |
1.5KW×1=1.5KW |
Optional equipment: |
|
Puncher: |
(Such as,hole,handle cut,etc) |
Unwind unit with EPC |
|
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Skype:ruianplastic
Mobile/WhatsApp: +86-13396972488
Wechat: 65295224
