Stainless Steel air Pressure Gauge
- 1000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | FPY-103 |
Packaging Details
Stainless Steel oil Pressure Gauge Standard packing(or according to the customer request)
Product Description
Specifications
Stainless Steel air Pressure Gauge1 professional manufacturer
2 quick shipment
The Stainless Steel oil Pressure Gauge

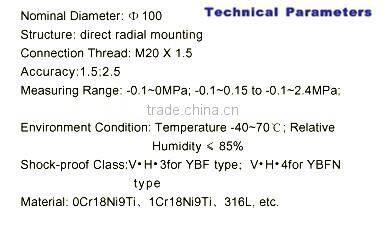

The specification of Stainless Steel oil Pressure Gauge :
Use working temperature: -40 °C ~ 70 °C
Working pressure limit: not more than the upper limit of the instrument 2/3
Work environment vibration frequency less than 25Hz, amplitude less than 0.5mm
Instrument performance standards: Q/320211 DGH05-2004
technical data of Stainless Steel oil Pressure Gauge :
type | YXC-100ZQ | YXC-150ZQ | YXC-100 | YXC-150 | YXC-100TQ | YXC-150TQ |
structure | axial with front brim | Radial infinite | Radial with front brim |
|
|
|
range MPa | -0.1-0.15;-0.1-0.3;-0.1-0.5;-0.1-0.9;-0.1-1.5;-0.1-2.40-0.25; 0-0.4; 0-0.6; 0-1.0; 0-1.6; 0-2.5; 0-4.0; 0-6.0; 0-10; 0-16; 0-25; 0-40; 0-60;100 | |||||
accuracy% | ± 1.6 | |||||
Contact electrical parameters | voltage | 380VAC;220VDC | ||||
max current | 1A | |||||
follow current | 0.6A | |||||
Maximum power (non inductive load) | 20VA | |||||
connector | X14K4P | Waterproof connector | X14K4P | Waterproof connector | X14K4P |
|
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this diaphragm pressure gauge , please visit the website
Katherina Wang
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
