Specifications
diaphragm piezometer1professional manufacturer
2quick shipment
3CEcertification

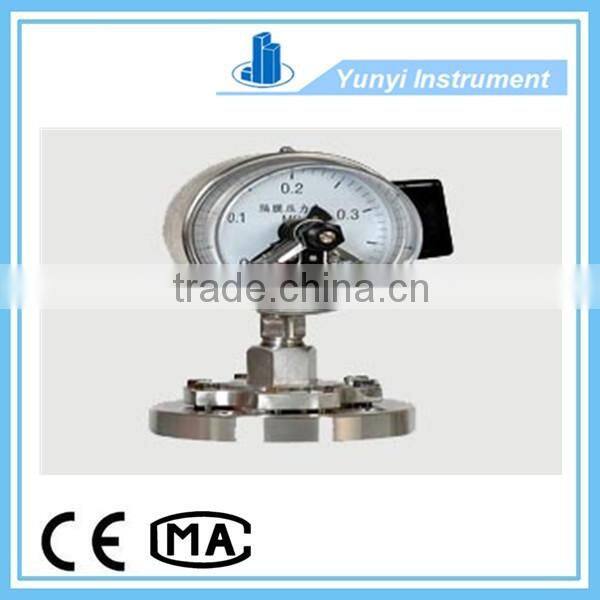

Electric contact diaphragm piezometer
Technical data of Electric contact diaphragm piezometer :
Dial Size:4inch (100mm) 6inch (150mm)
Pressure Range :0 ~ 2kpa 0 ~ 200kpa (micro-pressure type) 0 ~ 50Mpa 0 ~ 500Kgf/cm2 (pressure type) 0 ~ 100Mpa 0 ~ 1000Kgf/cm2 (high pressure) -0.1 ~ 0 ~ 4Mpa (positive pressure to 4Mpa maximum) -0.1 ~ 0 ~ 40Kgf/cm2
Table window: transparent acrylic cover
Dial: aluminum sheet (single or dual scale design)
Diaphragm materials: 0Cr17Ni12Mo2 (316); Monel (Cu30Ni70); Hastelloy (H276C); tantalum (Ta) and fluorine rubber and fluorine plastic (F4).
Flange material: stainless 0Cr17Ni12Mo2 (316); stainless steel lined plastic (316 + F4).
Gasket material: nitrile rubber; fluorine rubber; silicone rubber and fluorine rubber.
Filler: Silicone oil or glycerol
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this diaphragm-seal thread pressure gauge , please visit the website
