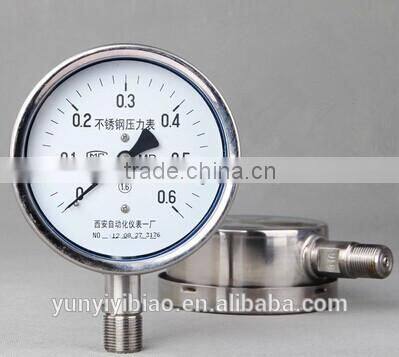

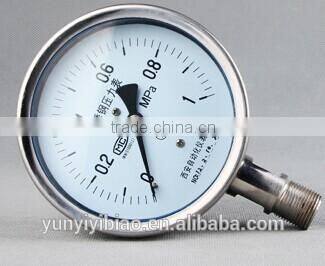

Help Center2013 Best Selling All Stainless Steel Pressure Gauge
Related Products
-
Diaphragm-seal Bourdon-tube Connection Pressure GaugeUS$ 40 - 100MOQ: 1 Piece -
Diaphragm-seal Thread Connection Pressure GaugeUS$ 40 - 100MOQ: 1 Piece
-
Diaphragm-seal Sanitary Pressure GaugeUS$ 40 - 100MOQ: 1 Piece
-
Diaphragm-seal Ultra High Pressure GaugeUS$ 40 - 100MOQ: 1 Piece
-
Stainless Steel Shock Proof Pressure GaugeUS$ 5 - 80MOQ: 1 Piece
Specifications
2013 Best selling All stainless steel pressure gauge1 professional manufacturer
2 more accuracy
3 Exquisite workmanship
The Stainless steel pressure gauge
The specification of Stainless steel pressure gauge:
Thread specification: M20 * 1.5
Characteristics: corrosion resistance to high temperature
Material: all the 316 stainless steel material
Medium temperature: 200 ° C or less
Use working temperature: -40 °C ~ 70 °C
Working pressure limit: not more than the upper limit of the instrument 2/3
Work environment vibration frequency less than 25Hz, amplitude less than 0.5mm
Instrument performance standards: Q/320211 DGH05-2004
technical data of Stainless steel pressure gauge :
type |
YXC-100ZQ |
YXC-150ZQ |
YXC-100 |
YXC-150 |
YXC-100TQ |
YXC-150TQ |
structure |
axial with front brim |
Radial infinite |
Radial with front brim |
|
|
|
|
range MPa |
-0.1-0.15;-0.1-0.3;-0.1-0.5;-0.1-0.9;-0.1-1.5;-0.1-2.40-0.25; 0-0.4; 0-0.6; 0-1.0; 0-1.6; 0-2.5; 0-4.0; 0-6.0; 0-10; 0-16; 0-25; 0-40; 0-60;100 |
|||||
accuracy% |
± 1.6 |
|||||
Contact electrical parameters |
voltage |
380VAC;220VDC |
||||
max current |
1A |
|||||
follow current |
0.6A |
|||||
Maximum power (non inductive load) |
20VA |
|||||
connector |
X14K4P |
Waterproof connector |
X14K4P |
Waterproof connector |
X14K4P |
|
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this diaphragm pressure gauge , please visit the website
