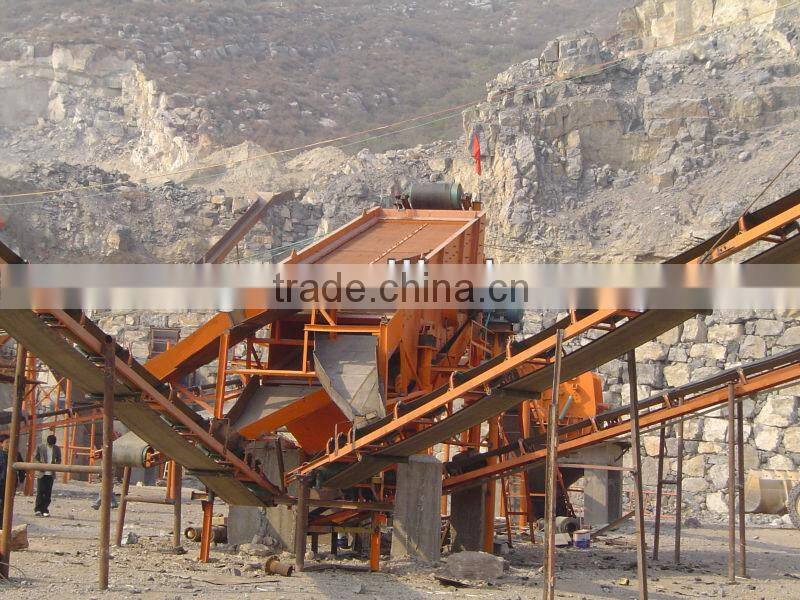

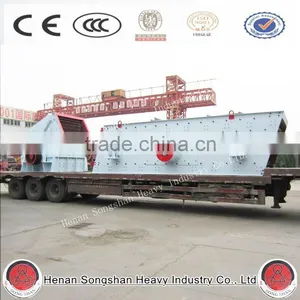

Mining Circular Vibrating Equipment
Mining Circular Vibrating Equipment which produced by our company is a highly effective and new type of shake equipment, the output and power all reached the national standard, ranking domestic and international advanced level, highly praised by customers in each industry. In the structure using tube-type eccentric shaft vibration exciter and partial block of conditioning amplitude, advanced frame structure assembled rivet connection of the equipment to improve service life and spring damping device reduces the impact on the base, is a multi-layer and efficient new shaker.
Features of Mining Circular Vibrating Equipment :
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To deploy tire couplings, flexible connection, running smoothly.
3. To adopt a sieve and the sieve box beams using high strength bolts, simple structure, convenient maintenance.
4. Structure, advanced, using block eccentric as the excitation power, excitation and strong, with low power consumption, low noise.
Working Principle of Mining Circular Vibrating Equipment :
Motor make the exciter eccentric block produce high-speed rotation through the V-belt. Operation of the eccentric block produce large centrifugal force, to stimulate sieve boxes have a certain amplitude circle movement, the material on screen surface impulse by screen box generate continuous movement, on the process of materials and screen meet, the particles smaller than sieve screen can though to next screen, so that achieve classification.
Main Technical Parameters of Mining Circular Vibrating Equipment :
Model |
Sieve Area (m2) |
Charge Granularity (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Motor Power (kw) |
Weight (kg) |
YK1236 |
4.3 |
≤200 |
240 |
8 |
7.5 |
3210 |
3YK1536 |
5.4 |
≤200 |
300 |
8 |
7.5 |
3630 |
2YK1542 |
6.3 |
≤200 |
360 |
8 |
11 |
4600 |
YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
4780 |
3YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
6600 |
YK2148 |
10 |
≤300 |
590 |
8 |
15 |
7150 |
2YK2148 |
10 |
≤300 |
590 |
8 |
15 |
8360 |
YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
8030 |
2YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10120 |
3YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10800 |
YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
8980 |
2YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
10700 |
YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
8800 |
2YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
12870 |
3YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
15600 |
