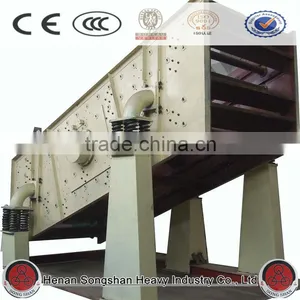

Circular Sieving Equipment
1.Circular Sieving Equipment which produced by our company is a highly effective and new type of shake equipment, the output and power all reached the national standard, ranking domestic and international advanced level, highly praised by customers in each industry. In the structure using tube-type eccentric shaft vibration exciter and partial block of conditioning amplitude, advanced frame structure assembled rivet connection of the equipment to improve service life and spring damping device reduces the impact on the base, is a multi-layer and efficient new shaker.
2.Features of Circular Sieving Equipment :
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To deploy tire couplings, flexible connection, running smoothly.
3. To adopt a sieve and the sieve box beams using high strength bolts, simple structure, convenient maintenance.
4. Structure, advanced, using block eccentric as the excitation power, excitation and strong, with low power consumption, low noise.
3.Working Principle of Circular Sieving Equipment :
Motor make the exciter eccentric block produce high-speed rotation through the V-belt. Operation of the eccentric block produce large centrifugal force, to stimulate sieve boxes have a certain amplitude circle movement, the material on screen surface impulse by screen box generate continuous movement, on the process of materials and screen meet, the particles smaller than sieve screen can though to next screen, so that achieve classification.
4.Main Technical Parameters of Circular Sieving Equipment :
Model |
Sieve Area (m2) |
Charge Granularity (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Motor Power (kw) |
Weight (kg) |
YK1236 |
4.3 |
≤200 |
240 |
8 |
7.5 |
3210 |
3YK1536 |
5.4 |
≤200 |
300 |
8 |
7.5 |
3630 |
2YK1542 |
6.3 |
≤200 |
360 |
8 |
11 |
4600 |
YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
4780 |
3YK1548 |
7.2 |
≤200 |
400 |
8 |
11 |
6600 |
YK2148 |
10 |
≤300 |
590 |
8 |
15 |
7150 |
2YK2148 |
10 |
≤300 |
590 |
8 |
15 |
8360 |
YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
8030 |
2YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10120 |
3YK2160 |
12.6 |
≤300 |
750 |
8 |
18.5 |
10800 |
YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
8980 |
2YK2448 |
11.5 |
≤300 |
620 |
8 |
22 |
10700 |
YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
8800 |
2YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
12870 |
3YK2460 |
14.4 |
≤300 |
790 |
8 |
30 |
15600 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Service:
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3) After-sales service:
We sent engineer to the scene to guide installation, debugging and training operators.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Company Profile-- aggregate screening equipment | |
|
Henan Songshan Heavy Industry Co., Ltd., a state-designated manufacturer by National Construction Department, has a history of over 30 years in machine manufacturing. We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers. Since our establishment, we have been developing and updating our products according to the demand of markets. We ensure to provide excellent machinery to our customers, with advanced processing equipment, perfect technology and strict test. Our products have been sold well at home and abroad.
|
|
|
Certificate of honor-- aggregate screening equipment | ||
|
CE certificate
|
ISO9001-2000 |
BV certificate |

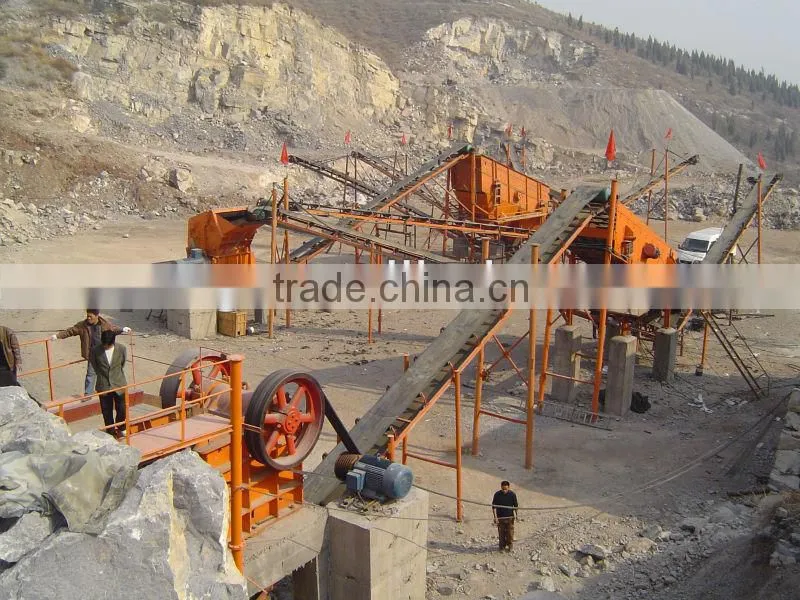

Please don’t hesitate to inform us about the crushing and screening plant :
1.What’s kind of your raw material?
2. Now your raw stone size?
3. What’s the capacity ? (T/H)
4. What’s the final stone size request?
5. Others?
If possible,please send us some ore sample, we will do a test for you.
