Home > Products > Piston Dead Weight Tester > Oil Pipeline Leak Detector Pressure Tester

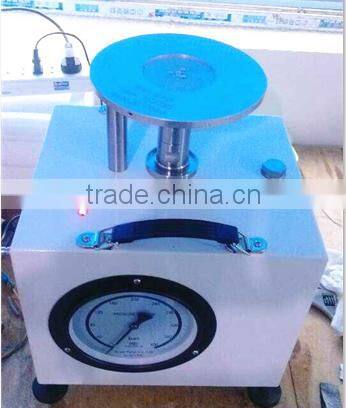

Oil Pipeline Leak Detector Pressure Tester

Name: Oil Pipeline Leak Detector Pressure Tester
Brand: Yunyi
Availability: InStock

FOB Price

US$ 4,761 - 9,000 / Piece

1 Piece(Min. Order)

Port Shanghai Ningbo Tianjin Guangzhou Qingdao Qinhuangdao Dalian Shenzhen Zhoushan Yingkou Erlianhaoteshi Huoerguosi Dandong Alashan
Payment TermsMoney Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	Yunyi
Model Number	YY	Power	Hydraulic
Usage	Balancing Machine

Packaging Details

Oil pipeline leak detector pressure tester
package:box
standard size for one piece:35*35.20cm
more based on quantities

Product Description

Oil pipeline leak detector pressure tester

Product Description

Outline:

In the pipeline pressure test, the pipeline welding is completed to conduct stress tests, stress tests primarily to pressure capacity and the existence of micro-leakage test tube, and the pressure balance of uncertainty and sensitivity and precision are currently unable to replace all instruments and so the pressure balance is one of the indispensable test piping pressure instrument

Basic parameters:

Pressure Range: (5 ~ 250) bar (10 ~ 500) bar or customize other ranges
Uncertainty: 0.05 0.02 0.01
The minimum leakage detection value: 0.005MPa (0.05 Kg)
Current output: 4 to 20 mA (HART) Accuracy 0.05 (485 output optional)
Auxiliary pressure indicator: gauge
Auxiliary displacement indications: color indication system
Threaded connection: M20 * 1.5 thread

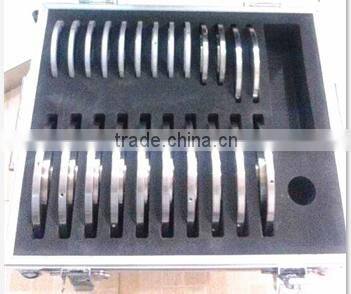

Weights:

Number	range	Accuracy	Cross-sectional area	Weights number	weights weigh
551-1	5~250bar	0.05% 0.02%	0.1 Square cm	0.1bar weight 10P 1bar weight 9 P 5bar weight 3 P 10bar weight 2 P 25bar weight 8 P	1bar weght about 0.1KG Specific weight Weight calculation derived according to the local gravity calculation Weights total 25KG
551-2	10-600bar 5-600bar		0.05 Square cm	50bar weight 11 P 10bar weight 3 P 1bar weight 9 P 0.1bar weight 10P	1bar weght about 0.05KG Specific weight Weight calculation derived according to the local gravity calculation Weights total 30KG
551-3	10~250bar		0.05 Square cm	0.1bar weight10 P 1bar weight 9 P 5bar weight 2 P 10bar weight 2 P 25bar weight 8 P	1bar weght about 0.05KG Specific weight Weight calculation derived according to the local gravity calculation Weights total 12.5KG

Packaging & Shipping

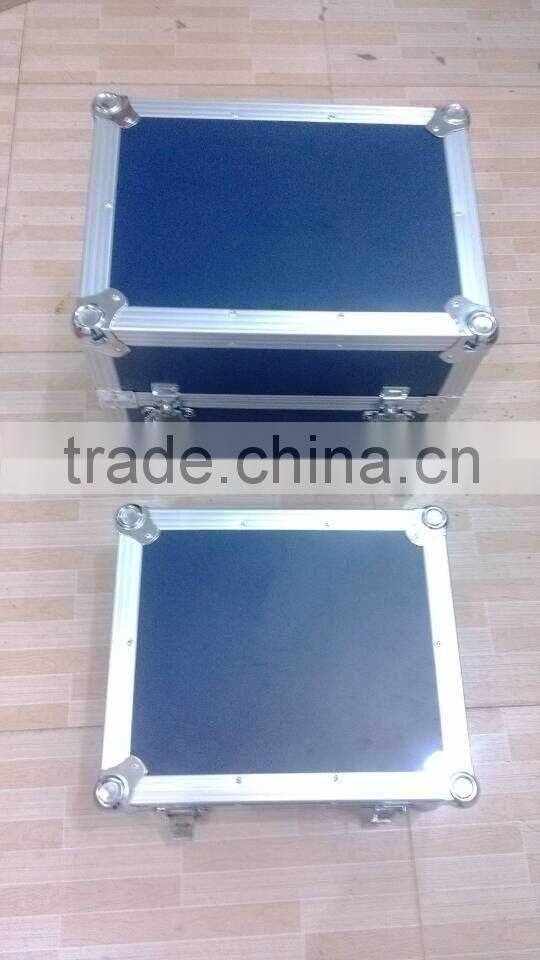

Package: standard export packing , including instructions and certificate
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
