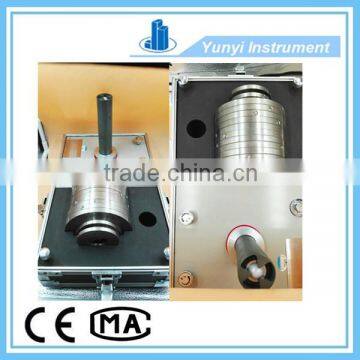

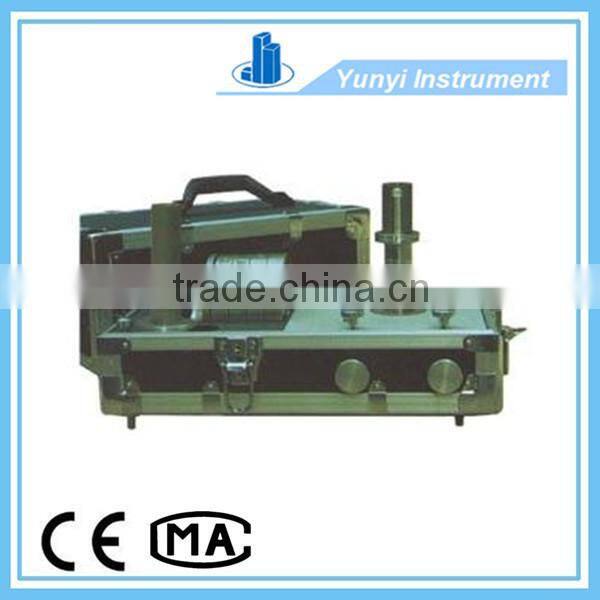

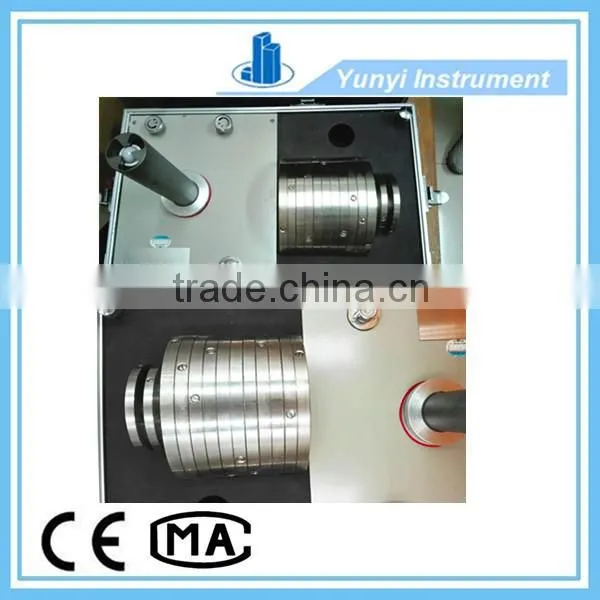

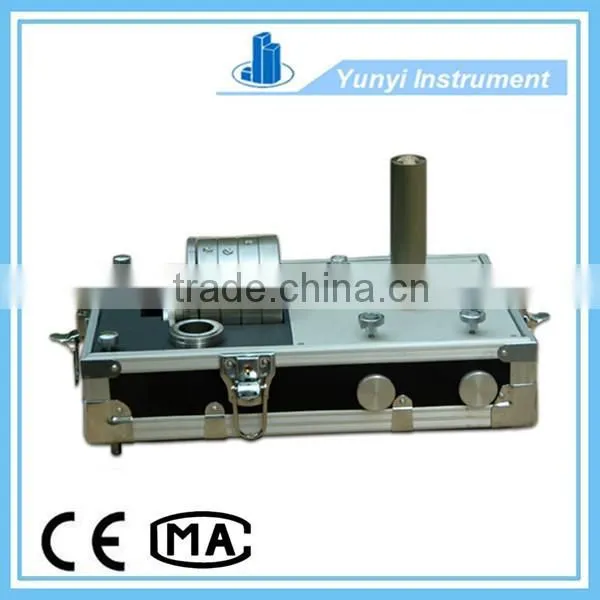

Floating-ball deadweight piston pressure gauge
Description:
Floating-ball deadweight piston pressure gauge as a pressure resource of pressed air and Nitrogen.It is
pneumatic loaded pressure calibrator to use the floating ball.
It is a kind of pressure Benchmark instrument, with nitrogen or instrument compressed air as energy.
it's an ideal equipment that calibrate all kinds of high accuracy of pressure transmitter, differential transmitter
and precision of pressure gauge.
Technical Parameter:
Item |
Y047 |
Y055 |
Y055A |
Output pressure ranges(MPa) |
0.001~0.25 |
0.005~0.6 |
0.005~0.4 |
Accuracy (%) |
±0.05 |
±0.05 |
±0.05 |
Working temperature(°C) |
15~30 |
15~30 |
15~30 |
Temperature Coefficient ( /°C) |
1.7×10-5 |
1.7×10-5 |
1.7×10-5 |
Rated air pressure (MPa) |
0.5 |
0.9 |
0.6 |
Max air pressure (MPa) |
0.7 |
1 |
1 |
Lowest air pressure (MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa) |
Air consumption of Rated Air Pressure(l/h) |
≤150 |
≤300 |
≤300 |
Dimension(mm) |
380×240×260 |
380×240×260 |
380×240×260 |
Weight (kg) |
≈15 |
≈15 |
≈12 |
About Us:

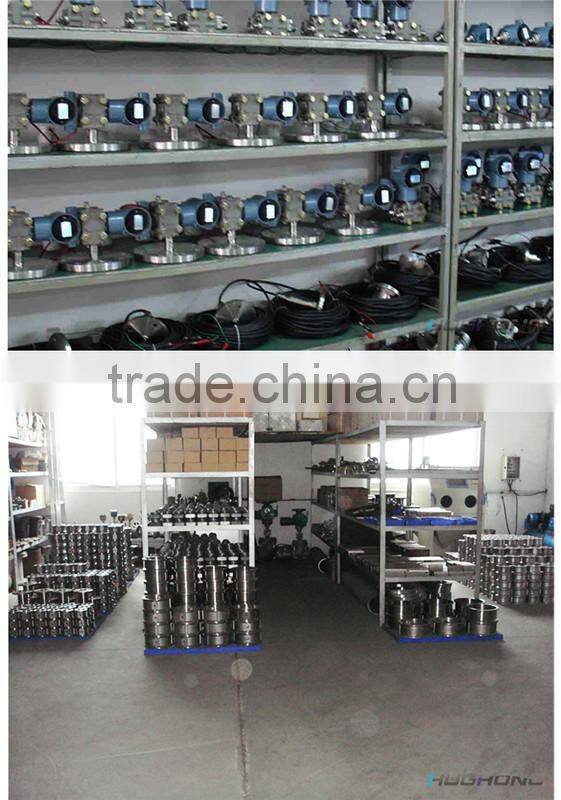

Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
