Stainless steel dead weight tester
- 500 Unit / Units per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | yunyi | Model Number: | JQ series |
Packaging Details
original packing
Product Description

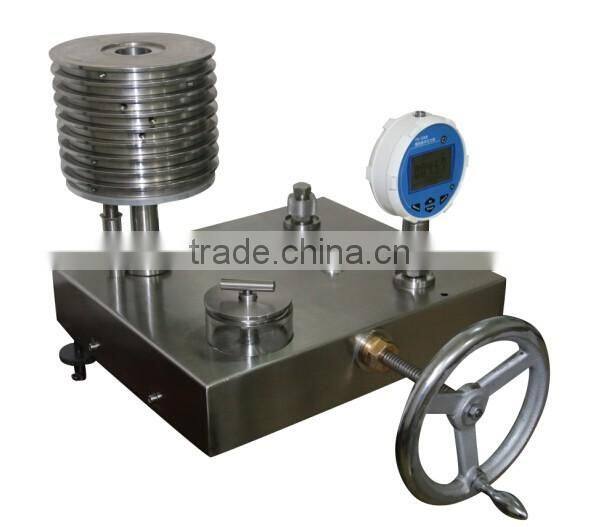

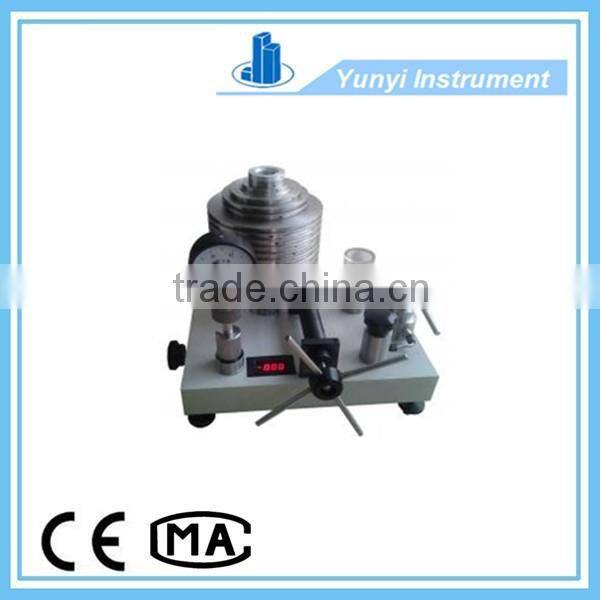

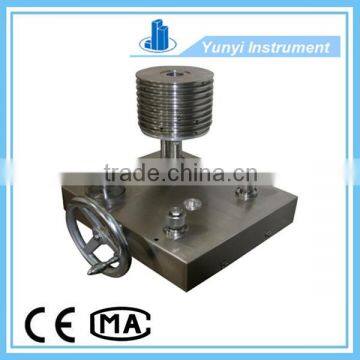

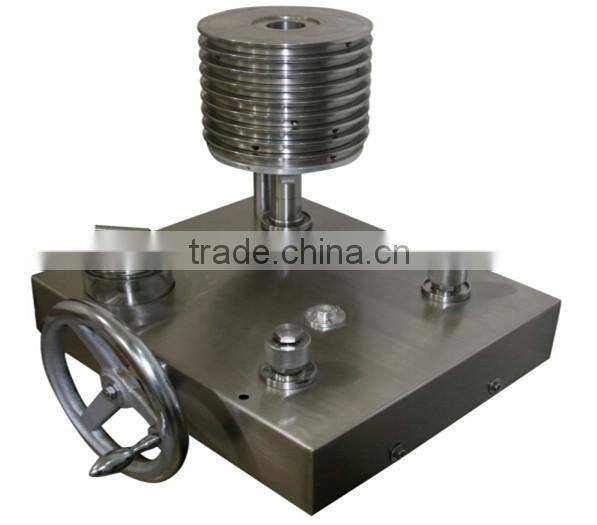

Stainless steel dead weight tester
Description:
JQ piston dead weight tester is our fourth generation product, this product is based on YS piston tester and KY piston tester, with a cost-effective, anti-off mechanism for piston systems, greatly reducing the harm caused by improper operation.
Specifications:
Measure range: 0.04`0.6MPa, 0.1`6MPa, 0.5`25MPa, 1`60MPa, 2`100MPa, 2`160MPa, 5`250MPa
Accuracy: 0.005, 0.01, 0.02, 0.05.
Function: used to calibrate digital pressure gauge, precision pressure gauge, pressure transmitter etc.
Material: tungsten carbide
Weight: No magnetic metal materials (0.005, 0.01, 0.02); carbon steel (0.05)
Features:
Item | YS Series | KY Series | JQ Series | Difference |
Material | Alloy steel(hardness 28) | Tungsten carbide (hardness 102) | Tungsten carbide (hardness 102) | Alloy is easy to wear, with big deformation coefficient, high error when high pressure Tungsten carbide with big hardness, small temperature coefficient, wear resistance, but brittle |
Anti-breaking device | With guide rod for anti-breaking | Without guide rod | With guide rod for anti-breaking | Anti-breaking device will reduce the piston fall time, but can protect the piston rob, more practical. |
Pre-pressurizing device | No Pre-pressurizing device | With Pre-pressurizing device | Optional (electric pre-pressurizing) | Pre-pressurized mainly used when the customer needs to connect more oil-filled pipes and equipment. Usually it does not require pre-pressurized. |
Displacement directions | Scale displacement indications | Digital displacement indications | Scale displacement indication (Optional lighting instructions) | Physical scale indication can be from the shackles of electricity, figure indicates more intuitive, both have their advantages, JQ type can have two kinds of instructions. |
Pressurization system | Use traditional compression screw | Self-lubricating pressurized cylinder without having to replace the sealing ring | Small compression screw, need to replace the sealing ring, but with longer life | Traditional screw pressurized system need more labour power. Self-lubricating pressurize is very easy Small caliber pressurized cylinder in the middle |
workbench | Cast iron workbench | Cast aluminum workbench | Cast iron workbench | Cast iron workbench with low cost and high hardness |
Other Produdct:
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.

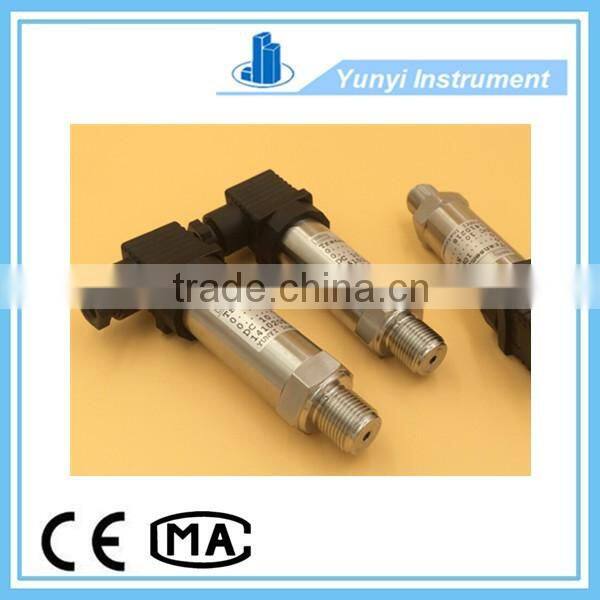

We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
