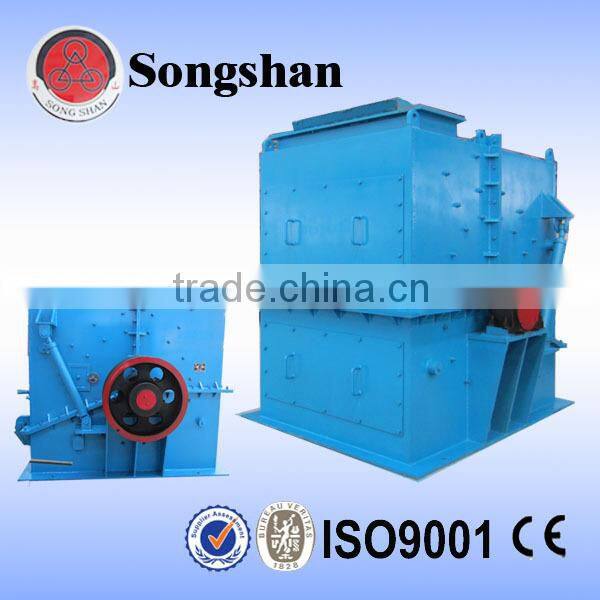

1. Description of the new type fine crusher sand maker
Maintenance fee can be saved 35%-50% in comparison with the traditional processing equipment. It is widely used in machine-made sand industry, cement industry, refractory material industry, metallurgy industry.uniform granularity, fine product, high processing capacity, long life of hammer head ( can deal with more than 40000 ton material), low power consumption, predigestion of the process technology (improve three grade crushing process to two grade crushing process), simple structure, easy maintenance, stable operation, etc.

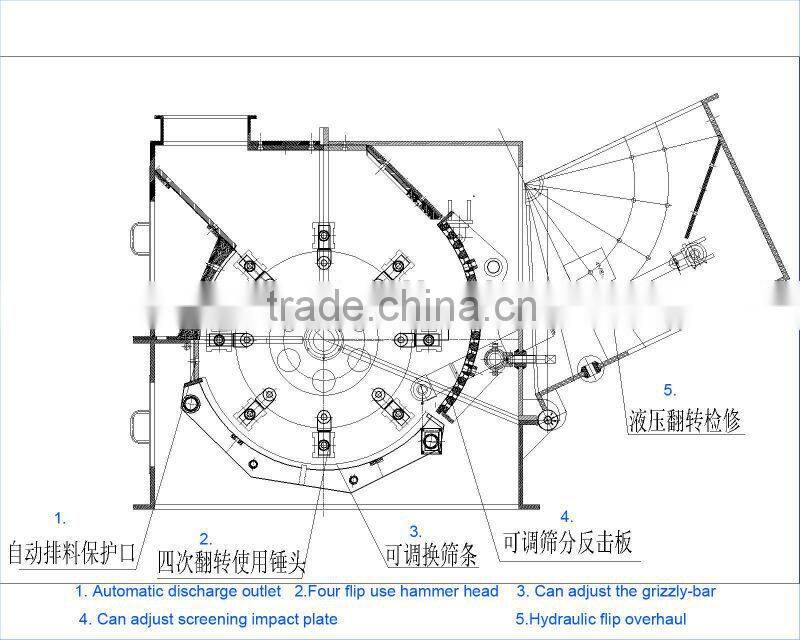

2. Features of new type fine crusher sand maker
1. Even crushing function of multi-cavities which is suitable to crush Hard material.
2. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
3. Hydraulic start-up which is convenient for maintenance and replacement of wearing parts.
4. New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.
3. Operating principle of new type efficient fine crusher sand maker
new type efficient sand making machine is a kind of crushing equipment which uses impact energy to crush maters. When getting into the effective area of hammer plates, due to the high speed of striking, the raw materials are thrown onto the impact equipment which is installed above the rotor. Then the materials are rebounded to the effective area of hammer plates and crushed again in the crushing chamber. At last, when the particles reach to the proper size, they will be discharged from the bottom of the machine.
4. Technical Parameter of new type efficient fine crusher sand maker
New fine crusher(sand maker) |
8024 |
1036 |
1236 |
1448 |
1668 |
Inlet size(mm) |
550×330 |
1000×350 |
1000×400 |
1500×500 |
1600×550 |
Feeding size(mm) |
≤50 |
≤80 |
≤100 |
≤120 |
≤160 |
Discharge size(mm) |
≤5 |
≤5 |
≤5 |
≤5 |
≤5 |
Adjust discharge size |
5-20 |
5-20 |
5-20 |
5-20 |
5-20 |
Cement clinker(m³/h) |
35-45 |
45-55 |
80-110 |
100-110 |
100-150 |
Lime stone(m³/h) |
50-65 |
60-75 |
80-100 |
90-100 |
100-150 |
Glass sand |
55-65 |
65-75 |
80-100 |
90-120 |
120-150 |
Power(mm) |
75 |
90 |
110 |
132 |
160-180 |
Before sales service:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians
for customer.
Sales service:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service:
Send technicians to installation site for the guidance, equipment adjustment and training.
packaging : export standard or as requested.
shipping: as customer's request.
Please don’t hesitate to inform us:
1.What’s kind of your raw material?
2. Now your raw stone size?
3. What’s the capacity ? (T/H)
4. What’s the final stone size request?
5. Others?
If possible,please send us some ore sample, we will do a test for you.
