New Vibrator Feeder Machine
New Vibrator Feeder Machine is used to feed stone crusher evenly and continuously. The 2-deck-feeder is a new invented product used to feed and sieve materials roughly and send the small ores to the secondary crusher directly at the same time, so as to improve the efficiency of primary crushing capacity.
Working Principle of New Vibrator Feeder Machine:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
Advantages of New Vibrator Feeder Machine:
Vibrating smoothly without stone splashing
Convenient installation, operation and maintenance.
Main Technical Parameters of New Vibrator Feeder Machine:
Model |
Max. feeding (mm) |
Pocessing capacity(t/h) |
Motor power(kw) |
Obliquity of material trough |
Total weight(kg) |
Trough size(mm) |
Dimensions (L*W*H)(mm) |
GZD-850*3000 |
400 |
120 |
3.7*2 |
5 |
3607 |
850*3000 |
3110*1800*1600 |
GZD-1000*3600 |
500 |
150 |
5.5*2 |
5 |
3895 |
1000*3600 |
3850*1950*1630 |
GZD-1100*4200 |
580 |
240 |
5.5*2 |
5 |
4170 |
1100*4200 |
4400*2050*1660 |
GZD-1100*4900 |
580 |
280 |
7.5*2 |
5 |
4520 |
4900*1100 |
5200*2050*1700 |
GZD-1300*4900 |
650 |
450 |
11*2 |
5 |
5200 |
4900*1300 |
5200*2350*1750 |
ZSW-380*95 |
500 |
96-160 |
11 |
0 |
4082 |
3800*960 |
3920*1640*1320 |
ZSW-490*110 |
630 |
120-280 |
15 |
0 |
5352 |
4900*1100 |
4980*1830*1320 |
ZSW-600*130 |
750 |
400-560 |
22 |
0 |
7800 |
6000*1300 |
6082*2580*2083 |

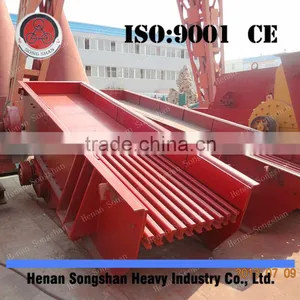

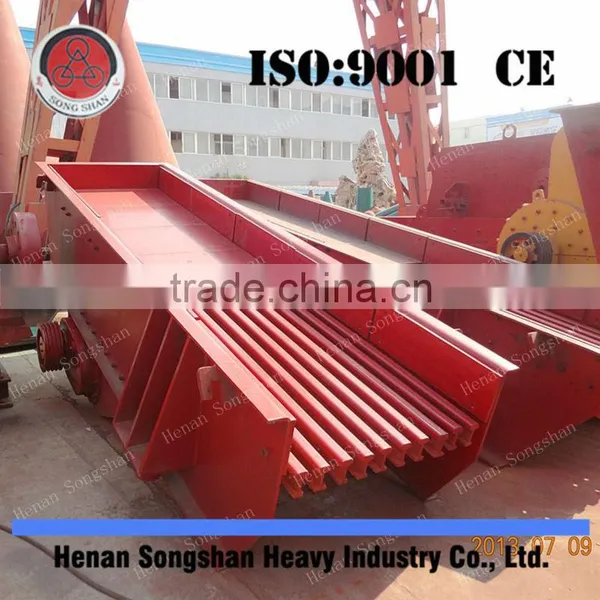

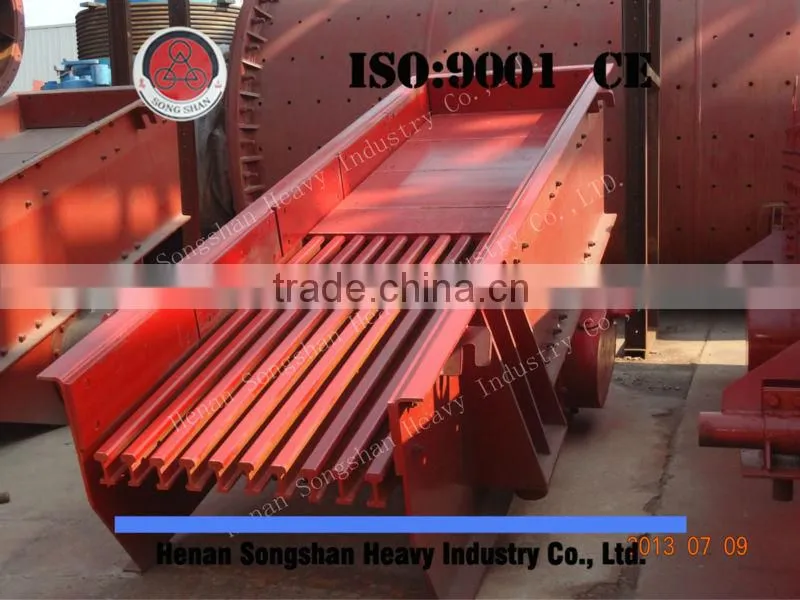

Pictures of our circualr vibrating feeder:

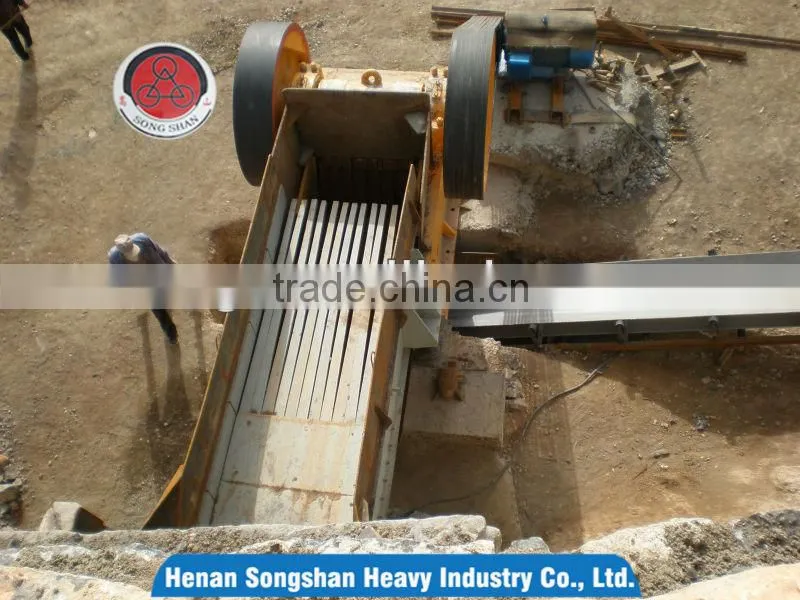

Vibrating Feeder Customer's site
| Company Profile | |
|
Henan Songshan Heavy Industry Co., Ltd., a state-designated manufacturer by National Construction Department, has a history of over 30 years in machine manufacturing. We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers. Since our establishment, we have been developing and updating our products according to the demand of markets. We ensure to provide excellent machinery to our customers, with advanced processing equipment, perfect technology and strict test. Our products have been sold well at home and abroad.
|
|
|
Certificate of honor | ||
|
CE certificate
|
ISO9001-2000 |
BV certificate |
Supply Perfect After-Sale Service
We offer a package service-foundation construction, equipment installation, device testing and operation guidance. Whether warranty expires, we will supply timely and thoughtful on-site maintenance.
We give you operation training on customer site to let end-users know how to reduce repair times, prolong usable life of equipment and improve efficiency. Moreover, we will teach end-users to know the structure design, working principle, basic maintenance and fault treatment methods.
We also supply free survey of present equipments conditions and configuration, suggest you one more economic configuration.
High quality, Most reasonable, Most economic, that is our standard for our honored customers.
