Rocks Mining Impact Crusher Series Mobile Crusher
Introduction of sand maker:
HXVSI series high efficiency vertical shaft impact crusher(sand maker) is stone crushing equipment with domestic and international advanced technoligies, which is researched on the basis od Germany advanced technology.
HX series vertical shaft impact crusher is a high efficient rock crushing equipment with home and international leading level: the machine is developed by introducing the crushing theory and technology from Barmag Company of America and combining the actual situation of sand making.
Application of sand maker:
HXVSI series sand maker can supply high quality sand aggregate for high building, expressway(railway) construction, municipal engineering, large scale irrigation establishment, concrete batching plant and many other areas.
HX series sand maker is widely used for crushing of hard and brittle material, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate.
Technical parameters of sand maker:
| Model | Capacity(t/h) | Max. feeding size(mm) | Rotation speed(r/min) | Double motor power(kw) | Dimensions(L*W*H)(mm) | Power supply | Vibrating sensor | Librication and hydraulic station | |||||
| Feed both at center and at sides | Feed at center | Soft material | Hard material | Double motor power | Safety assuance | Dimensions(L*W*H) (mm) | Power of oil tank heater | ||||||
| HXVSI7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 110 | 3700*2150*2100 |
380v 50HZ |
Detect range 0.1-20mm/s continous and adjustable |
2*0.3 1kw |
Double oil pumps assure enough oil supply:automatic switch off with no oil stream or hydraulic temperature with cool water in summer with motor in winter | 820*520-1270 | 2kw |
| HXVSI8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 180 | 4140*2280*2425 | ||||||
| HXVSI9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 264 | 4560*2447*2778 | ||||||
| HXVSI1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 400 | 5000*2700*3300 | ||||||
| Specification | Max. feeding size(mm) | Power(kw) | Rotation speed of impeller(r/min) | Capacity(t/h) | Dimensions(L*W*H)(mm) |
| HX-06 | 35 | 37-55 | 2000-3000 | 12-30 | 2500*1620*2600 |
| HX-07 | 45 | 55-75 | 1500-2500 | 25-55 | 2700*1760*2800 |
| HX-09 | 50 | 110-150 | 1200-2000 | 55-100 | 3900*2000*3070 |
| HX-10 | 60 | 150-180 | 1000-1700 | 100-160 | 4600*2350*3450 |
| HX-12 | 60 | 264-320 | 850-1450 | 160-300 | 4500*2400*3700 |
| HX-13 | 60 | 320-400 | 800-1193 | 200-360 | 5200*2700*3800 |

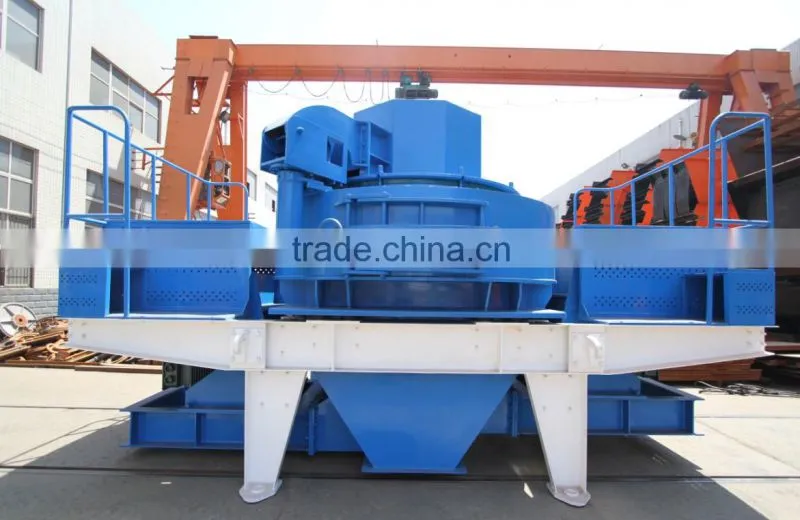

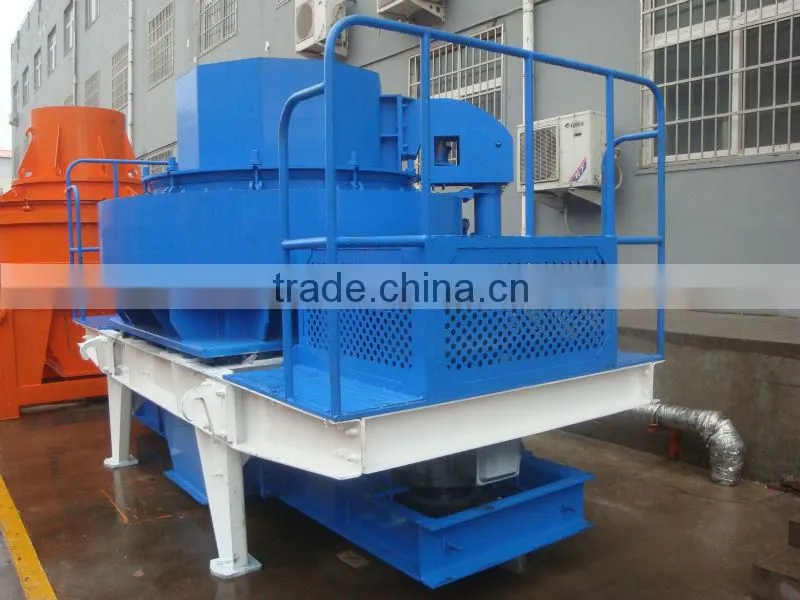

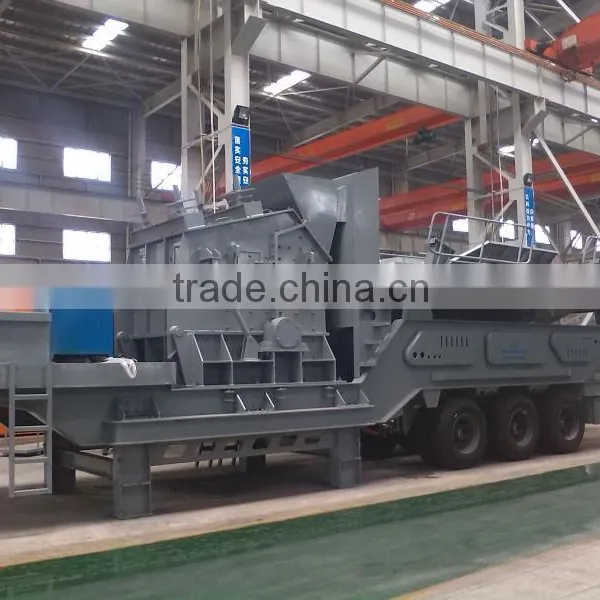

Picture of sand maker:

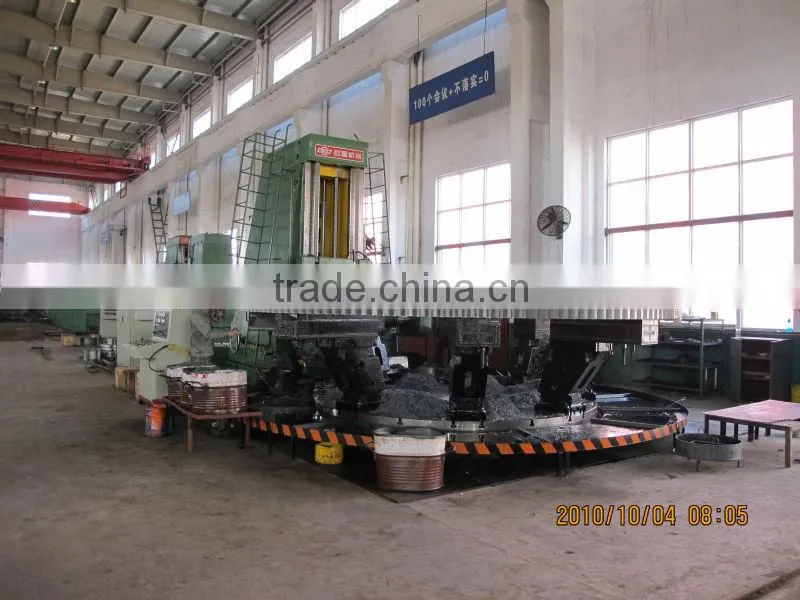

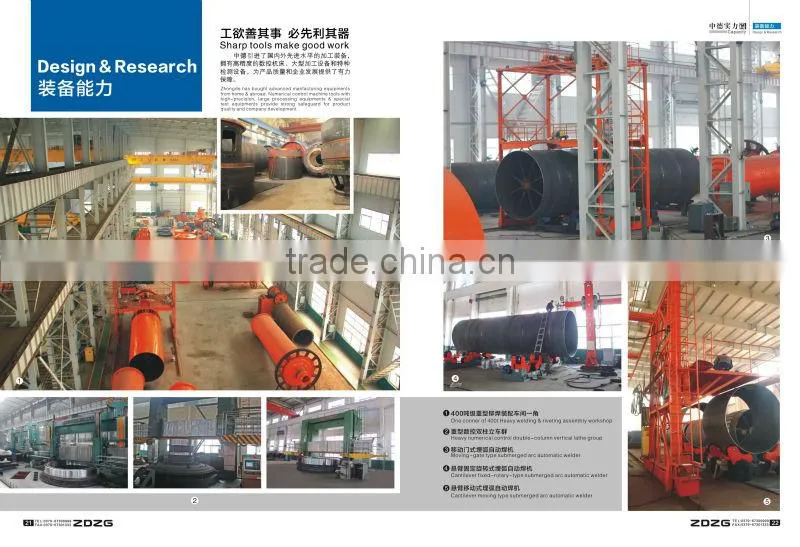

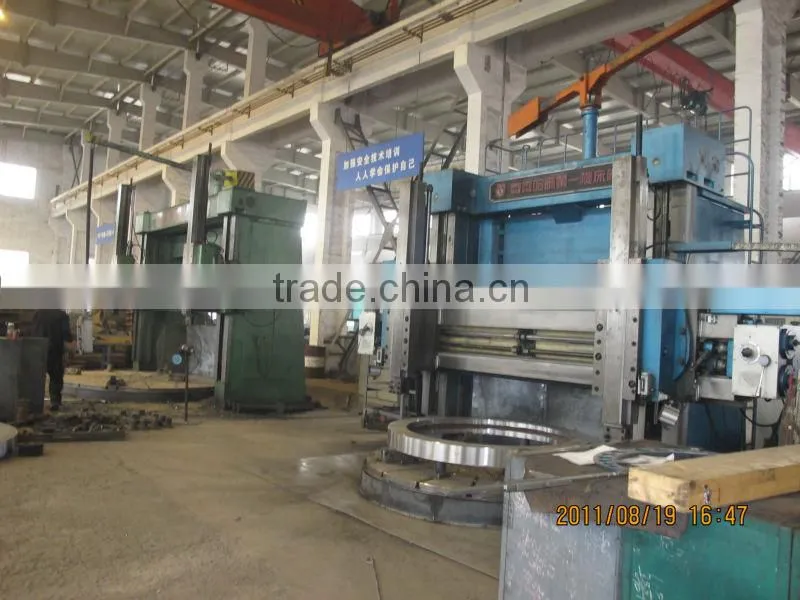

Sand maker manufacturing process:
Payment Terms of sand maker:
- Payment methods are T/T, L/C,D/A,D/P;
- We take pictures of finished sand maker before delivery.
Packaging of sand maker:
- Sand blasting, coat with high quality paint;
- Product wrap by PP-Bubble;
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
How about the quality of your sand maker?
- Our sand maker is manufactured strictly according national and international standard.
- We take a test on every sand maker before delivery.
How about price of your sand maker?
- We can give the lowest price of sand maker than market one.
- We do quotation of sand maker as soon as possible for any custome.
- Discount of sand maker can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation sand maker overseas.
- The guarantee period of our sand maker is one year.
