Introduction of HX Series Vertical Shaft Crusher Sand Maker machine
HX series vertical shaft impact crusher is a high efficient rock crushing equipment with home and international leading level; the machine is developed by introducing the crushing theory and technology from Barmag Company of America and combining the actual situation of sand making.
Application of Sand Maker machine
It is widely used for crushing of hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate; and it is especially suitable for the sand and aggregate making for construction and road paving.
Working Principle of sand maker machine
Material falls into the fast rotating impellers from the top of machine and crushes with the material distributed around the impeller under the effect of centrifugal force. After the impact with each other, the material is crushed between impeller and cabinet and then discharged from the bottom. It can cycle many times with the close circuit and the screening device will control the granularity of finished products.
Technical Parameters of Sand Maker machine
Type |
Max. Feeding Size |
Power |
Rotation speed of impeller |
Capacity |
Dimension |
HX06 |
35 |
37-55 |
2000-3000 |
12-30 |
2500×1620×2600 |
HX07 |
45 |
55-75 |
1500-2500 |
25-55 |
2700×1760×2800 |
HX09 |
50 |
110-150 |
1200-2000 |
55-100 |
3900×2000×3070 |
HX10 |
60 |
150-180 |
1000-1700 |
100-160 |
4600×2350×3450 |
HX12 |
60 |
264-320 |
850-1450 |
160-300 |
4500×2400×3700 |
HX13 |
60 |
320-400 |
800-1193 |
200-360 |
5200×2700×3800 |
Notes: processing capacity may vary with different materials and feeding sizes.

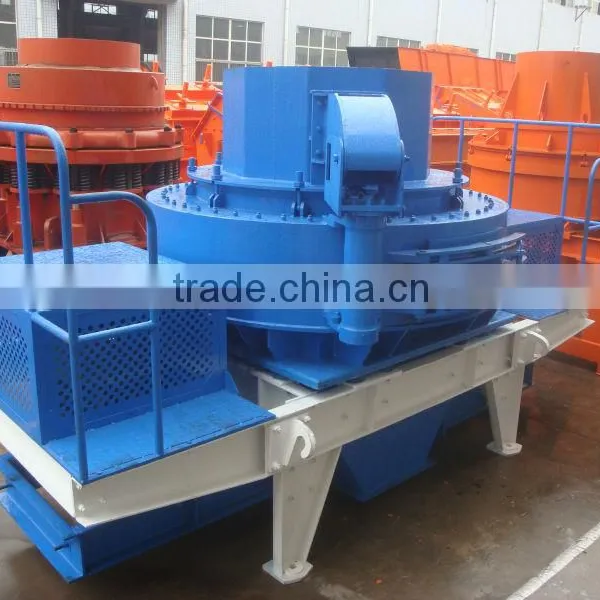

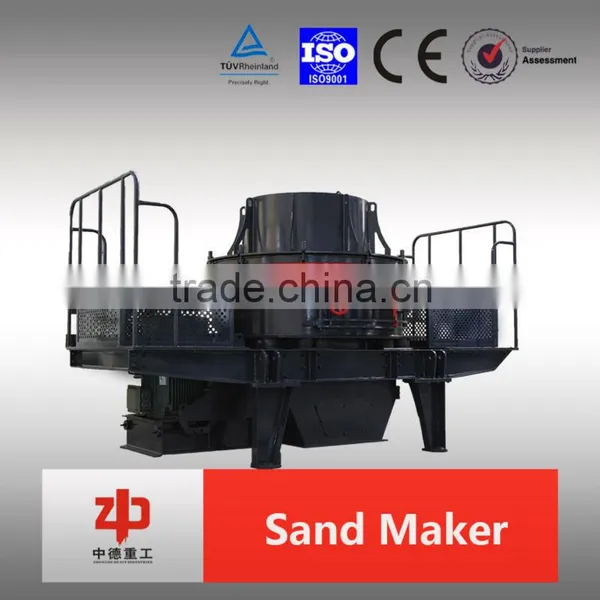

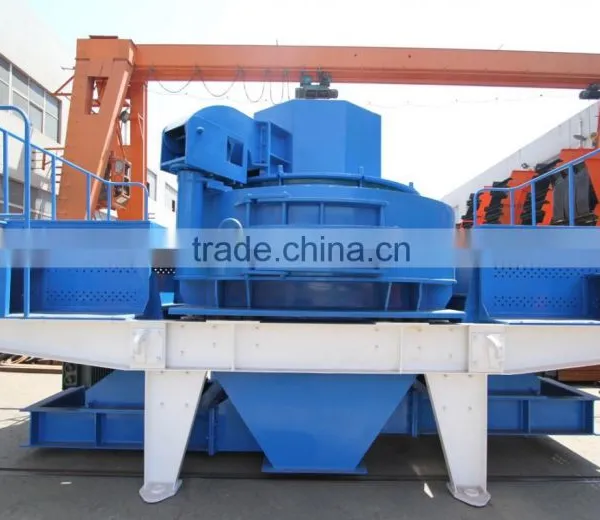

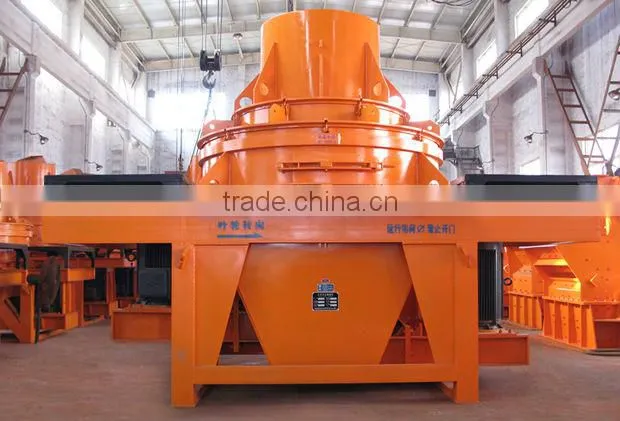

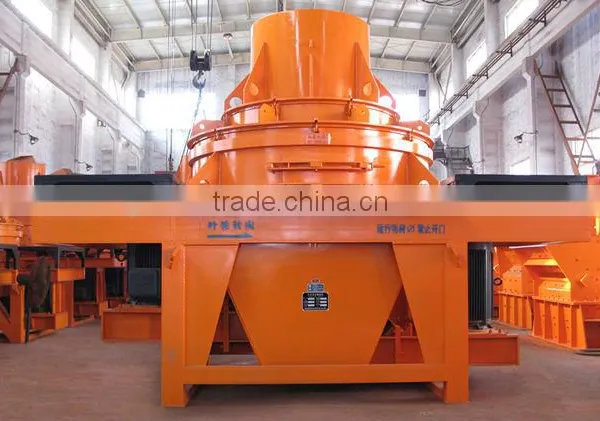

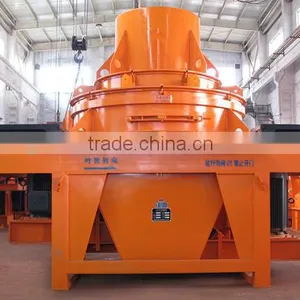

Pictures of Sand Maker
Our services about sand maker machine
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year

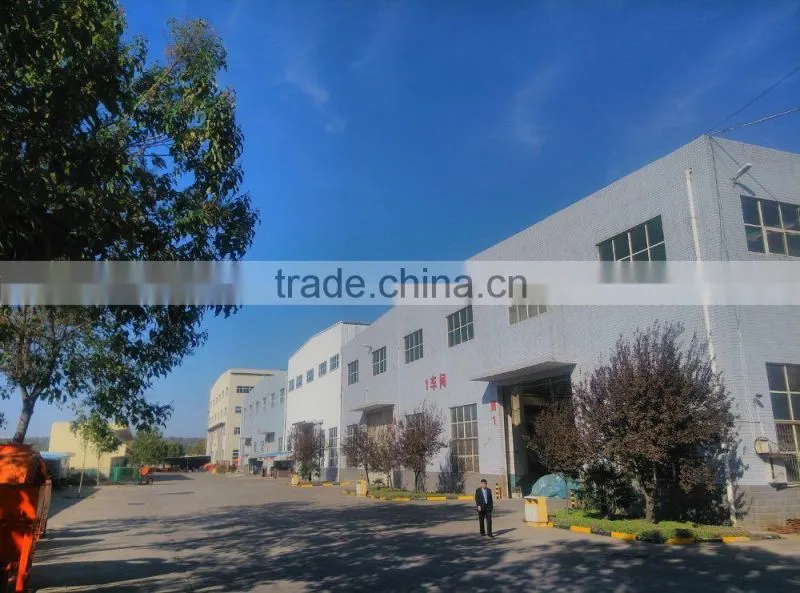

Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.

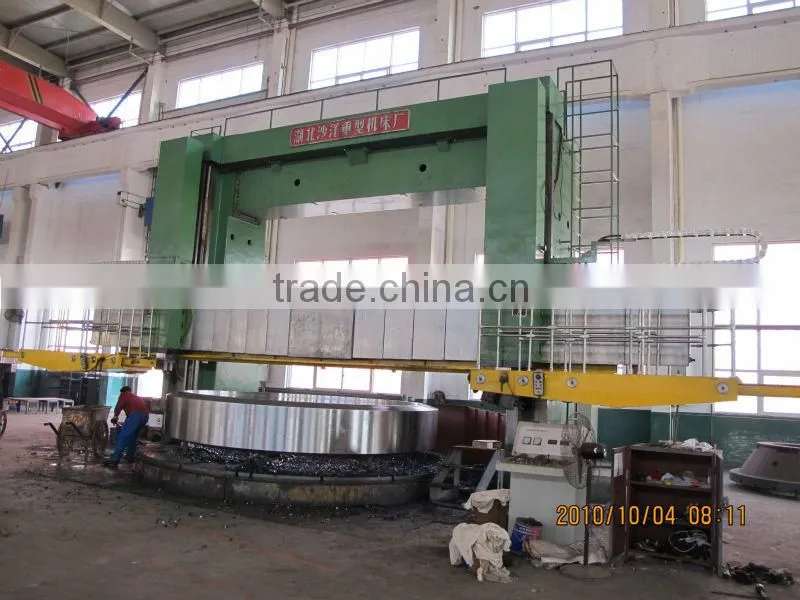

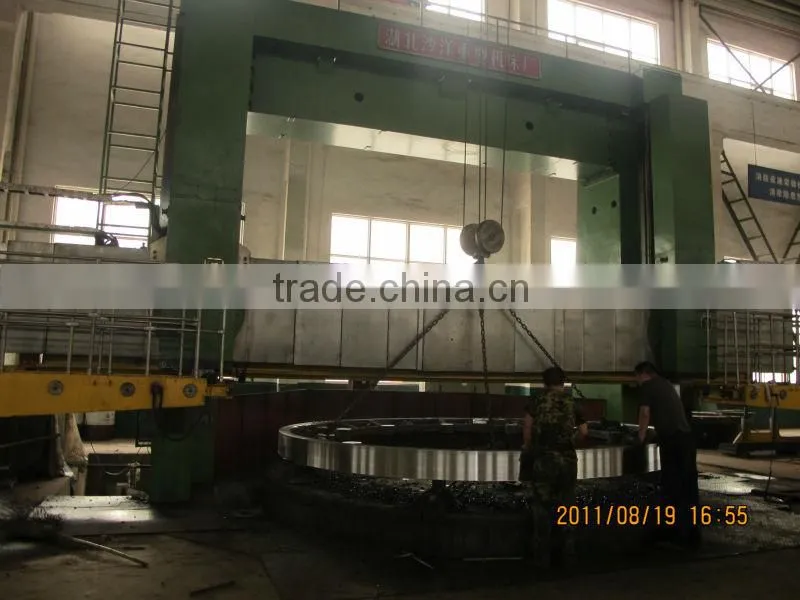

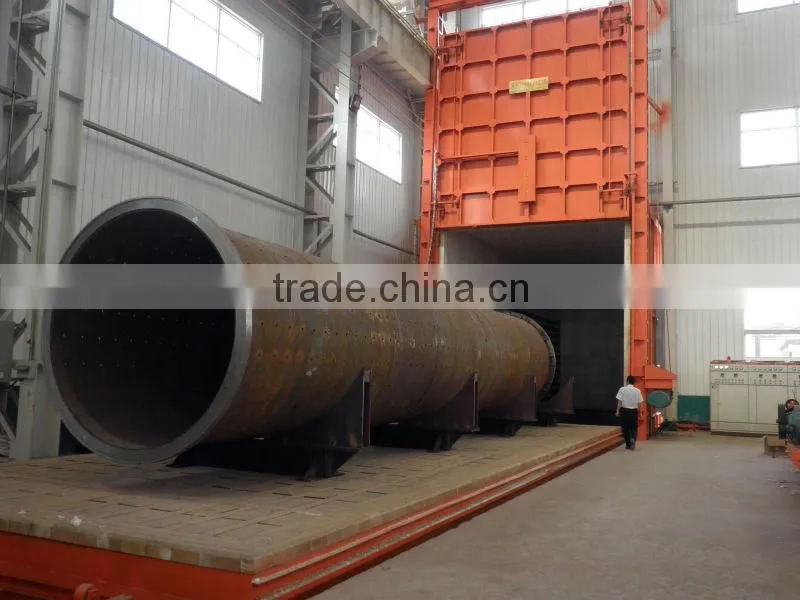

The total area of the three standard heavy-duty industrial workshops covers 70000 square meters. More than 500 sets advanced processing equipments, including 300 sets of high-precision digital control machine tools, large-sized processing equipment and special processing, riveting& installing machines, are introduced to guarantee for product qualityand company development.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Superiority of Zhongde
- World's leading service capability
- The best device management and practice guidances
- Fast, easy and convenient routine maintenance can reduce the downtime
- World's most advanced technology can customize high quality equipment for you
