Mining Machine Lead Ore Flotation Machine
Introduction of flotation machine:
This kind of machine is main equipment for the classification of the ores, which is used in the coarse dressing, fie dressing, and scavenging, auti-flotation and other kinds of ore dressing. The flotatio machine can be divided into XJK type(A type),SF type, JJF type and so on, which are widely used in the ore classification od some industrial departments of metal, nonmetal. rare metals and so on.
Working Principle and Main Features of Flotation Machine:
Floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurrry respectively.
Parameters of flotation machine:
| Category | Specification | Effective cubage(m³) |
Processing capacity(m³/min) |
Main shaft | Loam board | Dimensions(L×W×H)(mm) | ||
| Power(kw) | Rotation speed(r/min) | Rotation speed(r/min) | Power(kw) | |||||
|
XJK type folotation machine |
XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 700*700*700 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 900*820*850 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1000 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1750*1600*1100 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2200*2200*1200 | |
|
SF type folotation machine |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 700*700*750 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900*820*950 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100*1100*1100 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750*1600*1150 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1850*2050*1200 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2200*2900*1400 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2200*2900*1700 | |
| SF-20 | 20 | 5-20 | 30*2 | 191 | 25 | 1.5 | 2850*3800*2000 | |
|
JJF type folotation machine |
JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1400*1400*1100 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1600*2150*1250 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2200*2900*1400 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2200*2900*1700 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2850*3800*1700 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2850*3800*2000 | |

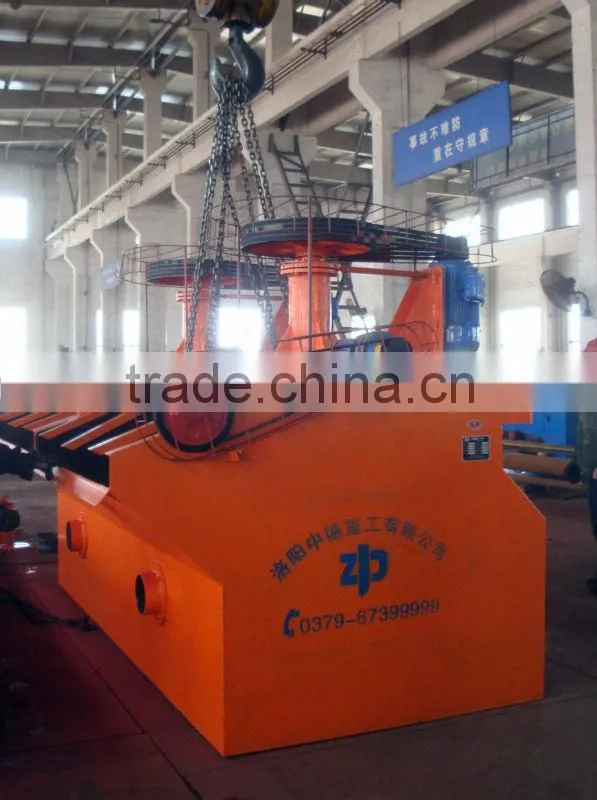

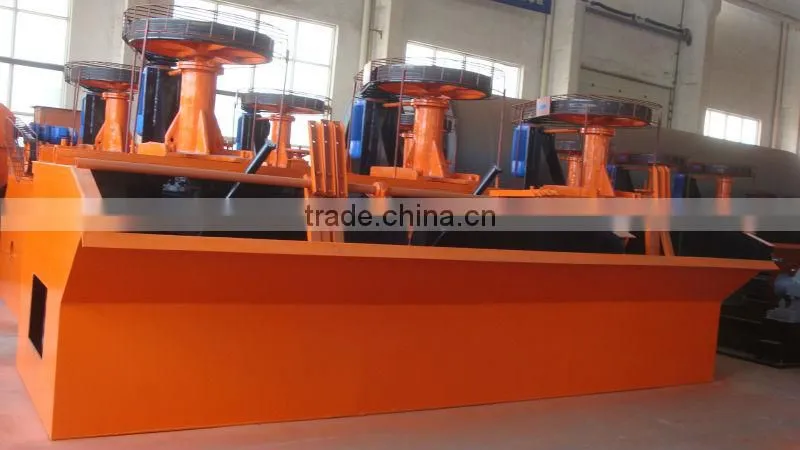

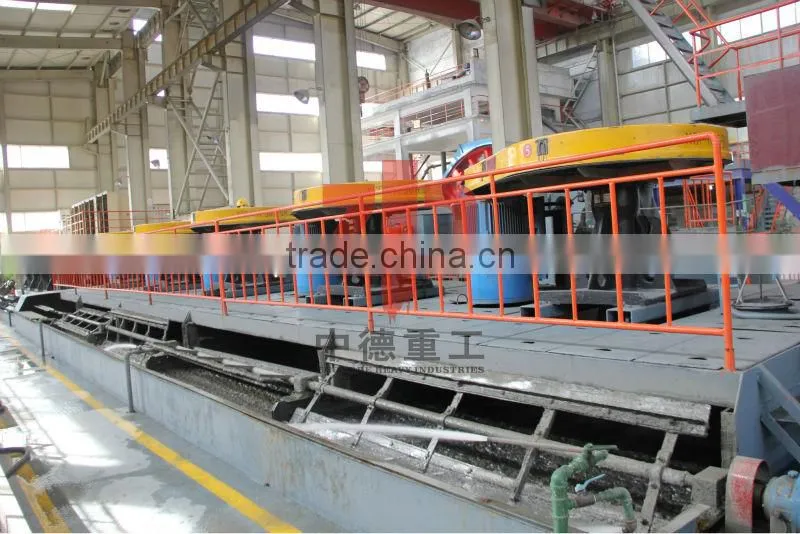

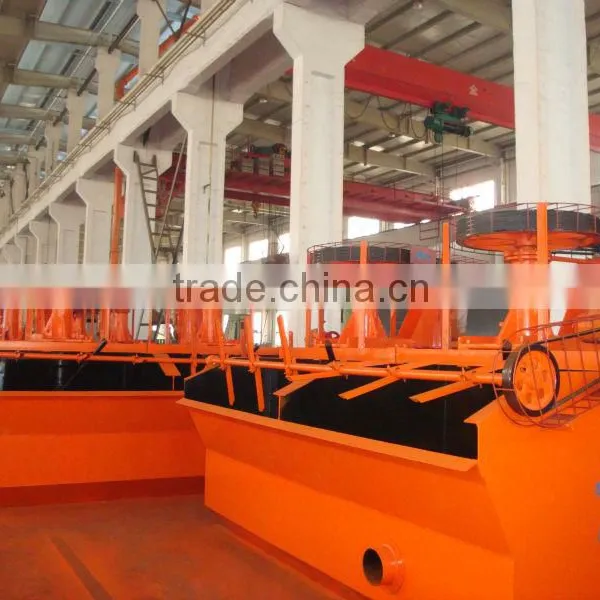

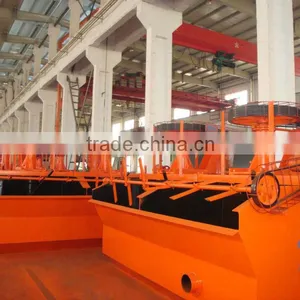

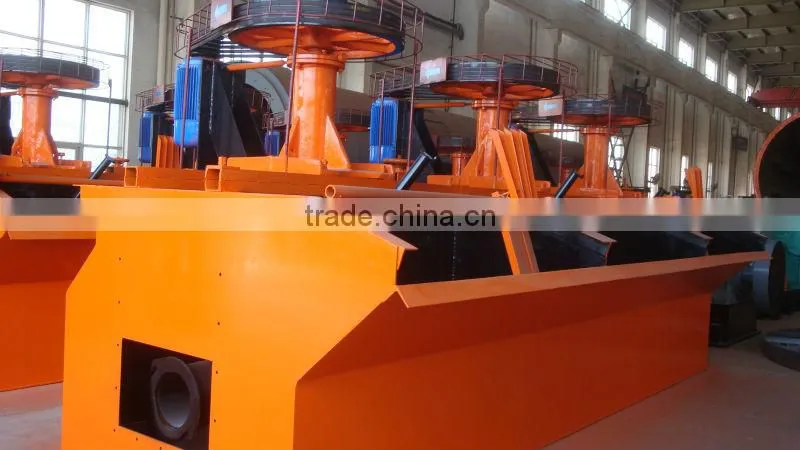

Flotation machine pictures:

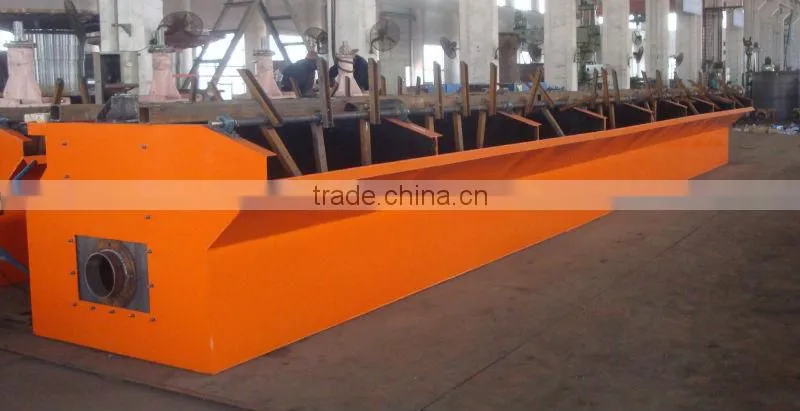

Flotation machine manufacturing process:

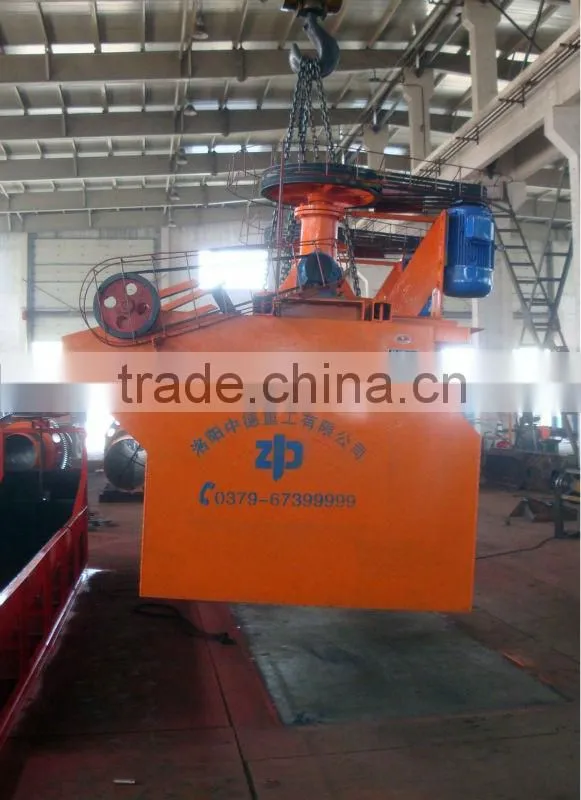

Flotation machine shipping:
Our service of flotation machine:
- Installation and adjustment of flotation machine: The Installation and adjustment of our flotation machine is provided by our company. Technicist of flotation machine will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of flotation machine: Three-guarantees of flotation machine and warrantly period id one year.
- Technical support of flotation machine is provided from the beginning to the end.
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
How about the quality of your ball mill?
How about price of your ball mill?
How about the after-sale service of your company?
