XY - 4000 Industrial Online Dissolved Oxygen Analyzer
US$ 500 - 700
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
XY-4000
Payment & Shipping
Payment Methods:
Port of Shipment:
beijing shanghai tianjin shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shaanxi, China
Brand Name
Yunyi
Model Number
XY-4000

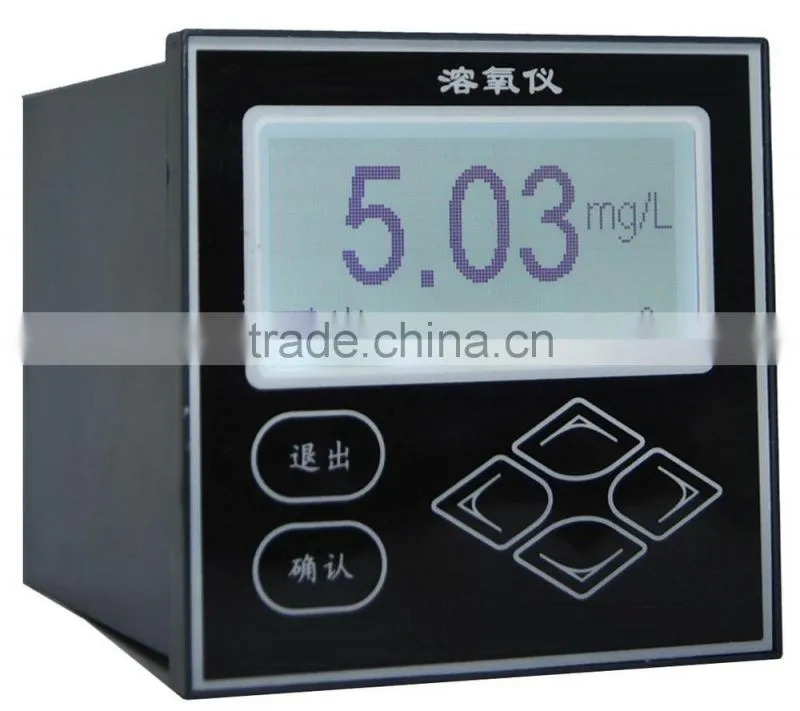

XY - 4000 industrial online dissolved oxygen analyzer
Description of XY - 4000 industrial online dissolved oxygen analyzer :
XY - 4000 industrial dissolved oxygen meter with microprocessor monitoring instrument online of water quality. The instrument configuration of the different types of dissolved oxygen electrode is widely used in power plants, petrochemical industry, metallurgy, electronics, mining, paper, fermentation, pharmaceutical, food and beverage, environmental protection water treatment, aquaculture, and other industry. For continuous monitoring of dissolved oxygen (do) value of the aqueous solution and temperature and control.
Features of XY - 4000 industrial online dissolved oxygen analyzer :
1. LCD liquid crystal display screen
2. Manual/automatic temperature compensation
3. A variety of automatic calibration function
4. Two sets of relay control switch
5. High limit / / low limit / / hysteresis control
6. RS232 / RS485 communication connection
7. Double optional signal output current/voltage output
8. The same interface display value of dissolved oxygen and temperature
9. Set password to prevent non-work personnel wrong operation
Technical parameters of XY - 4000 industrial online dissolved oxygen analyzer :
(1) measuring range: Dissolved oxygen (do) : 0.0 ~ 200 (including g/L; 0.2 ~ 25.0 mg/L;
The temperature: - 5 ~ 110.0 ℃;
(2) the resolution: Dissolved oxygen: including 0.01 g/L; 0.01 mg/L;
The temperature: 0.1 ℃;
(3) the basic error: Dissolved oxygen (do) : + / - 0.2 (including g/LF, S; + / - 0.2 mg/LF, S;
Temperature: + / - 0.3 ℃;
(4) automatic or manual temperature compensation scope: 0 ~ 110 ℃
(5) the residual signal electrode: <1‰
(6) the response time (final value 90%) : 25 ℃ when the < 60 s; At 35 ℃ < 30 s;
(7) stability: Under the atmospheric temperature, drift every week < 2% f. S.
(8) standard current or voltage output: The 0 ~ 10 ma (load resistance < 1.5 K Ω);
4 ~ 20 ma (load resistance < 750 Ω);
Optional: 0 ~ 5 VDC, 0 ~ 10 VDC, etc;
(9) two sets of relay control contact: 3 a 240 vac, 6 a 28 VDC or 120 vac.
(10) meter power supply: 220 vac plus or minus 10%, 50 + 1 hz, power 3 w or less;
24 VDC power: 1 w or less;
12 VDC power: 1 w or less;
(11) instrument appearance size: 96 * 96 * 130 mm;
(12) instrument installation: in tray (embedded);
Installation hole size: 91 x 91 mm
(13)Electrode installation method: [ circulation type ] [ reaction kettle ]etc
(14) optional features: / RS232 / RS485 communication interface connected to the computer
(15) weight: 0.6 kg
(16) Instrument working environment: ambient temperature10 ~ 60 ℃:
Relative humidity: no more than 90%;
In addition to the earth's magnetic field around without a strong magnetic field interference.
