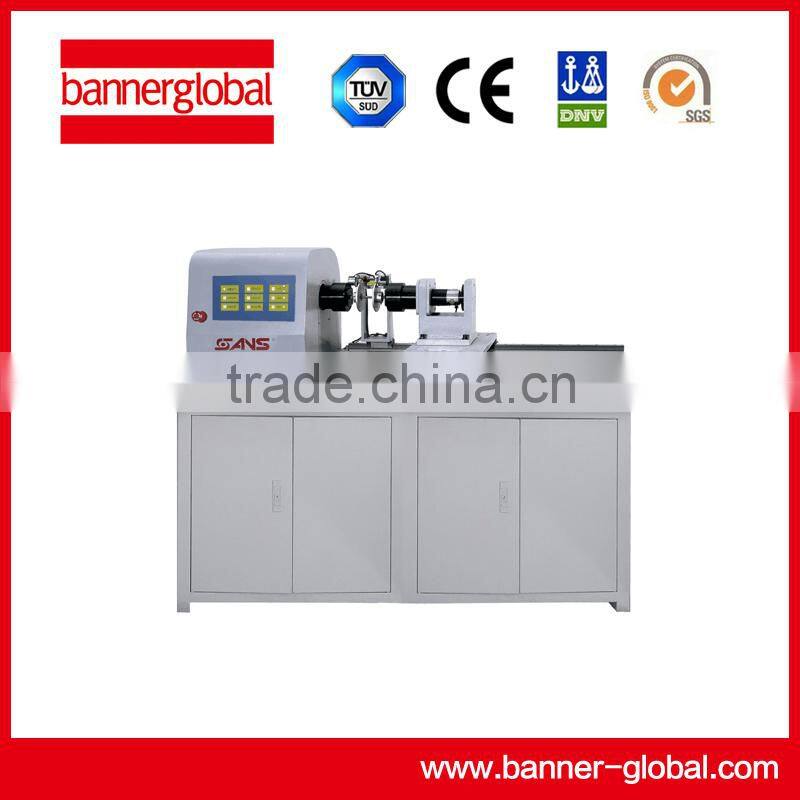

Microcomputer Controlled Electronic Torsion Testing Machine
Equipment overview:
CTT1000 electronic torsion testing machine is a new type of material testing machine with electronic technology and mechanical transmission. It has a wide range of loading speed and range. It has high accuracy and sensitivity to the load, deformation and displacement.
The series models are mainly used for the torsion test of metallic materials with torque lower than 3000Nm.
Technical parameters:

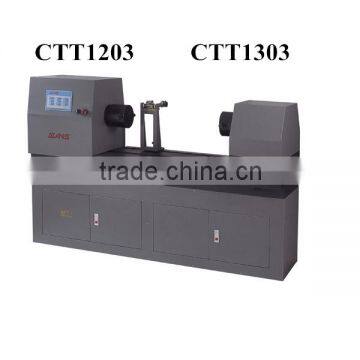

Model | CTT1203,CTT1303 | |
Measurement parameters | Maximum torque | 2000Nm,3000Nm |
Torque measurement range | 20Nm-2000Nm,30Nm-3000Nm | |
Test machine level | 1/0.5 | |
Relative error of torque | ±1%(1)/±0.5%(0.5) | |
Torque resolution (Nm) | Maximum torque 1/300000 | |
Torsion angle measuring range | 0°-10000° | |
Control parameter | Torsion angle indication relative error | ±1.0% |
Torsion angle resolution | 0.0045° | |
Relative error of torsion angle | ±1.0% | |
Torsion speed | 6°/min -720°/min(CTT1203)/ 6°/min -500°/min(CTT1303) | |
Relative error of torsion | Set value±1.0% | |
The maximum distance between chucks | 650mm | |
Sample parallel section diameter | φ8mm-φ28mm | |
Other | Motor power | 1kW(CTT1203)/ 2kW(CTT1303) |
Power Supply | 380±10%V /50Hz | |
Machine dimension | 1700mm×550mm×1200mm(CTT1203)/ 1850mm×660mm×1200mm(CTT1303) | |
Machine weight | 750kg(CTT1203)/1500kg(CTT1303) | |
Meet standards:
GB/T10128-1998 "metal room temperature torsion test method"
Application industry:
Measurement and quality control; metallurgical steel; mechanical manufacturing; civil aviation; high school; Scientific Research Institute; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical industry.
Original configuration:
Special twist device 1 sets
Scalable configuration:
The microcomputer controlled electronic torsion testing machine can be used in accordance with the test standard or test sample provided by the customer or the test sample to choose the fixture or special design of the fixture and the accessories, the cost of the other.
Main function:
This series of testing machine is suitable for the torsion test of metallic materials, non metallic materials, composite materials and components. Test and provide data for the national standard "GB/T10128-1998 metal room temperature reverse test method".
Main features:
1: the use of high-speed DSP platform, its high integration, powerful control, data processing ability, high reliability, is the use of other processors can not match the test machine.
2: can be carried out in the torque, torque, etc
., and other rate control and maintain.
USB1.1 6: communication, communication rate is 12Mb/s, the use of full speed mode, bulk transfer mode.
7: system board uses 4 layers of PCB unique anti interference routing method, strong anti-interference ability.
8: in addition to the power interface, the other interfaces are using the standard USB interface, plug and play interface such interface can be realized hot swap, that is, plug and play function. Interface features can be set up by software online. The interface neat layout reasonable, convenient plug.
9: the whole control system has a very high cost, high reliability.
10: the whole test process is controlled by microcomputer, and the real-time dynamic display of torque, torque, torque angle, torsion speed and test curve is used.
11: uses microcomputer for data processing and analysis. The test results can be saved automatically. After the end of the experiment, the test curve can be re - up.
12: full Chinese Windows platform under the test software, with a strong data and graphics processing functions, can print out the complete test report and test curve.
13: with the perfect overload protection, emergency stop and other safety protection function.
Packaging& Shipping:
Fumigation and by standard export wooden case.
Ship from Qingdao port, is expected to arrive about 30days
After-sales Service:
If you face any problems in future during testing process, we promise we will give you a reply within 24 hours and solution provide within 3 working days.
We can offer operation video and English operation software.Also we can provide video-conference.
If customers require on-site service, the transport and travel expense shall be borne by customer.
