Standard Universal Testing Machine
Specifications: 50kN , 100kN
Uses: mainly for all kinds of metal, non-metallic materials, stretching, compression, bending, shear, peeling, tearing and other tests.
Exceed MTS 40 series system to meet the requirements of various production test. High reliability and easy operation, these test systems use high speed, low vibration motor drive device and integrated, digital closed-loop control device, in the 5N to 300kN range to achieve force control, displacement or strain control test. E40 series system existing structure has the advantages of compact structure, high stiffness of single column and double column type configuration for test in low stress value, and high strength double column landing configuration, applicable to the colliers value test. TW Test Suite software, rich and increasing test method standard library and a variety of accessories make this system can be applied in a wide range of materials.

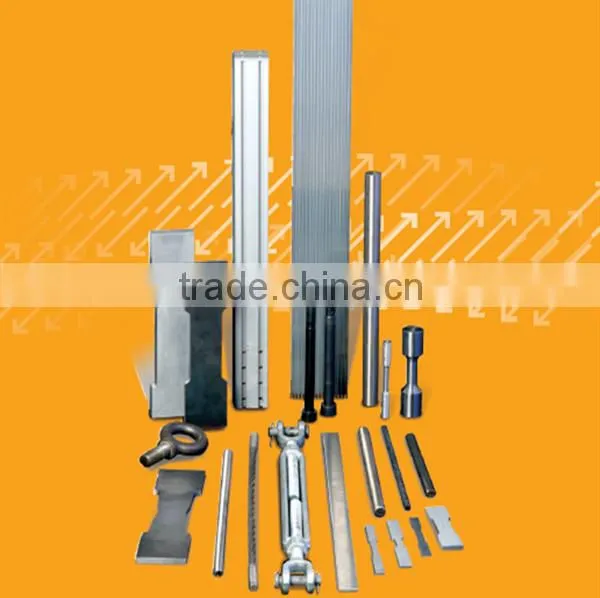

Including: Plastic Film, Fibers and thin lines, Adhesive ,Foam materials, Elastic body,
Biological materials, Wood products and paper products, Thin metal, Metal wire,High strength metal, Component ,Fasteners, Composite materials.
Main features:
1: full set of compact, high rigid single column and double column load frame configuration
2: high speed, low vibration MTS motor drive device
3: maintenance free world class AC servo motor and servo motor
4: precision pre load ball screw
5: non clutch driving device, capable of running at full speed under the maximum force
6: high resolution, digital closed-loop controller (integrated in the load frame)
7: easy test setup and handheld
8: multi function, easy to operate the TW Test Suite software, with rich and increasing test method standard library (ISO, ASTM, DIN, EN, BS, etc.)
High accuracy load sensor for 9:TEDS self recognition
10: a full set of optional accessories, fixture, environmental system and extensometer
11: optional double space (model 44 and 45) to reduce setup time
12: anti rotating fixture / accessory device
13: optional T type table
14: beam displacement limit protection, overload protection, overheat protection, voltage overload protection, etc.
15: durable test space protection
Technical Parameters:
Specification model |
E45.105 |
The maximum amount of force(kN) |
100kN |
Optional ratings |
50kN,100 kN |
Frame type (Table / floor type) |
floor type |
Test space (single / double space) |
single / double space |
Maximum test speed(mm/min) |
500 |
Minimum test speed(mm/min) |
0.001 |
Position resolution(mm) |
0.000017 |
Standard model for middle beam stroke(No jig mm) |
1050 |
Standard model for middle beam stroke(Have jig mm) |
500(XSA105A ) |
Test width(mm) |
600 |
Host Size (H× W × D mm) |
2133 x 1230 x 870 |
Weight(Kg) |
1400 |
Power |
220V±10%;2200W |
A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
