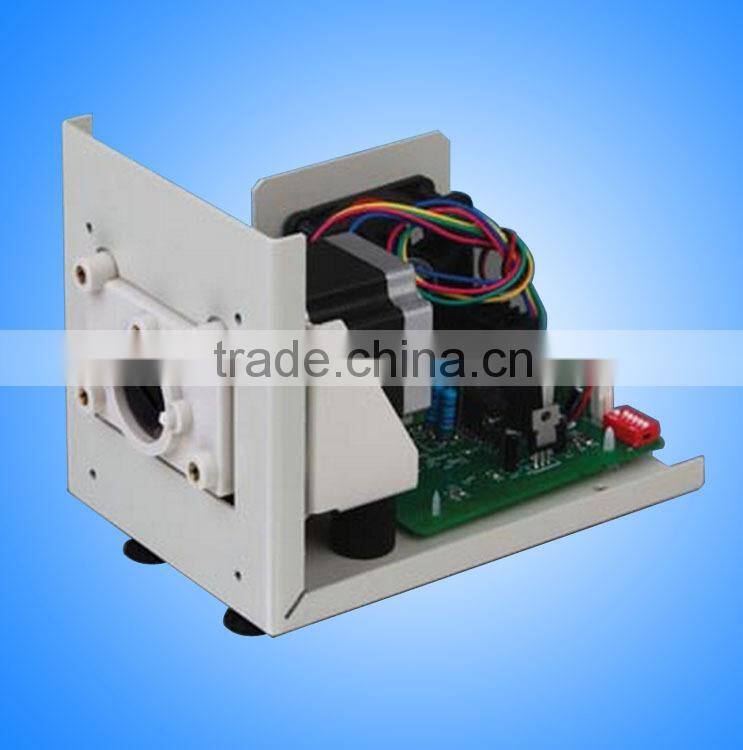

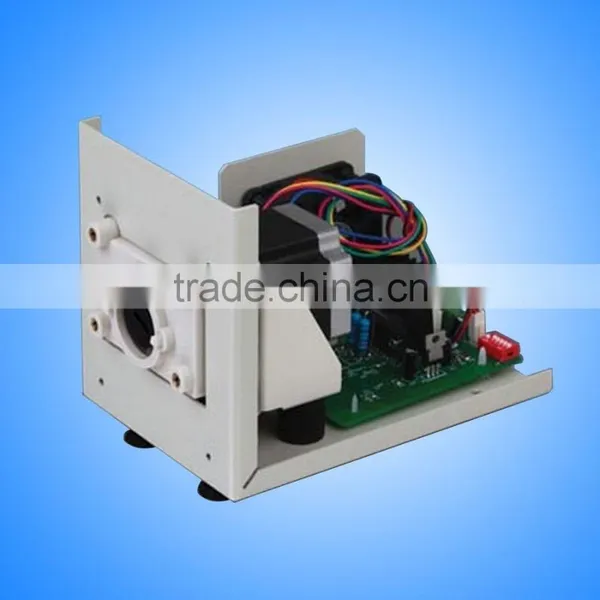

High Quality OEM Peristaltic Pump

• Multi-control modes, several pump head are suitable for T300 OEM peristaltic pump.
• Ideal OEM peristaltic pump for lots of instrument.

• Soleplate or panel installation.

Specification:

• Speed: ≤300rpm
• Speed resolution:  1rpm
• *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
• *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.

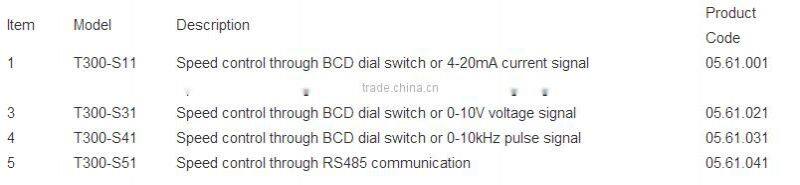

• *BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
• *External speed control (optional):

    4-20mA corresponding to 0-300rpm

    0-5V corresponding to 0-300rpm

    0-10V corresponding to 0-300rpm

    0-10kHz corresponding to 0-300rpm

• **Communication pump ID: Pump ID range is 1-30, 31 is broadcast address.
• **Baud rate: 1200dps or 9600dps optional
• Dimension (LxWxH): 185×120×136
• Relative humidity: <80%
• Operating temperature: 0 to 40°C
• Power supply: DC24V

Note: Items with * mean dial switch combine with external signal. Items with ** mean RS485 functions only.

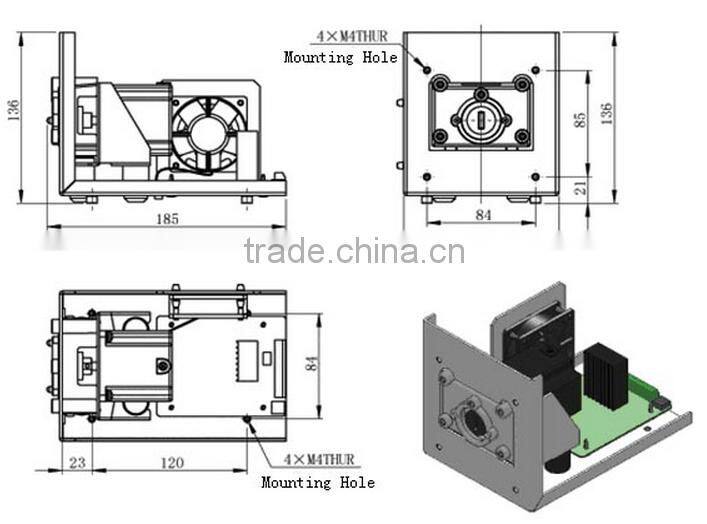

Installation drawing:













 Protective Box & Carton

We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.
