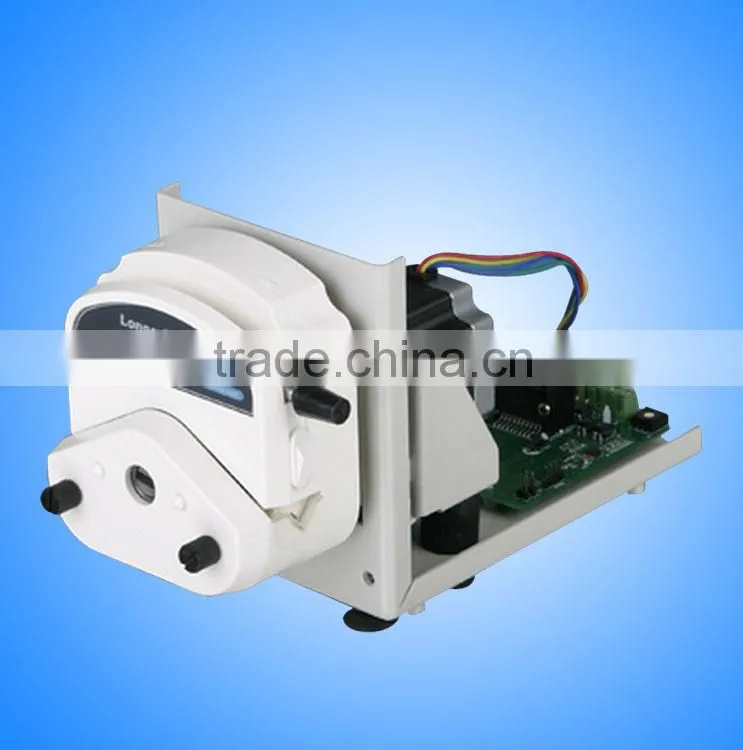

High Quality Multi-Control OEM Peristaltic Pumps

Name: High Quality Multi-Control OEM Peristaltic Pumps
Brand: Longer
SKU: 109014235
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Longer

Model Number:

T100

Beijing Mingbofei Science Technology Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin & Shanghai & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Longer

Model Number T100

Theory Other, Peristaltic Pump

Structure Other, Peristaltic Pump

Usage Other, OEM Peristaltic Pump

Power Electric

Fuel Other, Electric

Application Other, Peristaltic Pump

High Quality Multi-Control OEM Peristaltic Pumps

Product Description

Multi-control modes, several pump head are suitable for T100 OEM peristaltic pump.
Ideal OEM peristaltic pump for lots of instrument.

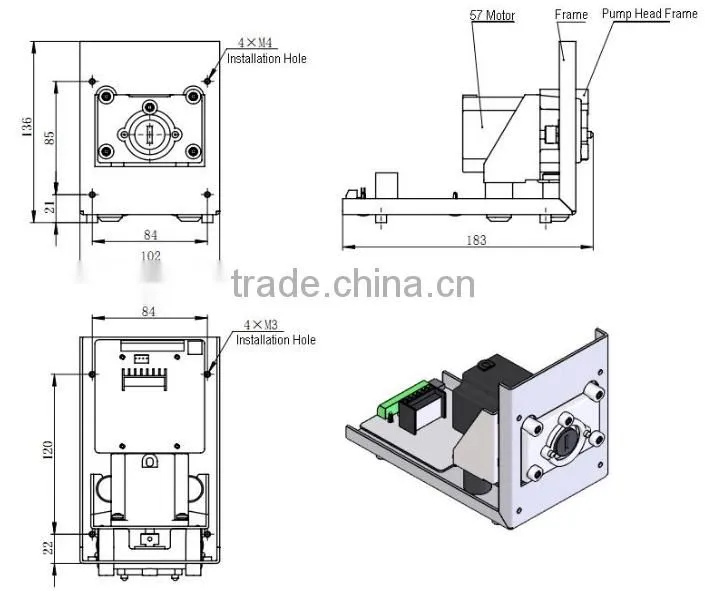

Soleplate or panel installation.

Specification:

Speed: ≤100rpm
Speed resolution: 0.1rpm
*Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
*Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
*BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
*External speed control (optional):

4-20mA corresponding to 0-100rpm

0-5V corresponding to 0-100rpm

0-10V corresponding to 0-100rpm

0-10kHz corresponding to 0-100rpm

Note: Items with * mean dial switch combine with external signal. Items with ** mean RS485 functions only.

Pump Configuration:

Product Type	Product Code	External Control Mode
T100-S16	05.59.02A	Dial switch combine with external signal (4-20mA)
T100-S17	05.59.12A	Dial switch combine with external signal (0-5V)
T100-S18	05.59.22A	Dial switch combine with external signal (0-10V)
T100-S19	05.59.32A	Dial switch combine with external signal (0-10kHz)
T100-S102	05.59.42A	RS485 communication

Flow Rates Table:

Pump Head	Tubing	Max. Flow Rate
YZ1515X,YZⅡ15	13#, 14#, 19#, 16#, 25#, 17#18#	380mL/min
YZ2515X,YZⅡ25	15#, 24#	270mL/min
DG-1(6), DG-2(6)	I.D.≤3.17mm Thickness 0.8mm-1.0mm	48mL/min (single channel)
DG-1(10), DG-2(10)	I.D.≤3.17mm Thickness 0.8mm-1.0mm	48mL/min (single channel)
FG15-13	13#, 14#, 19#, 16#, 25#, 17#	300mL/min
FG25-13	15#, 24#	300mL/min
DMD15-13-B	2x13#, 4x13#, 2x14#, 2x19#(Silicone or PharMed) 2x16#, 2x25#(silicone)	350mL/min
BZ15-13-A	14#	25mL/min
BZ15-13-B	16#	80mL/min
BZ15-13-C	25#	160mL/min
BZ15-13-D	17#	270mL/min
BZ25	24# (silicone)	270mL/min
