60ton Hydraulic Universal Tester Price
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | MTS | Model Number: | CHT4305 |
Power: | Hydraulic | Usage: | Universal Testing Machine |
Product Description

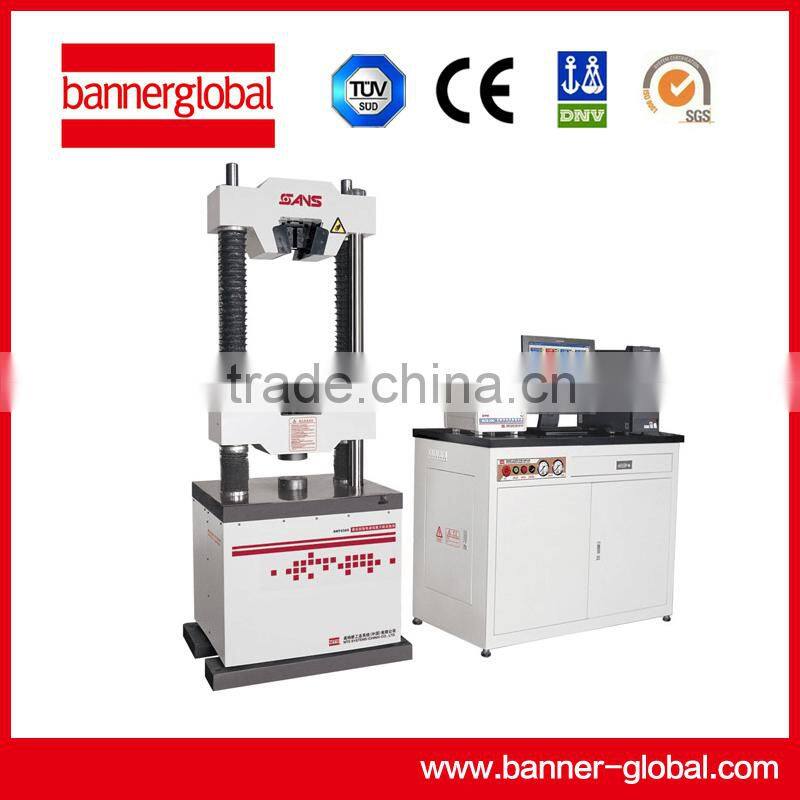

60ton Hydraulic Universal Tester Price
300kN hydraulic universal testing machine with full digital closed-loop control system, can achieve load, displacement, deformation of the three closed-loop control requirements, control mode can be arbitrary combination, smooth switching, 228-2002 GB/T metal materials, the test method is applied to metal materials, steel, screw steel and fasteners and other related standards, the results parameters (need to configure the corresponding fixture or deformation measuring device); software to meet the GB/T50081-2002, GB/T17671-1999, concrete specimens of the compressive test, flexural test (need suitable range); software to meet 232-1999 GB/T.
Application industry:
Measurement and quality control; metallurgical steel; mechanical manufacturing; electronic and electrical appliances; automobile production; wire and cable; civil aviation; high school; Scientific Research Institute; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical industry.
Technical parameters:
MTS Hydrualic Universal Testing Machine, 600kN Universal Testing Machine | ||
Specification model | CHT4305 | |
Maximum test force (kN) | 300 | |
Test machine accuracy rating | 1 | |
Relative error of test force | ±1% | |
Test force measurement range | 1%-100%FS | |
Deformation (strain gauge) measurement range | 1%-100%FS | |
Relative error of deformation | ±1% | |
Deformation resolution | Maximum deformation 1/300000 | |
Piston moving speed range | 0-200mm/min | |
Column number | 4 | |
Effective distance between columns (mm) | 405 | |
Tensile jaw maximum spacing (mm) | 520 | |
Maximum compression space (mm) | 520 | |
Clip holding range (mm) of circular specimen holder | φ10-φ20 φ20-φ32 | |
Allow extended configuration of threaded steel specimen specifications | φ6-φ14 φ16-φ22 | |
Plate specimen holder thickness (mm) | 2-13 13-25 | |
Pressing plate size (mm) | φ120 | |
Piston stroke (mm) | 150 | |
Host size (length x width x height mm) | 820×570×1955 | |
Oil source dimensions (length x width x height mm) | 1150×600×900 | |
Total power (kw) | 5(Three phase five wire system AC380V 50Hz) | |
Can be extended to configure bending fixture to roll | Center distance (mm) | 30—350 |
Rolling diameter (mm) | 3—65(match) | |
Weight(kg) | 1500 |
Shandong Banner International Trade Co., LTD., is your most reliable test helper in material testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked in MTS Systems Corporation more than ten years and provided solutions for various demanding and extremely complex material testing in many fields of China. Our goal is to create the best test experience for customers by providing the best quality products, professional technical support and world-class service to ensure accuracy, repeatability and reliability of test data.
Our product catalog:
Electronic universal testing machine
Hydraulic universal testing machine
Electronic torsion test machine
Tensile testing machine
Pressure testing machine
Pendulum impact testing machine
Packed by standard export fumigated wooden cases.
Ship from Qingdao port, is expected to arrive about 30days
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , T/C, Western Union,MoneyGram or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
