Bending testing machine for brick, stone, cement, concrete and other materials
Equipment overview:
CBT1104 autoclaved flyash brick flexural testing machine is the combination of electronic technology and mechanical transmission of new material test machine. It has broad accurate loading speed and stress range, the measurement and control of load and displacement have higher accuracy and sensitivity, can also be the constant loading speed, constant displacement automatic control test.
This series is mainly used in the test load is lower than 10kN of autoclaved lime sand brick test.
Main function:
Specifically designed to test autoclaved flexural strength of flyash brick materials to meet gb11945-1999 "the vapor pressure flyash brick" and the wall brick standard test method for "bending test requirements, but also to meet the requirements of ISO and ASTM standards for the test of the same material.
Main features:
1: the use of high-speed DSP platform, its high integration, powerful control, data processing ability, high reliability, is the use of other processors can not match the test machine.
2: can carry on the test force, the displacement and so on rate control and maintain.
USB1.1 3: communication, communication rate is 12Mb/s, the use of full speed mode, bulk transfer mode.
4: system board uses 4 layers of PCB unique anti interference routing method, strong anti-interference ability.
5: in addition to the power interface, the other interfaces are the standard USB type interface, plug and play interface such interface can be used to achieve hot swap, that is, plug and play function. Interface features can be set up by software online. The interface neat layout reasonable, convenient plug.
5: the whole control system has a very high cost, high reliability.
7: the whole test process is controlled by microcomputer, real-time dynamic display of load, displacement, test speed and test curve.
8: uses microcomputer for data processing and analysis. The test results can be saved automatically. After the end of the experiment, the test curve can be re - up.
9: full Chinese Windows platform under the test software, with a strong data and graphics processing functions, can print out the complete test report and test curve.
10: have the perfect protection, overload protection, emergency stop and other safety protection function.
Meet standards:
GB11945-1999 "autoclaved sand lime brick wall brick" and "test method"
Application industry:
Measurement and quality control; high school; Research Institute; commodity inspection and arbitration, technical supervision departments; building materials.
Original configuration:
Autoclaved lime sand brick bending device 1 sets
Scalable configuration:
Protective cover
Technical parameters:
Model |
CBT1104 |
|
Measurement parameters |
Maximum test force |
10kN |
Accuracy class |
1 |
|
Test force measurement range |
0.2%-100%FS |
|
Maximum stroke |
50mm |
|
Maximum speed |
50mm/min |
|
Maximum calibration space |
265mm |
|
Control parameter |
Force control range |
0.02-5 %Fs/S |
Upper and lower pressure head spacing |
70mm |
|
Two column net distance |
330mm |
|
Distance of the lower supporting roller |
Max 200mm(Adjustable) |
|
Other |
Motor power |
400W/220V |
Machine size |
470×370×740mm |
|
Host weight |
150kg |
|

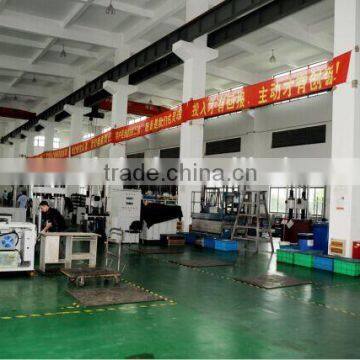

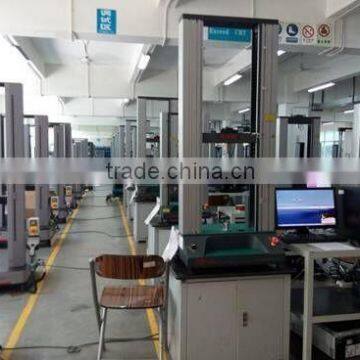

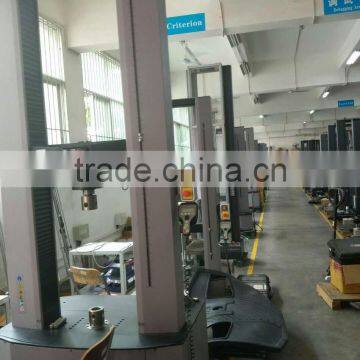

A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
