Tensile Stress Machine for Tensile Stress Test

  tensile stress machine for tensile stress test

Equipment overview:

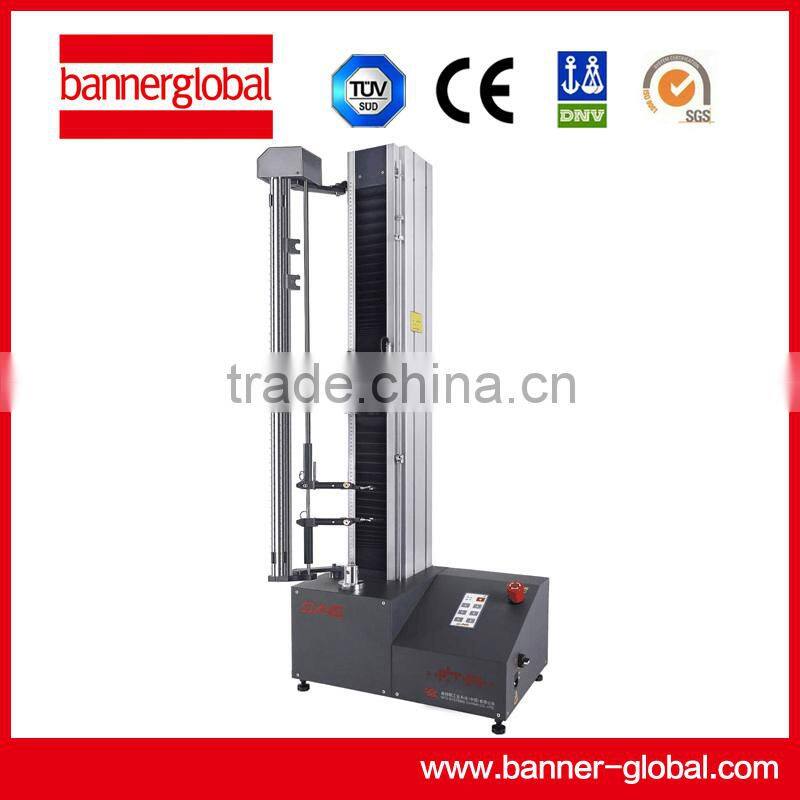

CMT2000 series microcomputer controlled electronic tensile testing machine is a new type of material testing machine with electronic technology and mechanical transmission. It has a wide range of loading speed and measuring range. It has high accuracy and sensitivity, and can also carry out automatic control test with constant velocity, constant velocity and constant velocity.

The series models are mainly used in the test load of non metallic materials, which is less than 5kN.

Main function:

Test of tensile, peeling, tearing, and special test of a variety of non metallic materials.

Main features:

1: the use of high-speed DSP platform, its high integration, powerful control, data processing ability, high reliability, is the use of other processors can not match the test machine.

2: the full digital closed-loop (force, deformation, displacement) control system based on neuron adaptive PID algorithm is used to realize force and displacement of the whole digital closed-loop control. The control loop can be automatically switched.

3: can carry on the test force, the displacement and so on rate control and maintain.

4: closed loop control parameters on-line identification.

5: high precision 24Bit data acquisition system, high resolution, can be extended to 8 AD acquisition.

USB1.1 6: communication, communication rate is 12Mb/s, the use of full speed mode, bulk transfer mode.

7: system board uses 4 layers of PCB unique anti interference routing method, strong anti-interference ability.

8: in addition to the power interface, the other interfaces are the standard USB type interface, plug and play interface such interface can be used to achieve hot swap, that is, plug and play function. Interface features can be set up by software online. The interface neat layout reasonable, convenient plug.

9: the whole control system has a very high cost, high reliability.

10: the whole test process is controlled by microcomputer, and the load value, displacement, deformation, test speed and test curve are displayed in real time.

11: uses microcomputer for data processing and analysis. The test results can be saved automatically. After the end of the experiment, the test curve can be re - up.

12: full Chinese Windows platform under the test software, with a strong data and graphics processing functions, can print out the complete test report and test curve.

13: have the perfect protection, overload protection, emergency stop and other safety protection function.

Meet standards:

"Electronic universal testing machine 16491-1996 GB/T"

Application industry:

Measurement of quality inspection, rubber, metallurgy, steel, machinery, electrical appliances, automobile, textile, chemical fiber, wire and cable, packaging materials and food.

Original configuration:

Drawing jig 1 set

Scalable configuration:

Large deformation (rotating or stationary), the test sample can be provided by the test standard or test sample selection of fixture or special design of the fixture and accessories, the cost of the other.

Technical parameters:
