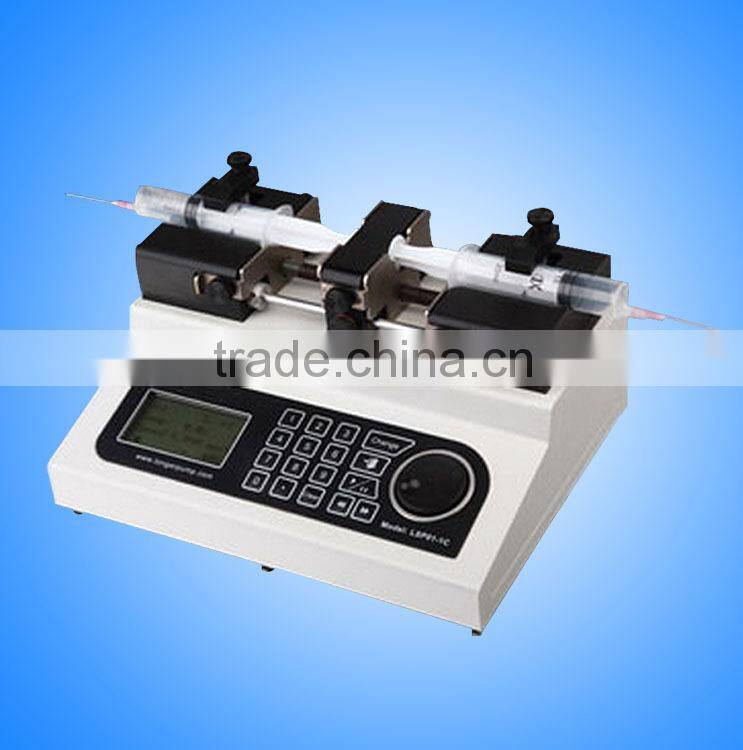

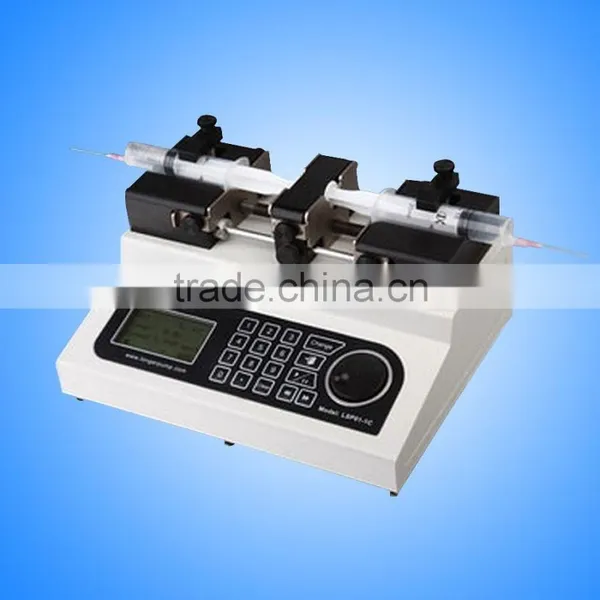

Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1C

Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1C thumbnail-1
Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1C photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Longer
Model Number:
LSP01-1C
Contact Supplier Request Quote Chat Now
Beijing Mingbofei Science Technology Limited Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin & Shanghai & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Longer
Model Number LSP01-1C
Theory Other, Syringe Pump
Structure Other, Laboratorial Syringe Pump
Usage Other, Laboratorial Syringe Pump
Application Other, Laboratorial Syringe Pump
Power Other, AC 100 - 240 V

Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1C



Product Description

This labratorial syringe pump is a two-syringe push-pull syringe pump. The acceptable syringe specification is from 10μL to 10mL. Suitable for high accuracy and small flow rate liquid continuously transferring.


   Disinctive Design Laboratorial Push & Pull Syringe Pump LSP01-1C









Specifications:





  • Syringe size: 10μL-10mL
  • Linear force: 9 Kg
  • Advance per mircostep: 0.156 μm 1/16step
  • Infusion volume per microstep: 0.026μL (10mL syringe 1/16 step)
  • Max. step rate: 6933 1/16step /sec
  • Min. step rate: 16 1/16step /30sec
  • Max. linear rate: 65 mm/min
  • Min. linear rate: 5μm/min
  • Flow rates: 0.831 nL/min-10.84mL/min
  • Accuracy: ≤0.5% error in the condition of
  • Setting mode: Rotary coded switch and membrane keypad
  • Display: 128×64 graphic LCD
  • Power supply: AC100-240V
  • Operating condition: Temperature 5℃-40℃, relative humidity <80%.
  • Dimensions: 280×220×140(mm)
  • Weight: 3.6 kg











Parameters:



Type Product Code Syringe Syringe ID (mm) Flow Rate (μl/min-ml/min)
LSP01-1C 0503421 10μl 0.50 0.001-0.0128
25μl 0.80 0.0025-0.0327
50μl 1.10 0.0048-0.0618
100μl 1.60 0.0101-0.1307
250μl 2.30 0.0208-0.2701
500μl 3.25 0.0415-0.5392
1ml 4.72 0.0875-1.1373
2ml 9.00 0.3181-4.1351
5ml 13.10 0.6739-8.7608
10ml 16.60 1.0821-14.068









 Feasures:



  • Syringe Selection: The syringe can be selected in the manufacturer table which includes manufacturer, material and size or input the inner diameter of the syringe barrel directly
  • Easy to operate: Combining big screen LCD display with rotary encoder switch and membrane keypad makes the operation simple and prompt.
  • Working Mode: Push-pull
  • Memory Function:

1. The parameters are saved in EEPROM. The parameters don't need to be reset when power returns after an interruption.

2. In flow rate mode, the pump remains running or stops according to the setting parameters when power returns after an interruption

  • Protection Function: The pump will stall and give an alarm when the drive structure of the pump is blocked
  • Communication Function: Realize computer control through RS485 communication interface
  • External Control Function: Input/output control
  • Calibration Function: Acquire accurate volume through calibration
  • Syringe Protection: Adjust syringe rest to prevent syringe from damaging









Packaging & Shipping

Protective Box & Carton





Our Services



We aim to provide professional services to meet consistently customer's requirements keeping quality & cost on priority. OEM is highly welcome.



Company Information



We, Beijing Mingbofei Science Technology Limited Company, is China-based professional supplier of laboratory, commercial and industrial instruments and equipment. Our products cover Laboratory Analytical Balances, Commercial and Industrial Weighing Scales, Laboratory Centrifuges, Optical Cables, LED Lights, Laboratorial &  Industries Peristaltic Pump,  Syringe Pump,  Gear Pump and Accessories.



Since incorporation, we've been committed to provide the state-of-the-art products and excellent services for clients at competitive price. Up to now, we have established cooperation with clients from North America, South America, Southeast Asia, Mideast, Africa, and got their high praise of our products and services. Our clients include importers, distributors, wholesalers, end-users.
