Specifications
This machine has advanced design, high yield, good plastification, low energy consumption,low noise, stable operation and other.
Configuration parameter:
1, Supply frame:PN-400-500, meet the wire disc
2, Lead frame:the five round wire
3, Main engine
Reduction box;
Screw barrel material:38CrMoAlA,nitrogen treatment,hardness Hv>740,up to the national standard;
Extruding screw diameter: Φ65mm;
Ratio of screw: 25:1;
Main engine power: 15kw;
Speed Type: electromagnetic governed speed;
The temperature control section: 5 areas;
Heating power: 13kwheating ring;
Temperature control table: Touch type digital intelligent meter;
The host centre height: 1m;
The screw speed: 8-80r/min;
Theory of production:100~150kg/h
4, Mould:The connecting sleeve, circular; die head pay 1 (specific requirements for production according to user requirements);
5,The water tank (stainless steel) 4 meters;
6,Traction machine: with a variable speed motor, Φ 400-500 wheeled tractor;
7, Winding machine: the optical lever cable, torque motor winding, to adapt to the PN400-500 disk, adapt to 1-35 square wire.

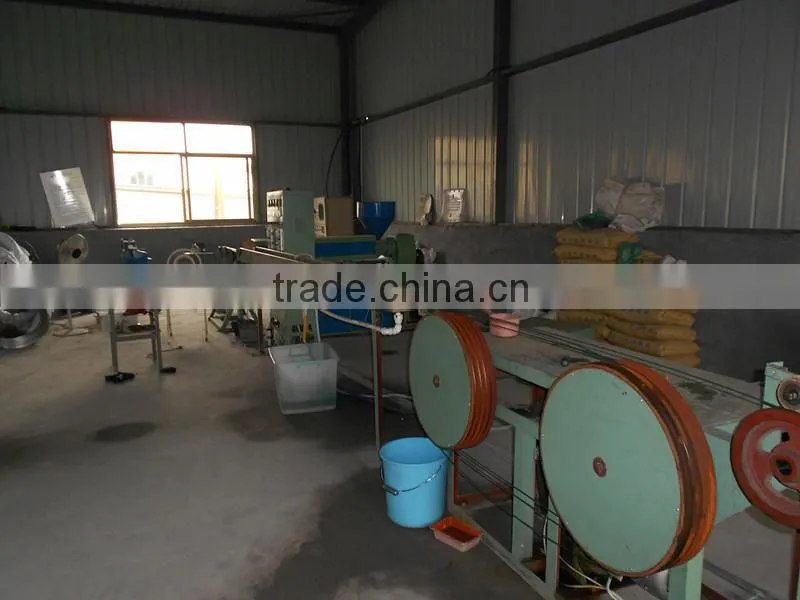

Machine pictures:
Jiangyin Minfa Machine Manufacturing Co., Ltd. specialized in manufacturing wire mesh machine, our leading products are LNWL-23, LNWL33, LNWL43 of Heavy hexagonal wire mesh machine, it also known as gabion mesh machine, gabion mesh machine,and it can produce a hexagonal wire mesh wide from 2300mm to 4300mm and weaving wire by up to 3-5 millimeter with mesh size 60×80mm, 80×100mm, 100mm×120mm and with material of coated plastic and galvanized.
We support manufacturing accessories for hexagonal wire mesh machine,such as the warping machine,Coiling machine; Spiral coiling machinearound etc.
In order to meet customer demand, We supply common hexagonal wire mesh machine, There are 1/2',5/8',3/4',1',1/1/4', 1/1/2', 2', 3' in varying specifications. also we manufacture Chain Link Fence Machine. Warmly welcome the new old customers come and cooperate.
