Help CenterPlastic Extrusion Machine
Related Products
Specifications
This machine has advanced design, high yield, good plastification, low energy consumption,low noise, stable operation and other.Configuration parameter:
1, Supply frame:PN-400-500, meet the wire disc
2, Lead frame:the five round wire
3, Main engine
Reduction box;
Screw barrel material:38CrMoAlA,nitrogen treatment,hardness Hv>740,up to the national standard;
Extruding screw diameter: Φ65mm;
Ratio of screw: 25:1;
Main engine power: 15kw;
Speed Type: electromagnetic governed speed;
The temperature control section: 5 areas;
Heating power: 13kwheating ring;
Temperature control table: Touch type digital intelligent meter;
The host centre height: 1m;
The screw speed: 8-80r/min;
Theory of production:100~150kg/h
4, Mould:The connecting sleeve, circular; die head pay 1 (specific requirements for production according to user requirements);
5,The water tank (stainless steel) 4 meters;
6,Traction machine: with a variable speed motor, Φ 400-500 wheeled tractor;
7, Winding machine: the optical lever cable, torque motor winding, to adapt to the PN400-500 disk, adapt to 1-35 square wire.

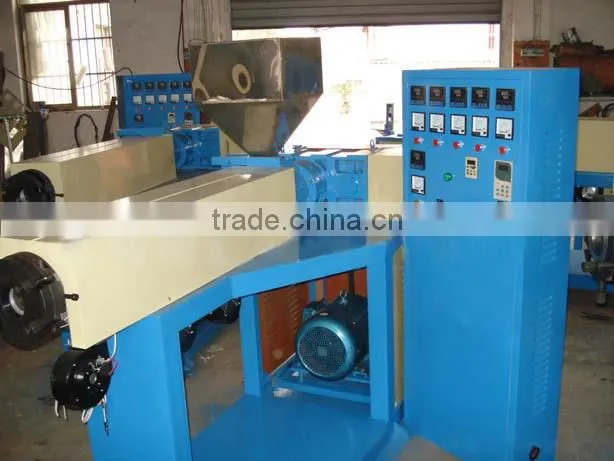

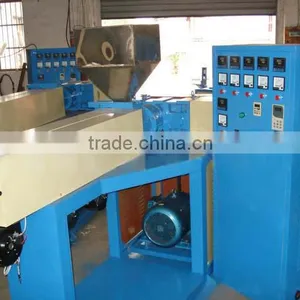

Machine pictures:
