Specifications
Cummins diesel generator1 high quality goods with factory price
2 Production line: diesel generator set :2kw~600kw
factory price Cummins perkins diesel generator
Our advantages:
1 Wide range:diesel generator ,gasoline generator ,alternator and rotary tiller.
2Our production line : generator set0.65kw~600kw ,including Cummins ,Perkins,Deutz ,Weifang engine,Stamford,Leroy somer alterantor .We have gasoline generator 0.65kw~8kw.
3Our Commitment:offering high quality ,moderate price with good after sale service.
4our goal:to be your long-standing and reliable suppler
5 excellent tech team with professional skills.
Give me a little bit of time, a little bit of patience, a little bit of faith, to show you how sincere and qualified we are
diesel generator specification
| Model | WY-CM38(S) | ||
| Cont.AC outpu(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Voltage(V) | 220/380 | ||
| Frequency(Hz) | 50 | 60 | |
| Power factor | 0.8/1 | ||
| GENERATOR | Model | WY184H | |
| Cont.AC output(KW) | 30 | 33 | |
| Max.output(KW) | 33 | 36 | |
| Excitation SyStem | Brushless excitation | ||
| InSulation Class | H | ||
| ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | ||
| ENGINE | Model | 4BT3.9-G2 | |
| Number of cylinders | 4L | ||
| Bore×stroke(mm) | 102×120 | ||
| Compression Ratio | |||
| Displacement(L) | 3.9 | ||
| Specific fuel consumption (g/kW.h) |
≤209 | ||
| Rated speed(r/min) | 1500 | 1800 | |
| Cont.output(kW) | 36 | 40 | |
| Max.outout(kW) | 40 | 44 | |
| Starting system | Electric | ||
| Cooling method | Closed circle water-cooled | ||
| Starting battery | 12V/120AH | ||
| Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | ||
| ing time(h) | 12 | ||
| Overall dimensions(mm) | 2250*950*1150 | ||
| Package dimensions(mm) | 2350*1000*1220 | ||
| Net weight(kg) | 1080 | ||
| Dry weight(kg) | 1130 | ||
Packing data
| CONTAINER | Capacity | Recommended | |||||
| Load Volume | |||||||
| Nominal | Length | Width | Height | Cubic | Cubic | Cubic | Cubic |
| Dimension | Feet | Meter | Feet | Meter | |||
| External | 20' | 8' | 8' 6" | ||||
| 6.096 m | 2.438 m | 2.591 m | |||||
| Internal | 19' 4.25" | 7' 8.625" | 7' 10" | 1170 cft | 1000 cft | ||
| 5.899 m | 2.353 m | 2.388 m | 33.131 cbm | 28 cbm | |||
| External | 40' | 8' | 8' 6" | ||||
| 12.192 m | 2.438 m | 2.591 m | |||||
| Internal | 39' 5.375" | 7' 8.625" | 7' 10" | 2385 cft | 2050 cft | ||
| 12.024 m | 2.353 m | 2.388 m | 67.535 cbm | 58 cbm | |||
| External | 40' Hicube | 8' | 9' 6" | ||||
| 12.192 m | 2.438 m | 2.896 m | |||||
| Internal | 39' 5.375" | 7' 8.625" | 8' 10" | 2690 cft | 2350 cft | ||
| 12.024 m | 2.353 m | 2.692 m | 76.172 cbm | 66 cbm | |||

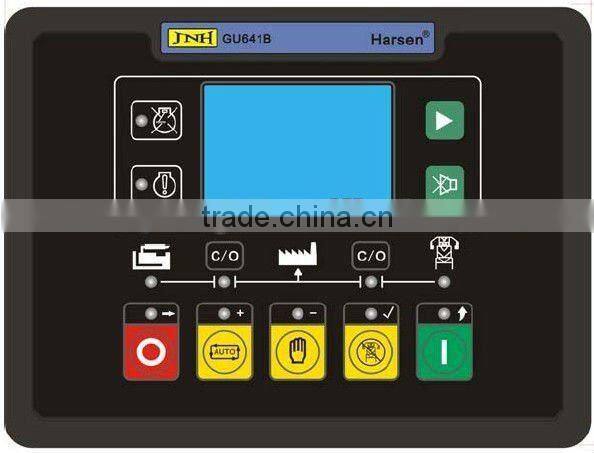

Controller (Control panel)
(Digital and intelligent) LED Screen and touch Buttons’
Main Functions of 400kw/500kva diesel generator set
1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc
Optional Accessories of Diesel generator set
1. ATS (Automatic Transfer switch);
Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.
And ATS have the function of AMF (automatic Main power failure)
2. MCCB (Molded case circuit breaker);
It can protect the loading machine and the diesel generator.
3. Battery charger (float charger);
When the diesel generating set hasn’t been used for a long time, the batteries will be no power, in that way, you can’t start the generator. But the battery charger can charge the batteries from main power.
4. Extra daily fuel tank;
It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.
5. Paralleling system;
This system can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel;
Which can control the generating set by computer, if use a RS484 or RS232 digital cable to connect the diesel generator to the computer.
7. Water separate (additional cooling system);
If the ambient temperature is too high, it will be harmful to the generating set. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.
8. Spare Parts of Cummins engine;
All the spare parts of each Cummins engine are supplied at very competitive price
