Specifications
cummins diesel generator1our goods is received well not only among customers,but also among fellow-manufacturer
2best price
Cummins diesel generator
1sinlge or3 phase
2,1500/1800rpm
3.CE,ISO ,40kw
4silent type,380v,100%copper
Specification
| Model | WY-CM50(S) | WY-CM57(S) | |||
| Cont.AC outpu(KW) | 40 | 45 | 45 | 50 | |
| Max.output(KW) | 45 | 50 | 50 | 55 | |
| Voltage(V) | 220/380 | 220/380 | |||
| Frequency(Hz) | 50 | 60 | 50 | 60 | |
| Power factor | 0.8 | 0.8 | |||

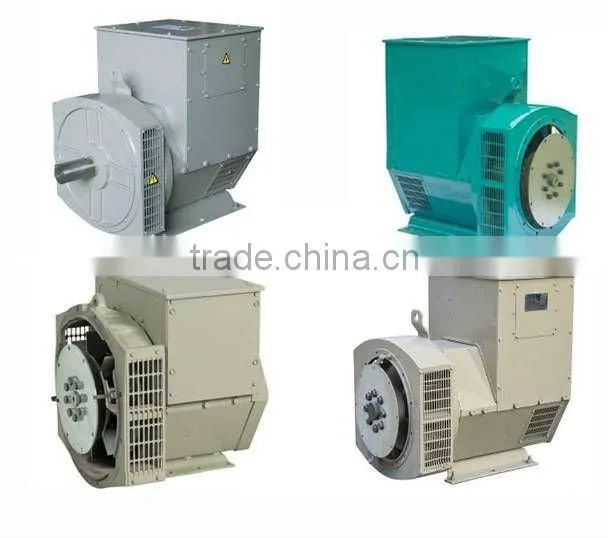

| GENERATOR | Model | WY224D | WY224E | ||
| Cont.AC output(KW) | 40 | 45 | 50 | 55 | |
| Max.output(KW) | 45 | 50 | 55 | 60 | |
| Excitation SyStem | Brushless excitation | Brushless excitation | |||
| InSulation Class | H | H | |||
| ConStruction Type | SAE engine adaptor (single-bearing or double-bearing) | SAE engine adaptor (single-bearing or double-bearing) | |||
| ENGINE | Model | 4BTA3.9-G2 | 4BTA3.9-G2 | ||
| Number of cylinders | 4L | 4L | |||
| Bore×stroke(mm) | 102×120 | 102×120 | |||
| Compression Ratio | |||||
| Displacement(L) | 3.9 | 3.9 | |||
| Specific fuel consumption (g/kW.h) |
≤209 | ≤209 | |||
| Rated speed(r/min) | 1500 | 1800 | 1500 | 1800 | |
| Cont.output(kW) | 50 | 55 | 50.0 | 55 | |
| Max.outout(kW) | 55 | 60 | 55 | 60 | |
| Starting system | Electric | Electric | |||
| Cooling method | Closed circle water-cooled | Closed circle water-cooled | |||
| Starting battery | 12V/120AH | 12V/120AH | |||
| Gensetfor protection | The protection of low accumulator,overspeed,high water temperature,low press-gas | The protection of low accumulator,overspeed,high water temperature,low press-gas | |||
| ing time(h) | 12 | 12 | |||
| Overall dimensions(mm) | 2250*950*1150 | 2250*950*1150 | |||
| Package dimensions(mm) | 2350*1000*1220 | 2350*1000*1220 | |||
| Net weight(kg) | 1120 | 1150 | |||
| Dry weight(kg) | 1170 | 1200 | |||
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. 1m<80 dB / 7m<70dB
